VT-MACAS-1X

Bosch Rexroth Analog Position Module Controller VT-MACAS-1X

• Component series 1X

Features:

• Suitable for controlling valves with installed electronics for position and velocity control
• Enable input
• Area adjustment cylinder
• Design: Module for snapping onto carrier rails
• Interfaces short-circuit-proof
• Test points on front plate
• Compensation step that can be switched off
• Position: PT1 control
• Cable break detection for actual value cable
• Velocity control possible in connection with tachometer (speed indicator): PI control

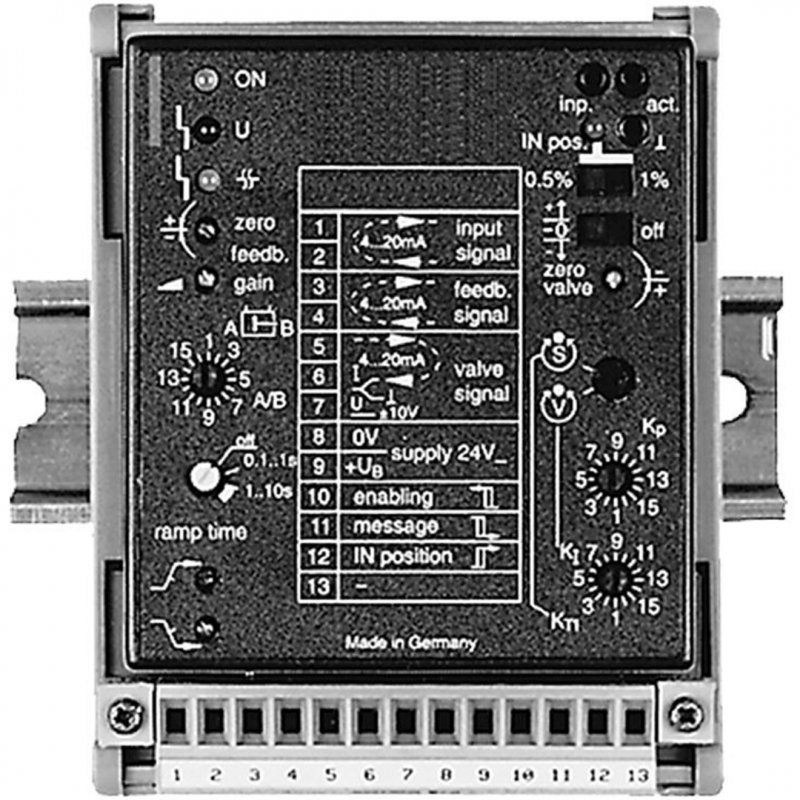

Notice:

The photo is an example configuration. The delivered product differs from the figure.
