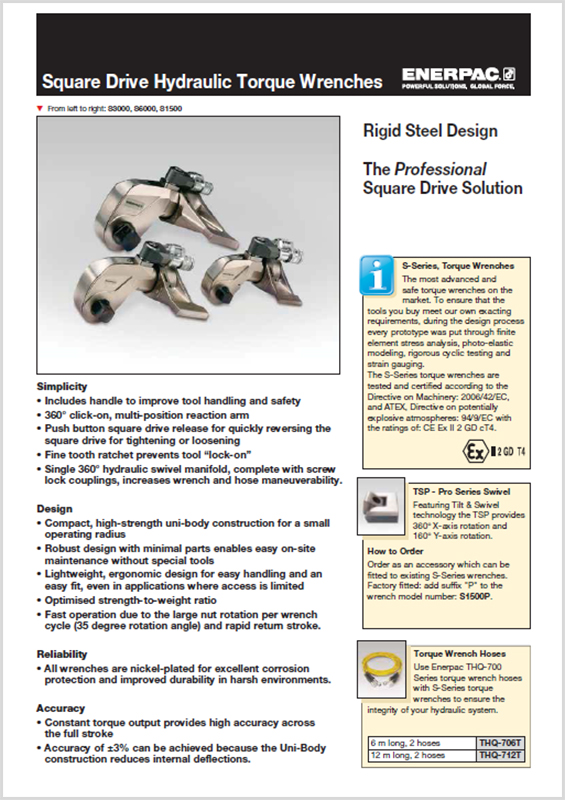

Enerpac S-Series Square Drive Hydraulic Torque Wrenches

Enerpac S-Series Square Drive Hydraulic Torque Wrenches

• Max. Torque: 34.099 Nm
• Max. Pressure: 690 bar

Simplicity:

• Includes handle to improve tool handling and safety
• 360° click-on, multi-position reaction arm
• Push button square drive release for quickly reversing the square drive for tightening or loosening
• Fine tooth ratchet prevents tool “lock-on”
• Single 360° hydraulic swivel manifold, complete with screw lock couplings, increases wrench and hose manoeuvrability
• Optional Allen key drives 14-85 mm, 1/2 - 2 1/4 inch

Design:

• Compact, high-strength uni-body construction for a small operating radius
• Robust design with minimal parts enables easy on-site maintenance without special tools
• Lightweight, ergonomic design for easy handling and an easy fit, even in applications where access is limited
• Optimised strength-to-weight ratio
• Fast operation due to the large nut rotation per wrench cycle (35 degree rotation angle) and rapid return stroke.

Reliability:

• All wrenches are nickel-plated for excellent corrosion protection and improved durability in harsh environments.
• Tested and certified according to the Directive on Machinery: 2006/42/EC
• ATEX tested and certified according to the Directive on potentially explosive atmospheres: 94/9/EC with the ratings of: CE Ex II 2 GD cT4

Accuracy:

• Constant torque output provides high accuracy across the full stroke
• Accuracy of ±3% can be achieved because the Uni-Body construction reduces internal deflections
