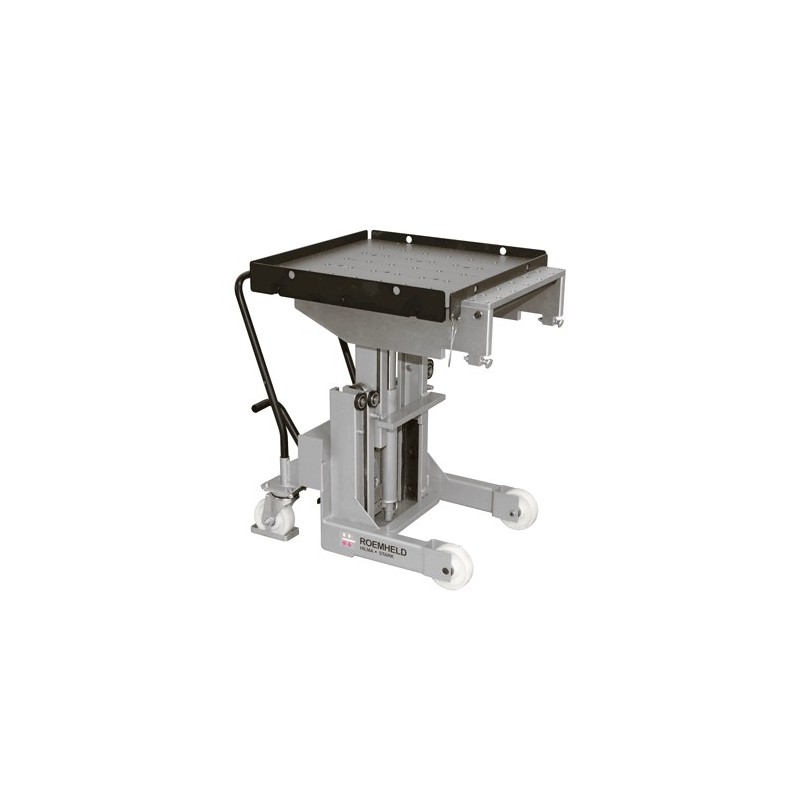

Die Changing Cart RW load capacity 1000 kg

Die Changing Cart RW load capacity 1000 kg - HILMA WZ 8.8901

• Max. load capacity: 1000 kg
• Lifting range for table height: 650 .. 1285 mm
• Table size: 720 x 720 mm

Advantages:

• Time-saving die change
• Material gentle transport
• Highest safety by automatic docking station and anti-slip protection
• Sturdy and scratch-proof ball table with hard-anodized surface
• Documentation and design in compliance with CE standards
• Exact positioning
• Exact height adjustment by precision lowering
• Improved ergonomics for the user
• Additional protection against falling down of dies by safety bars on all sides
• Safe positioning of the cart by pedal parking brake

Application:

Die changing carts RW facilitate the handling of heavy dies and enable dies weighing up to 1000 kg to be safely transported in an easy and time saving way.
All cart types are especially designed for pressing and punching dies as well as for injection and casting moulds.

Description:

Die changing carts RW are manually moved. The die changing table is equipped with ball inserts which facilitate the manual insertion of the dies. During the transport, the ball inserts are lowered and the die is protected against movement. In addition, the die is secured against falling down by safety bars at all sides of the die changing table.
The die changing table can be adjusted in height by means of a pedal-operated lifting unit. Precision lowering is effected by a pedal – additional precision lowering for lowering the lifting unit with millimetre accuracy.
For transport, the centre of gravity of the load must be positioned in the centre of the cart and the lifting columns must be completely lowered.
