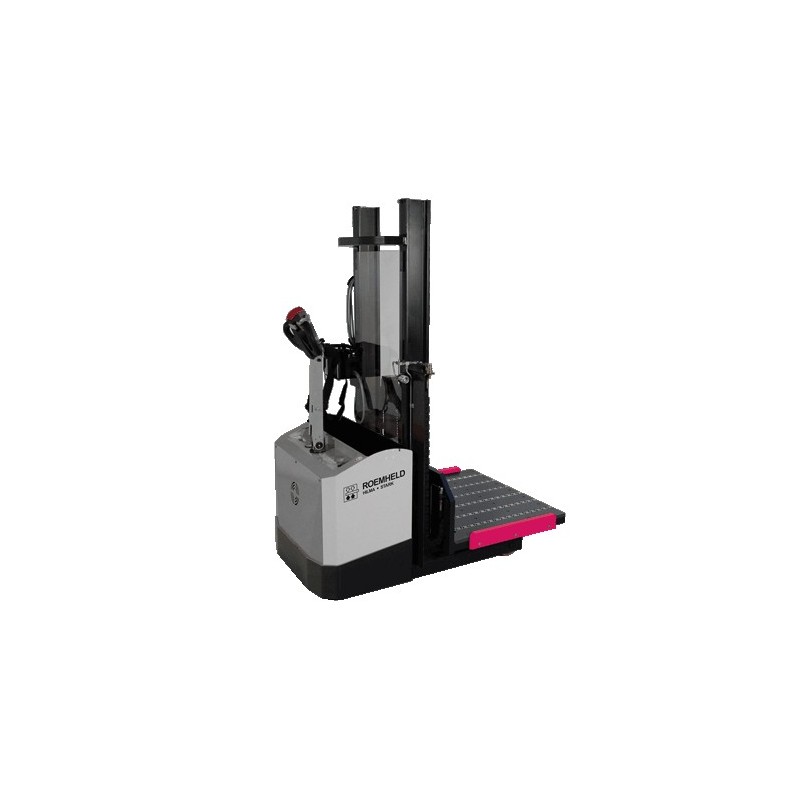

Die Changing Cart with Electric Drive RWA

Die Changing Cart with Electric Drive RWA - HILMA WZ 8.8902

• Max. load capacity: 1200 or 1600 kg
• Lifting range: 250 .. 1550/1650 mm
• Table size: 1000 x 800 mm
• 4 or 6 hydraulic ball bars

Advantages:

• Safe and gentle die transport of heavy dies
• Time-saving die change
• Integrated die changing table with hydraulic ball bars
• High safety by docking bars and lowerable ball bars
• Protection against falling down of dies by removable side bars
• Simple and central operation with multi-functional drawbar
• Multi-function display on the drawbar
• Robust vehicle technology
• Modular design with standard drive

Application:

The die changing cart RWA is used for the transport and the change of pressing and punching dies as well as injection and casting moulds up to a weight of 1600 kg.

Description:

The die changing cart RWA is an electrically driven walking and lifting cart, especially equipped for the transport and the change of dies. The electro-hydraulic lifting platform is designed as die changing table with integrated hydraulic ball bars, which facilitate the manual insertion of the dies onto the press table. During the transport, the balls are always lowered and the die is protected against movement.
A safety circuit ensures that the die changing cart can only be displaced with lowered ball bars. In addition, the die is secured on the lifting platform by removable front safety bars or side bars. For the transfer of the die to the press, the lifting platform is equipped with a protrusion.
