WE 6...H Series 7x
Directional spool valves with wet-pin DC voltage solenoids WE 6...H, 4/3, 4/2 and 3/2 direct operated for sub plate mounting
- Component series 7X
- Maximum operating pressure 315 bar
- Maximum flow 60 l/min
Products
Downloads
Description
| Part Number | Material Number | Number of Ports | Spring Return | Price | Add to Parts List |
|---|---|---|---|---|---|
| 3WE 6 A7X/HG24N9K4 | R901089244 | 3 main ports | With spring return | £368.26 £441.91 Inc. VAT |
|
| 4WE 6 G7X/HG24N9K4 | R901130747 | 4 main ports | With spring return | £476.75 £572.10 Inc. VAT |
|
| 4WE 6 Y7X/HG24N9K4 | R901089243 | 4 main ports | With spring return | £368.27 £441.92 Inc. VAT |
|
| 4WE 6 C7X/HG24N9K4 | R901089245 | 4 main ports | With spring return | £368.27 £441.92 Inc. VAT |
|
| 4WE 6 E7X/HG24N9K4 | R901087087 | 4 main ports | With spring return | £449.36 £539.23 Inc. VAT |
|
| 4WE 6 J7X/HG24N9K4 | R901089241 | 4 main ports | With spring return | £449.36 £539.23 Inc. VAT |
|
| 4WE 6 D7X/OFHG24N9K4 | R901130746 | 4 main ports | Without spring return with detent | £505.21 £606.25 Inc. VAT |
|
| 4WE 6 HA7X/HG24N9K4 | R901133322 | 4 main ports | With spring return | £395.65 £474.78 Inc. VAT |
|
| 4WE 6 H7X/HG24N9K4 | R901130745 | 4 main ports | With spring return | £476.75 £572.10 Inc. VAT |
|
| 4WE 6 D7X/HG24N9K4 | R901087088 | 4 main ports | With spring return | £368.25 £441.90 Inc. VAT |
|

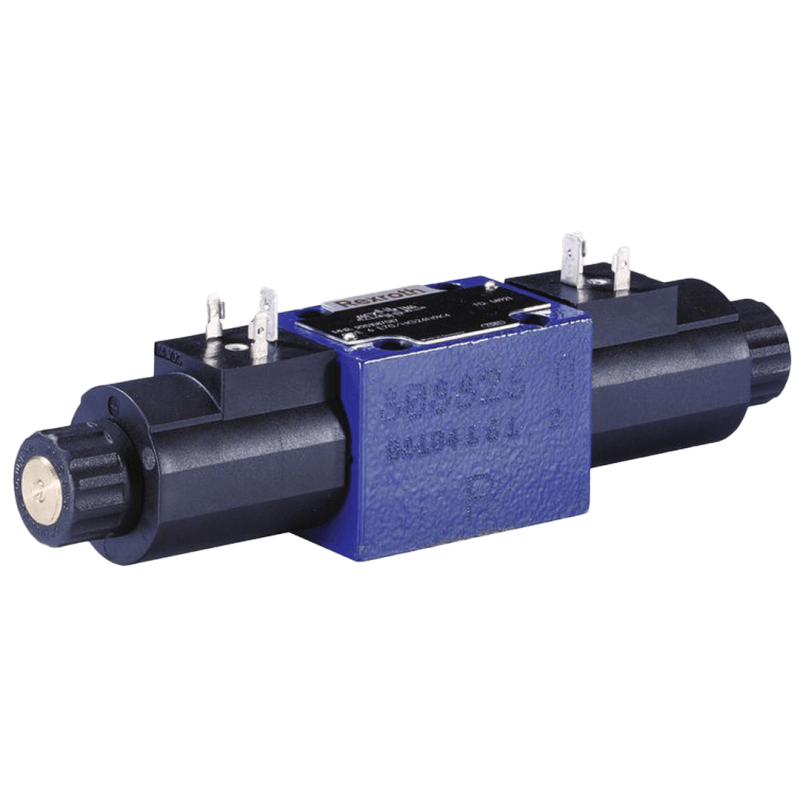

Directional Spool Valves with Wet-pin DC Voltage Solenoids WE 6...H
- Size 6
- Component series 7X
- Maximum operating pressure 315 bar
- Maximum flow 60 l/min
Features:
- 4/3-, 4/2- or 3/2-way version
- Standard version
- Porting pattern according to DIN 24340, form A
- Wet-pin DC solenoids
- Solenoid coil can be rotated
- The coil can be changed without having to open the pressure-tight chamber
- Electrical connection as individual connection
- Concealed manual override
| Quantity | Unit discount | You Save |
|---|
