5-.WE Size 10 Series 5x
Directional spool valves 5-.WE (5-chamber version), 4/3, 4/2 and 3/2 direct operated influencing the switching time for sub plate mounting
- 5-chamber version
- Size 10
- Component series 5X
- Maximum operating pressure 420 bar [6091 psi]
- Maximum flow 150 l/min [39.6 US gpm]
Description

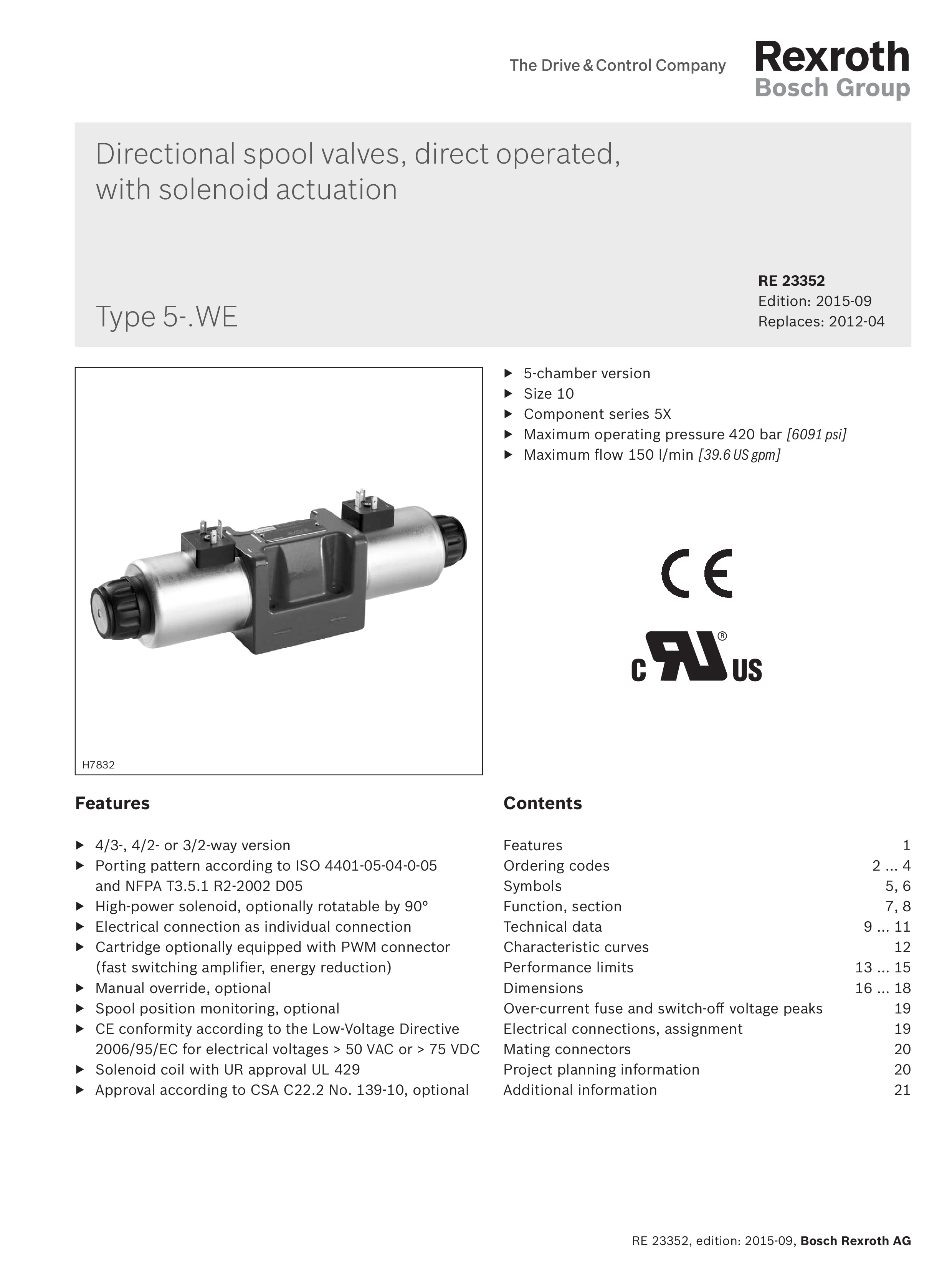

Downloads

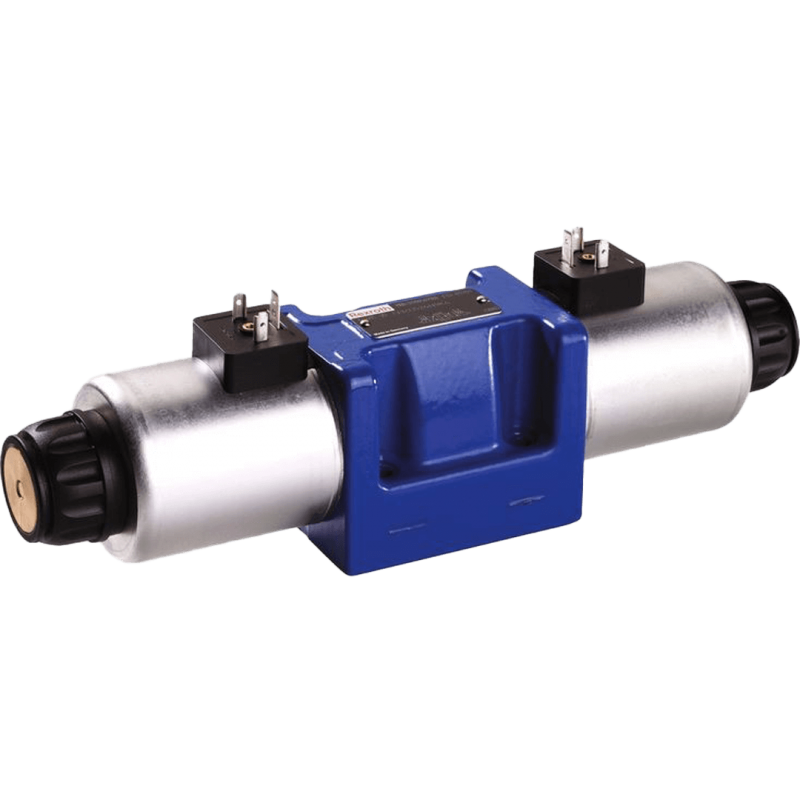

Bosch Rexroth Directional Spool Valves Influencing the Switching Time 5-.WE
- 5-chamber version
- Size 10
- Component series 5X
- Maximum operating pressure 420 bar [6091 psi]
- Maximum flow 150 l/min [39.6 US gpm]
Features:
- 4/3-, 4/2- or 3/2-way version
- Porting pattern according to ISO 4401-05-04-0-05 and NFPA T3.5.1 R2-2002 D05
- High-power solenoid, optionally rotatable by 90°
- Electrical connection as individual connection
- Cartridge optionally equipped with PWM connector (fast switching amplifier, energy reduction)
- Manual override, optional
- Spool position monitoring, optional
- CE conformity according to the Low-Voltage Directive 2006/95/EC for electrical voltages > 50 VAC or > 75 VDC
- Solenoid coil with UR approval UL 429
- Approval according to CSA C22.2 No. 139-10, optional
