WE 10...E Series 5x
Type WE direct operated directional spool valves with solenoid actuation 4/3-, 4/2- or 3/2-way versions
- Size 10
- Component series 5X
- Maximum operating pressure 350 bar
- Maximum flow: 160 l/min – DC
- 120l/min - AC
Products
Downloads
Description
| Part Number | Material Number | No-Show | Price | Add to Parts List |
|---|---|---|---|---|
| 4WE 10 EA5X/EG24N9K4/M | R901278775 | 0 | £627.52 £753.02 Inc. VAT |
|
| 4WE 10 J73-5X/EG24N9K4/A12M | R901341855 | 0 | £918.68 £1,102.42 Inc. VAT |
|
| 4WE 10 G5X/EG24N9K4/M | R901278768 | 0 | £881.48 £1,057.78 Inc. VAT |
|
| 4WE 10 JA5X/EG24N9K4/M | R901278782 | 0 | £627.52 £753.02 Inc. VAT |
|
| 4WE 10 D5X/EG24N9K4/M | R901278760 | 0 | £627.52 £753.02 Inc. VAT |
|
| 4WE 10 E5X/EG205N9K4/M | R901336183 | 0 | £863.78 £1,036.54 Inc. VAT |
|
| 3WE 10 A5X/EG24N9K4/M | R901278770 | 0 | £627.52 £753.02 Inc. VAT |
|
| 4WE 10 U5X/EG24N9K4/M | R901278778 | 0 | £842.91 £1,011.49 Inc. VAT |
|
| 4WE 10 H5X/EG24N9K4/M | R901278762 | 0 | £881.48 £1,057.78 Inc. VAT |
|
| 4WE 10 EB5X/EG24N9K4/M | R901278780 | 0 | £627.52 £753.02 Inc. VAT |
|
| 4WE 10 J5X/EG24N9K4/M | R901278744 | 0 | £842.90 £1,011.48 Inc. VAT |
|
| 4WE 10 J5X/EG205N9K4/M | R901327207 | 0 | £842.90 £1,011.48 Inc. VAT |
|
| 4WE 10 M5X/EG24N9K4/M | R901278787 | 0 | £881.48 £1,057.78 Inc. VAT |
|
| 4WE 10 D5X/EG96N9K4/M | R901324452 | 0 | £648.40 £778.08 Inc. VAT |
|
| 4WE 10 C5X/EG24N9K4/M | R901278772 | 0 | £627.52 £753.02 Inc. VAT |
|
| 4WE 10 W5X/EG24N9K4/M | R901278773 | 0 | £842.91 £1,011.49 Inc. VAT |
|
| 4WE 10 E5X/EG24N9K4/M | R901278761 | 0 | £842.90 £1,011.48 Inc. VAT |
|
| 4WE 10 HA5X/EG24N9K4/M | R901278779 | 0 | £666.10 £799.32 Inc. VAT |
|
| 4WE 10 Y5X/EG24N9K4/M | R901278769 | 0 | £627.52 £753.02 Inc. VAT |
|
| 4WE 10 J5X/EG96N9K4/M | R901324445 | 0 | £863.78 £1,036.54 Inc. VAT |
|
| 4WE 10 H5X/EG96N9K4/M | R901324446 | 0 | £902.35 £1,082.82 Inc. VAT |
|
| 4WE 10 Q5X/EG24N9K4/M | R901278774 | 0 | £881.48 £1,057.78 Inc. VAT |
|
| 4WE 10 D5X/EG205N9K4/M | R901336181 | 0 | £627.52 £753.02 Inc. VAT |
|

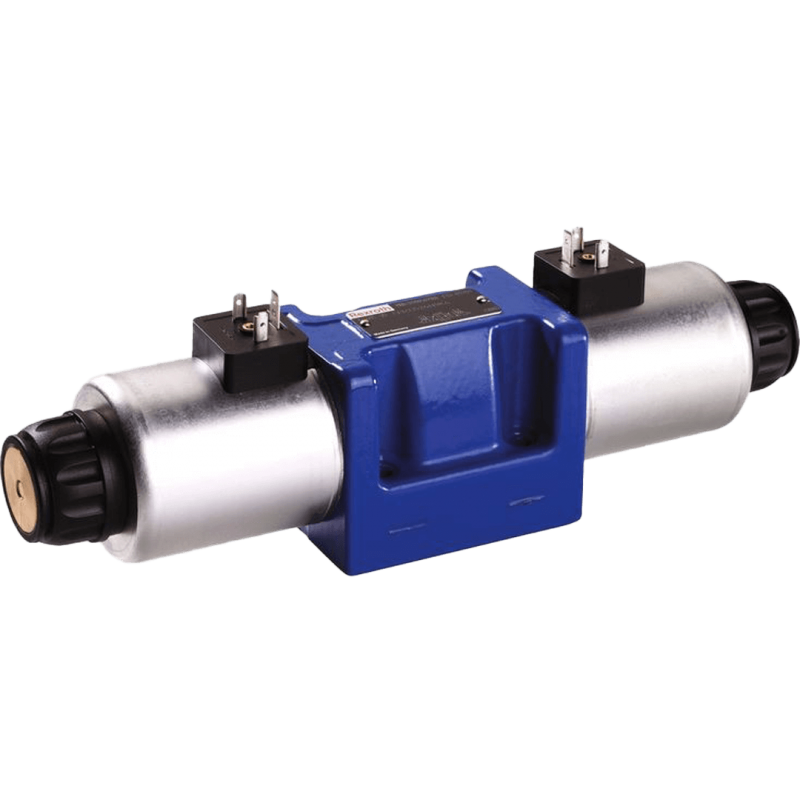

Bosch Rexroth Directional Spool Valves Direct Operated with Solenoid Actuation Type WE Cetop 5
- Size 10
- Component series 5X
- Maximum operating pressure 350 bar
- Maximum flow: 160 l/min – DC
- 120l/min - AC
Features:
- 4/3-, 4/2- or 3/2-way version
- Porting pattern according to ISO 4401-05-04-0-05
- High-power solenoid, optionally rotatable by 90°
- Electrical connection as individual or central connection
- Cartridge optionally equipped with PWM connector (fast switching amplifier, energy reduction)
- Manual override, optional
- CE conformity according to the Low-Voltage Directive 2014/35/EU for electrical voltages > 50 VAC or > 75 VDC
- Solenoid coil as approved component with UR marking, optional
- Approval according to CSA C22.2 no. 139-13, optional
