ZDR 10 D Size 10 Series 5x
Cetop 5 pressure reducing direct operated sandwich valves ZDR 10 D
- Nominal size 10
- Component series 5X
- Maximum operating pressure 350 bar
- Maximum flow 160 l/min
Products
Downloads
Description
| Part Number | Material Number | No-Show | Price | Add to Parts List |
|---|---|---|---|---|
| ZDR 10 DA2-5X/150Y | R900410884 | 0 | £640.79 £768.95 Inc. VAT |
|
| ZDR 10 DP2-5X/210YM | R900410876 | 0 | £562.36 £674.83 Inc. VAT |
|
| ZDR 10 DB2-5X/210YM | R900443484 | 0 | £562.36 £674.83 Inc. VAT |
|
| ZDR 10 DP2-5X/75YM | R900410875 | 0 | £562.35 £674.82 Inc. VAT |
|
| ZDR 10 DA2-5X/210Y | R900406651 | 0 | £640.79 £768.95 Inc. VAT |
|
| ZDR 10 DB2-5X/75YM | R900431509 | 0 | £562.36 £674.83 Inc. VAT |
|
| ZDR 10 DA2-5X/75Y | R900438008 | 0 | £640.79 £768.95 Inc. VAT |
|
| ZDR 10 DP2-5X/150YM | R900410880 | 0 | £562.35 £674.82 Inc. VAT |
|
| ZDR 10 DB2-5X/150YM | R900408340 | 0 | £562.36 £674.83 Inc. VAT |
|

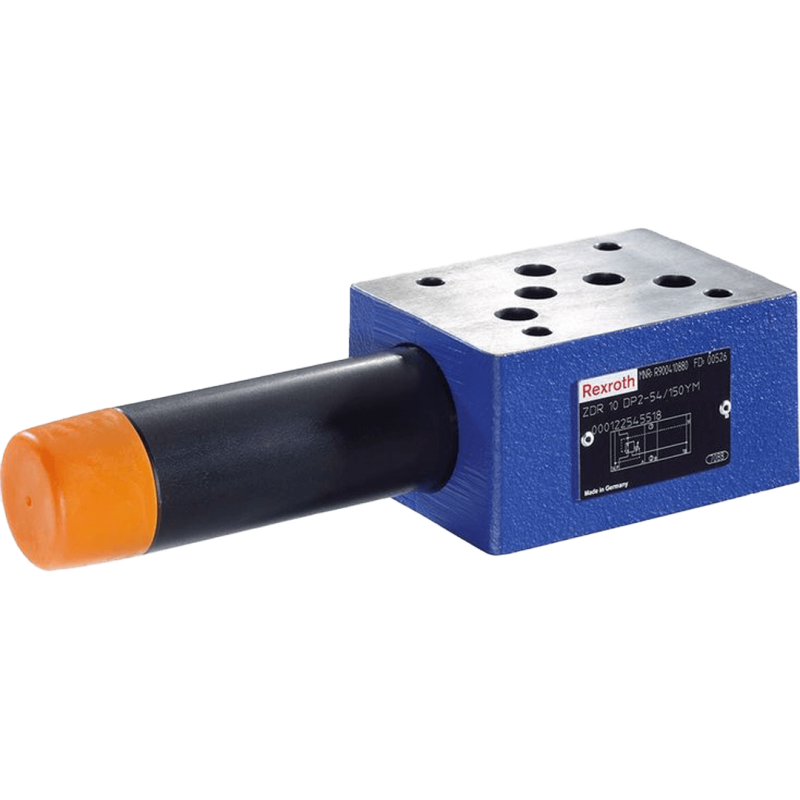

Bosch Rexroth Cetop 5 Pressure Reducing Direct Operated Sandwich Valves ZDR 10 D
- Nominal size 10
- Component series 5X
- Maximum operating pressure 350 bar
- Maximum flow 160 l/min
Features:
- Sandwich plate valve
- Porting pattern according to ISO 4401-05-04-0-05
- 4 pressure ratings
- 4 adjustment types, optionally:
- –Rotary knob
- –Sleeve with hexagon and protective cap
- –Lockable rotary knob with scale
- –Rotary knob with scale
- Check valve, optional (version "A")
- Pressure reduction in channel A, B or channel P
- Corrosion-protected design
