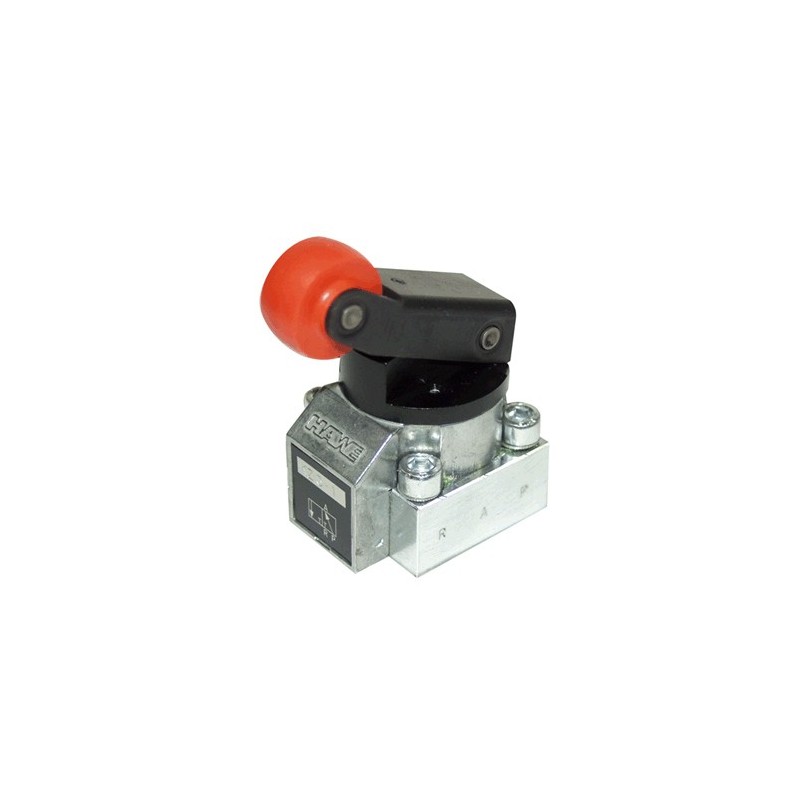

Mechanically Operated Directional Control Valves ND 4

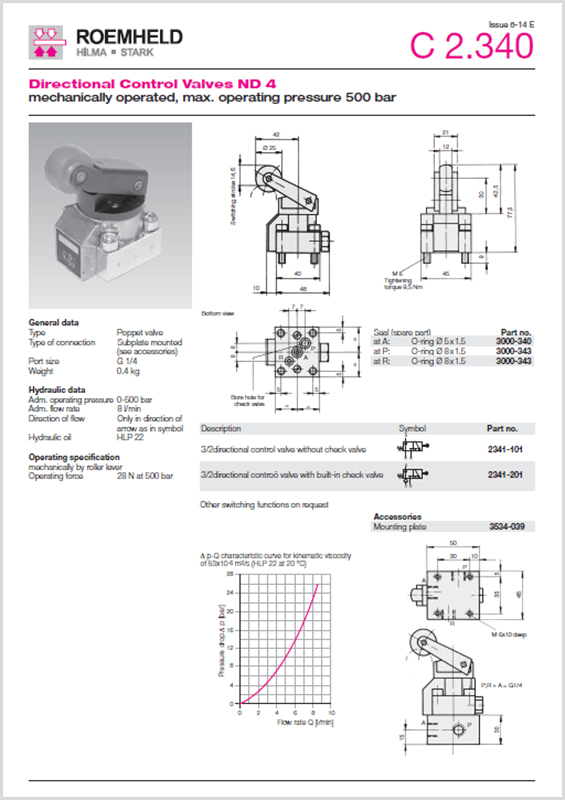

ROEMHELD C 2.340 Mechanically Operated Directional Control Valves ND 4
- Port size: G 1/4
- Adm. flow rate: 8 l/min
- Switching stroke: 14.5 mm
- Hydraulic oil: HLP 22
- Operating force: 28 N at 500 bar
- Mechanically Operated
- Max. Operating Pressure: 500 bar
Products
Downloads
Description
| Part Number | Material Number | Type | Price | Add to Parts List |
|---|---|---|---|---|
| 2341-101 | 3/2 directional control valve without check valve | £336.89 £404.27 Inc. VAT |
|
|
| 2341-201 | 3/2 directional control valve with built-in check valve | £365.47 £438.56 Inc. VAT |
|
Mechanically Operated Directional Control Valves ND 4 - ROEMHELD C 2.340
- 3/2directional control valve without check valve - Part No: 2341-101
- 3/2directional control valve with built-in check valve - Part No: 2341-201
General data
- Type: Poppet valve
- Type of connection: Subplate mounted
- Port size: G 1/4
- Weight: 0.4 kg
Hydraulic data
- Adm. operating pressure: 0-500 bar
- Adm. flow rate: 8 l/min
- Direction of flow: Only in direction of arrow as in symbol
- Hydraulic oil: HLP 22
Operating specification
- Mechanically by roller lever
- Operating force: 28 N at 500 bar
Accessories:
Mounting plate - Part No: 3534-039
