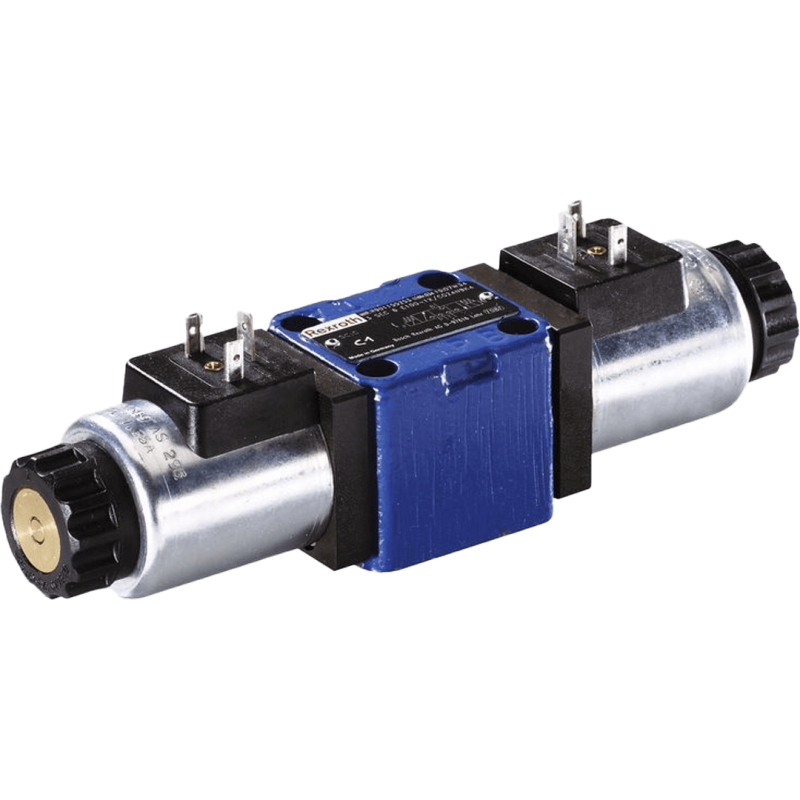

Bosch Rexroth On / off directional poppet valves with solenoid actuation SEC 6

SEC 6 Series 2x

On/off directional poppet valves with solenoid actuation SEC 6 3/3, 4/2 and 4/3 direct operated

  • Size 6
  • Component series 2X
  • Maximum operating pressure 400 bar
  • Maximum flow 25 l/min
Print page

Description
Downloads

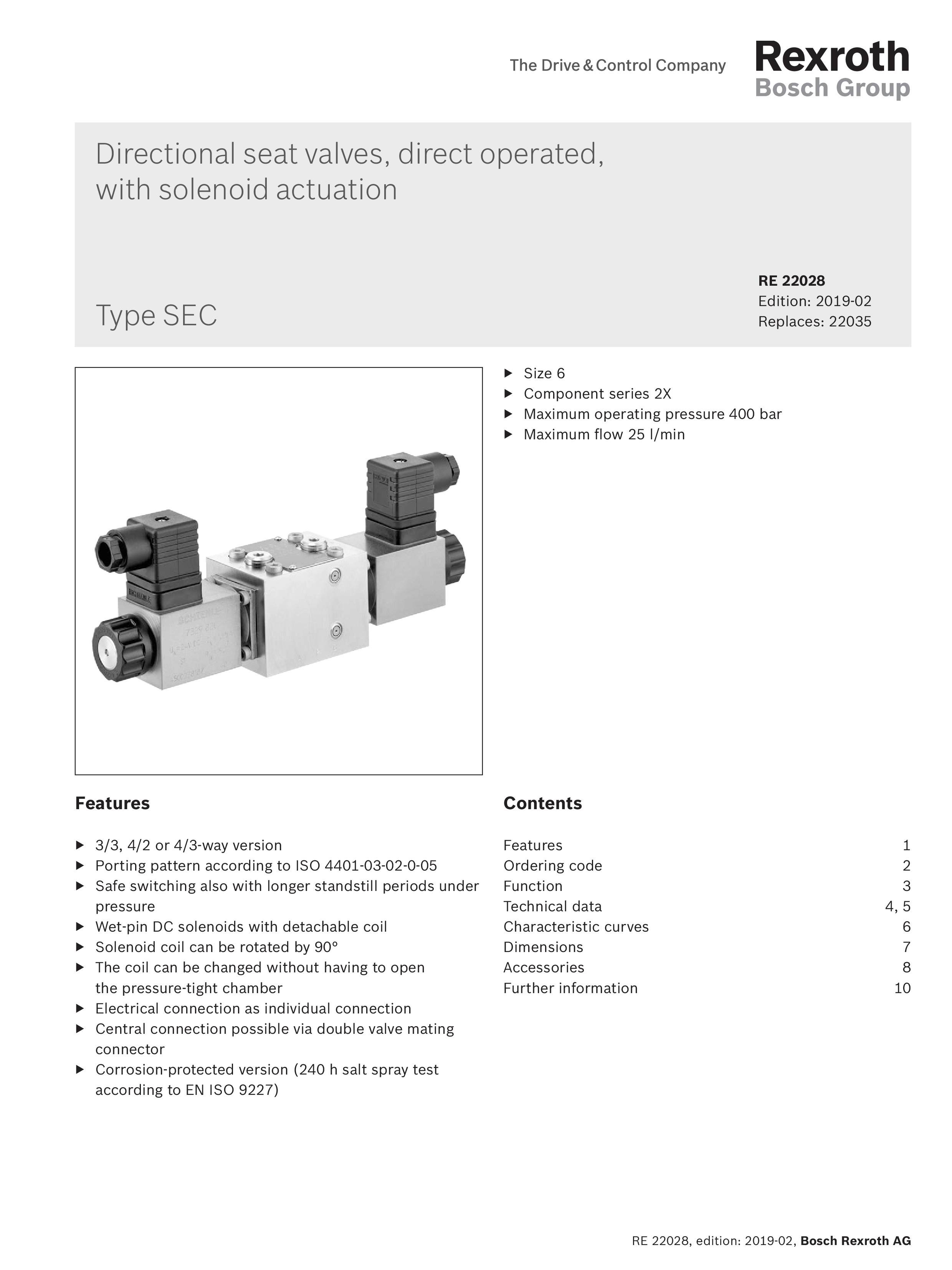

re22028_2019-02

Bosch Rexroth On/off Directional Poppet Valves with Solenoid Actuation SEC 6

  • Size 6
  • Component series 2X
  • Maximum operating pressure 400 bar
  • Maximum flow 25 l/min

Features:

  • 3/3, 4/2 or 4/3-way version
  • Porting pattern according to ISO 4401-03-02-0-05
  • Safe switching also with longer standstill periods under pressure
  • Wet-pin DC solenoids with detachable coil
  • Solenoid coil can be rotated by 90°
  • The coil can be changed without having to open the pressure-tight chamber
  • Electrical connection as individual connection
  • Central connection possible via double valve mating connector
  • Corrosion-protected version (240 h salt spray test according to EN ISO 9227)
