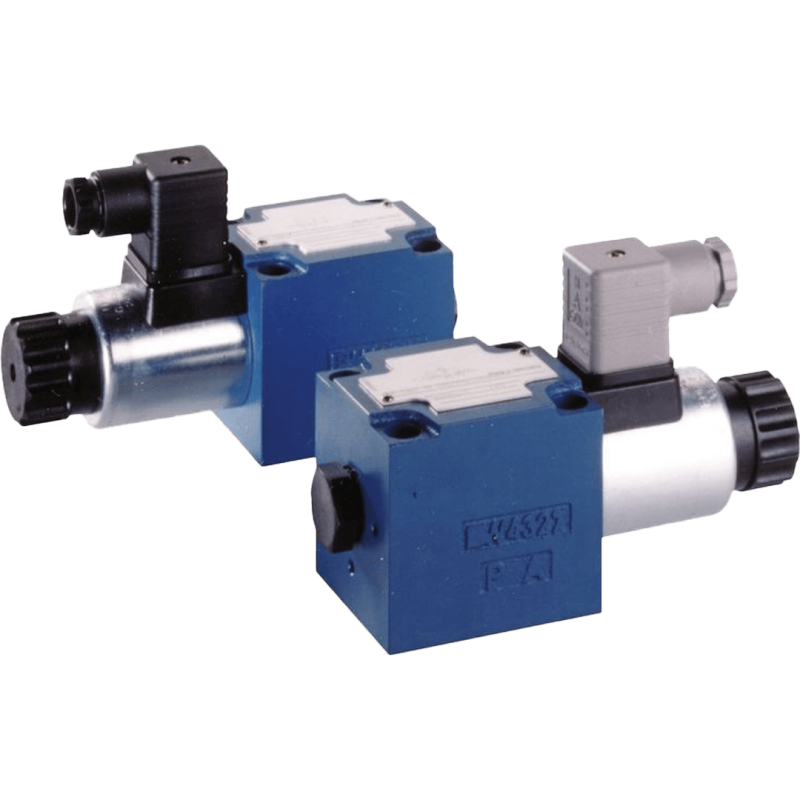

Bosch Rexroth Directional Seat Valves with Solenoid Actuation Type M-.SED 6

M-.SED 6 Series 1x

2/2, 3/2 and 4/2 directional seat valve with solenoid actuation type M-.SED 6

  • Size: 6
  • Component series: 1X
  • Maximum operating pressure: 350 bar
  • Maximum flow: 25 l/min
Print page

Products
Downloads
Description
Part Number Material Number No-Show Price Add to Parts List
M-3SED 6 CK1X/350CG24N9K4 M-3SED6CK1X/350CG24N9K4 R900052392 1 £543.76
£652.51 Inc. VAT
M-3SED 6 UK1X/350CG24N9K4 M-3SED6UK1X/350CG24N9K4 R900052621 2 £543.76
£652.51 Inc. VAT
M-3SED 6 CK1X/350CG24N9K4/V M-3SED6CK1X/350CG24N9K4/V R900224526 3 £569.82
£683.78 Inc. VAT
M-3SED 6 UK1X/350CG24K4 M-3SED6UK1X/350CG24K4 R900223676 4 £543.75
£652.50 Inc. VAT

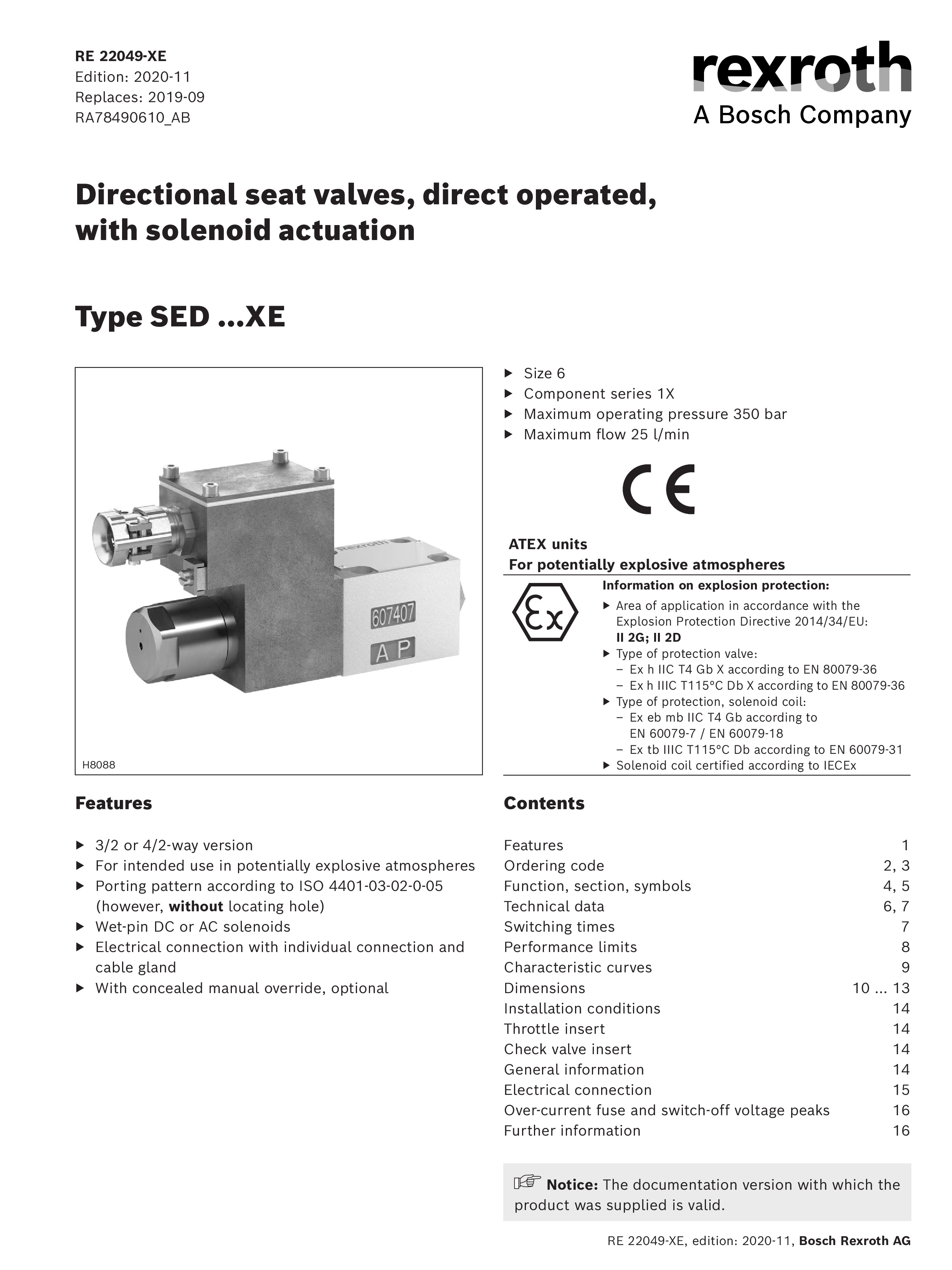

RE_22049-XE_2020-11

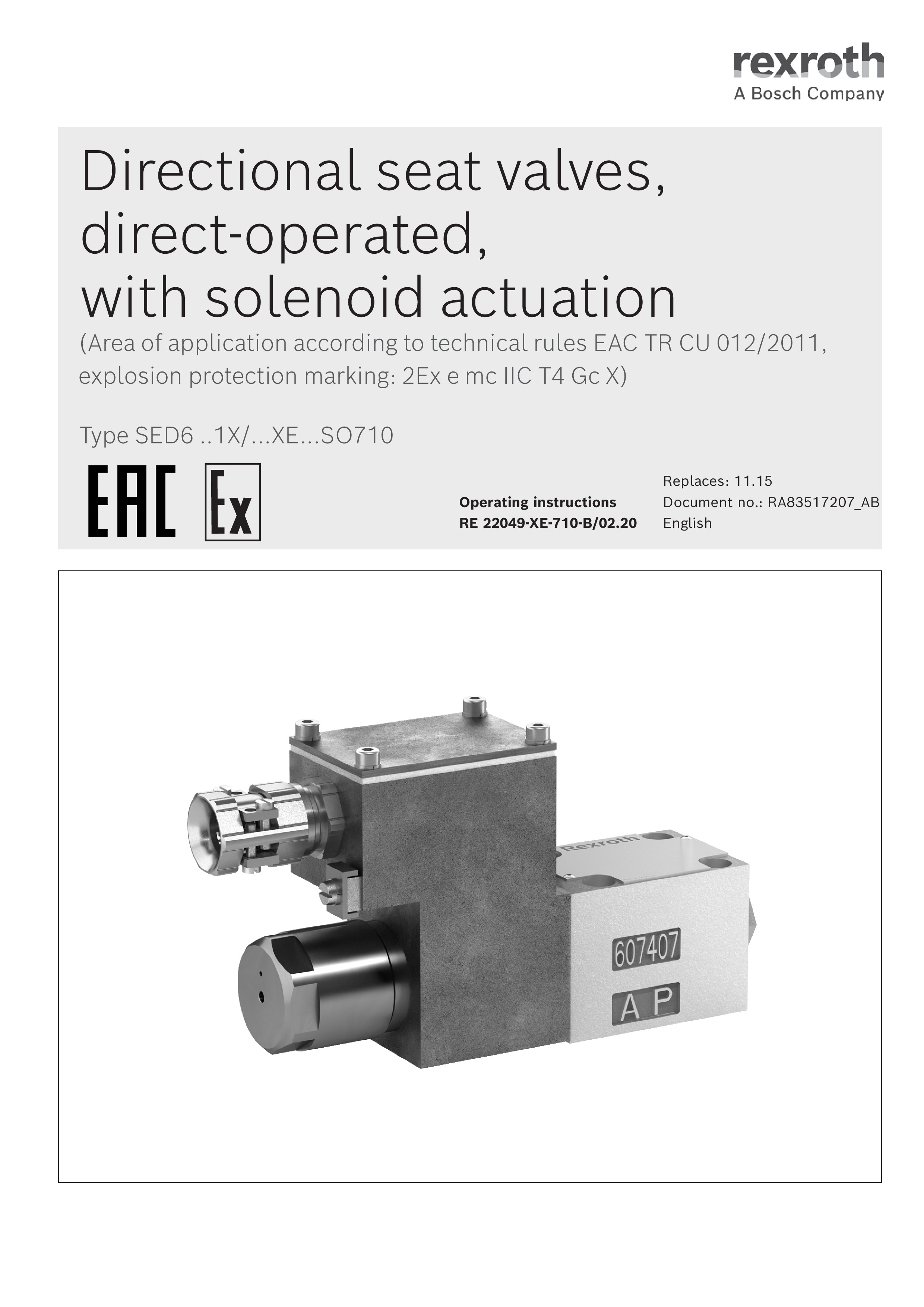

RE22049-XE-710-B_2020-02

Bosch Rexroth Directional Seat Valves with Solenoid Actuation Type M-.SED6

  • Size: 6
  • Component series: 1X
  • Maximum operating pressure: 350 bar
  • Maximum flow: 25 l/min

Features:

  • 3/2 or 4/2-way version
  • For intended use in potentially explosive atmospheres
  • Porting pattern according to ISO 4401-03-02-0-05 (however, without locating hole)
  • Wet-pin DC or AC solenoids
  • Electrical connection with individual connection and cable gland
  • With concealed manual override, optional
