ZUTP-Series, Hydraulic Electric Tensioning Pump

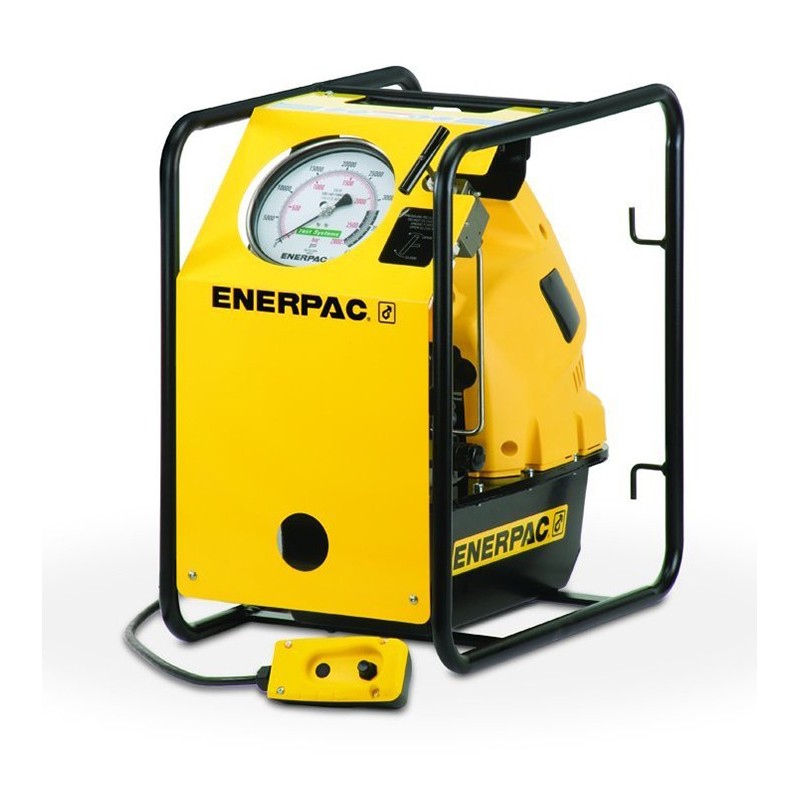

Enerpac ZUTP-Series Hydraulic Electric Tensioning Pumps

ZUTP-Series hydraulic electric tensioning pumps are ideally suited for use with hydraulic bolt tensioning tools and hydraulic nuts

  • Maximum Pressure: 1500 bar
  • Usable Oil Capacity: 4,0 litres
  • Motor Size: 1,25 kW
  • Flow: 0,33 l/min
Print page

Products
Downloads
Description
Part Number Material Number Electrical Motor Specification Price Add to Parts List
ZUTP1500B ZUTP1500B 115 VAC, 1-ph £9,899.00
£11,878.80 Inc. VAT
ZUTP1500E ZUTP1500E 230 VAC, 1-ph European plug and CE EMC directive compliant £9,899.00
£11,878.80 Inc. VAT
ZUTP1500I ZUTP1500I 230 VAC, 1-ph With NEMA 6-15 plug £9,899.00
£11,878.80 Inc. VAT

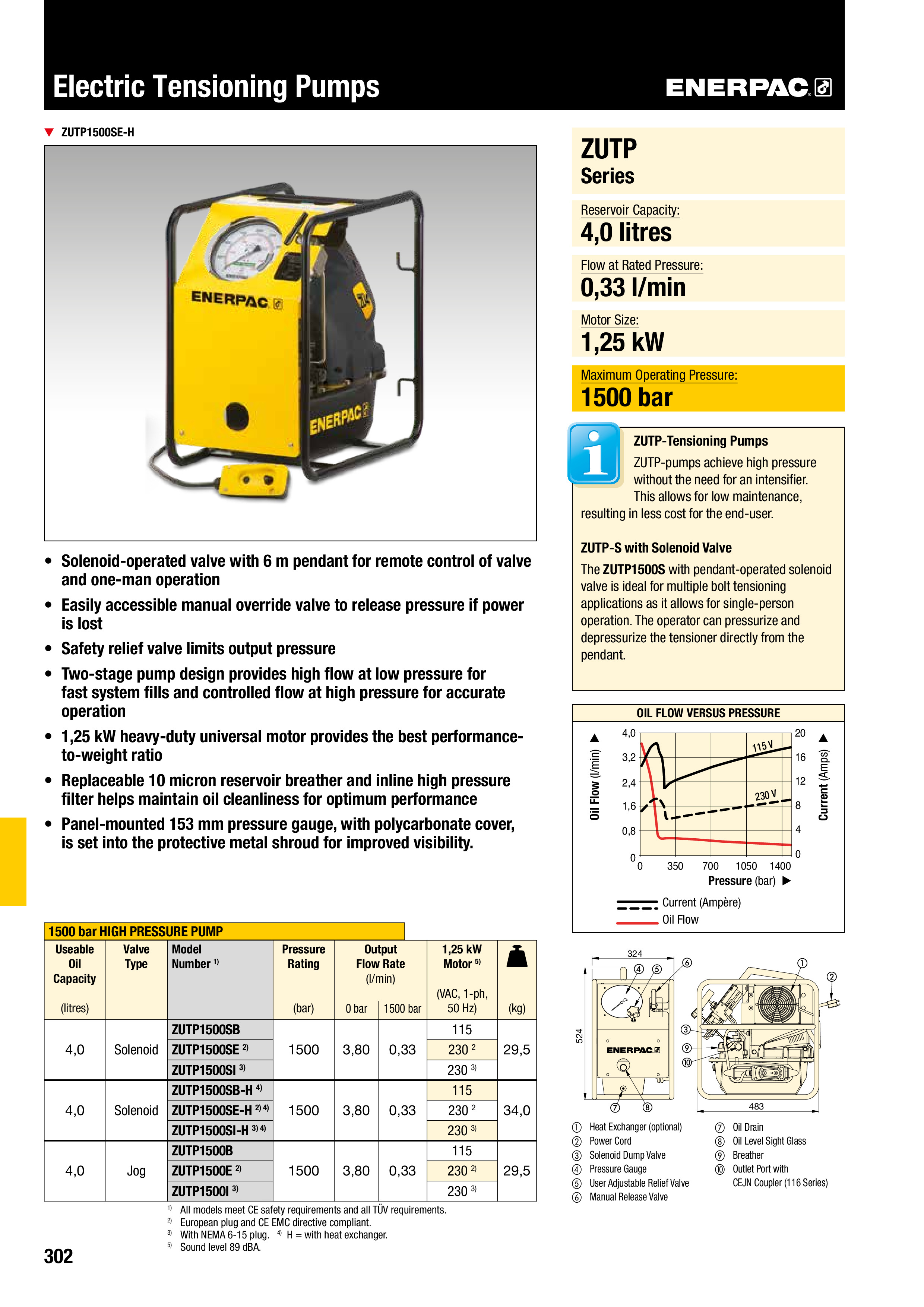

ZUTP-Series_Electric_Tensioning_Pumps_EN-GB

Enerpac ZUTP-Series Hydraulic Electric Tensioning Pumps

  • Maximum Pressure: 1500 bar
  • Usable Oil Capacity: 4,0 litres
  • Motor Size: 1,25 kW
  • Flow: 0,33 l/min
  • Pump Type: Two Speed

All models meet CE safety requirements and all TÜV requirements

Features:

  • Enerpac's ZUTP ultra high pressure hydraulic electric tensioning pump features a two-stage pump design providing high flow at low pressure for fast system fills and controlled flow at high pressure for safe and accurate operation
  • Z-Class high-efficiency pump design runs cooler and requires less current draw which is especially helpful in remote locations
  • 6 m pendant cord enables motor control from a distance
  • Angled 153 mm pressure gauge, with polycarbonate cover, built into a protective metal shroud for improved visibility and protection
  • Safety relief valve limits output pressure
  • Compact, lightweight and rugged aluminium frame for increased durability and ease of handling

Applications:

The Enerpac ZUTP-Series electric pump is ideally suited for use with hydraulic bolt tensioning tools and hydraulic nuts
