SYHDFEE-1X, SYHDFED-1X,SYHDFEF-1X Size 40 to 355

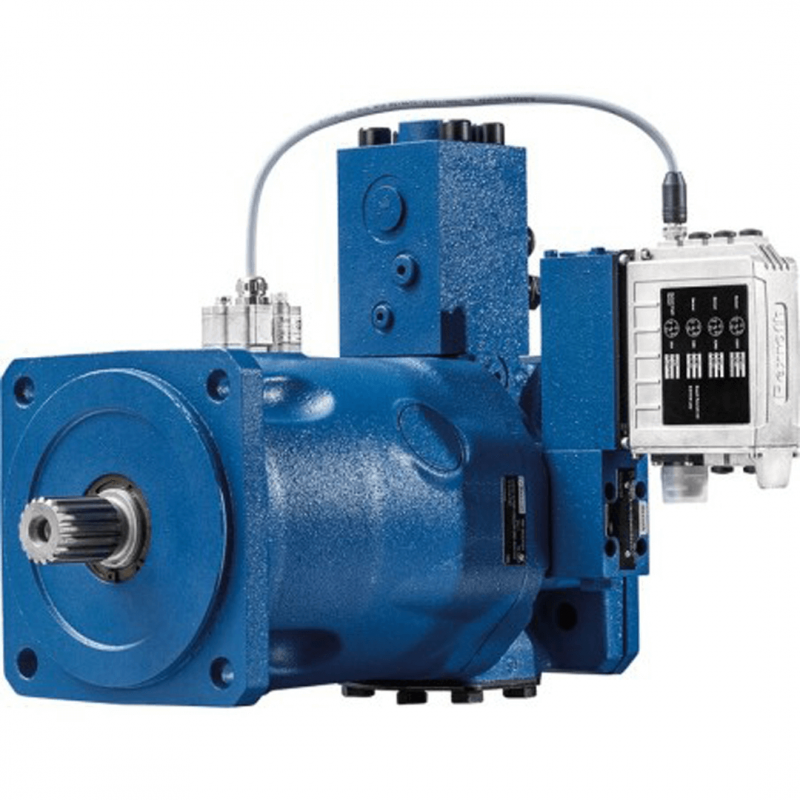

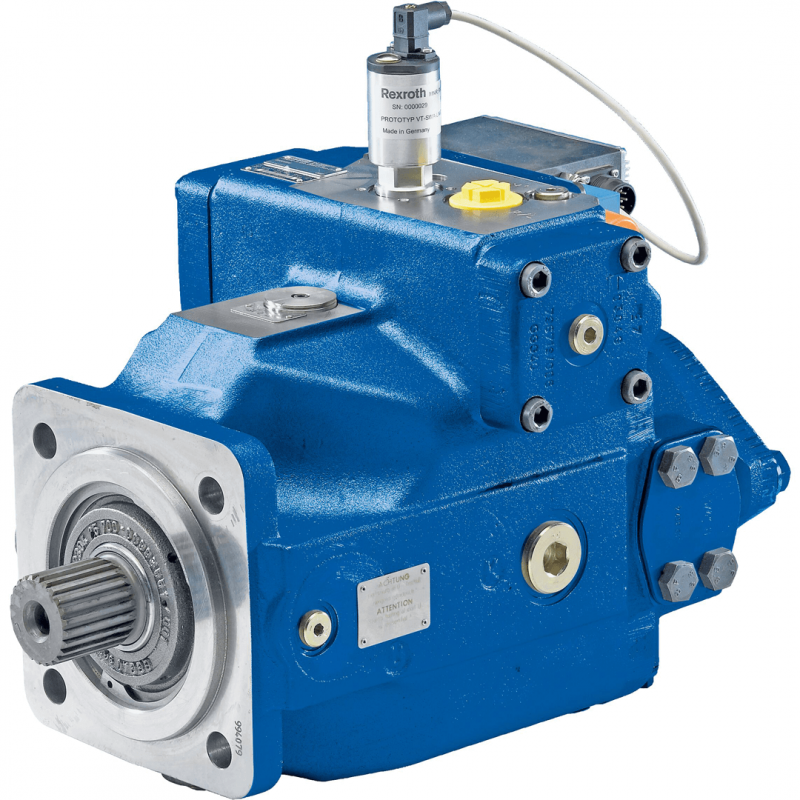

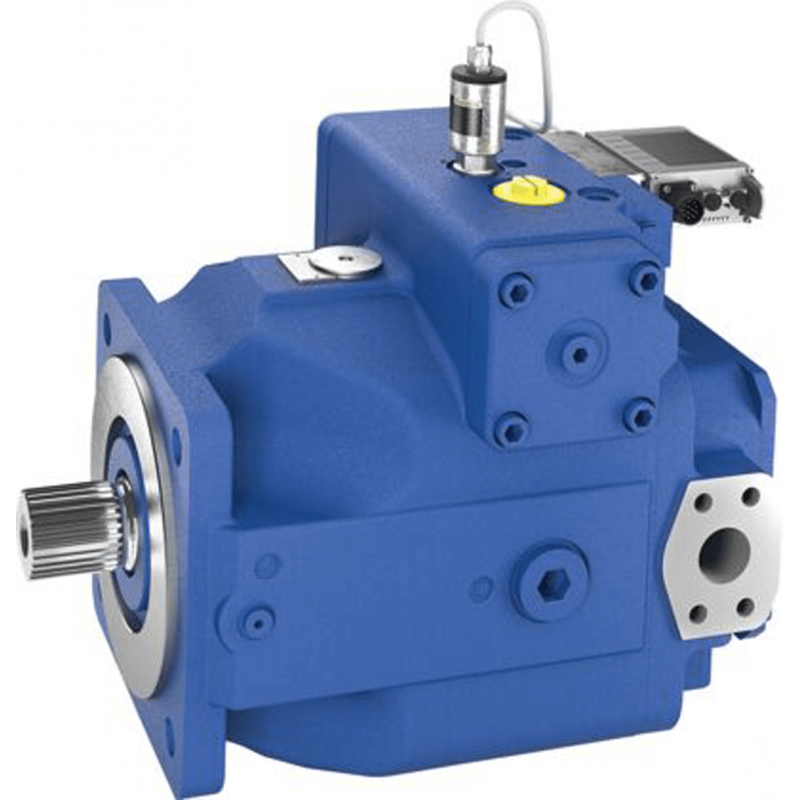

Electro-hydraulic pressure and flow control system SYHDFEE-1X

  • Size 40 … 355
  • Component series 1X
  • Maximum operating pressure 350 bar
  • With axial piston variable displacement pump type A4VSO
  • Function: Swivel angle control, pressure control, torque limitation, speed control function, master-slave
Print page

Description
Downloads

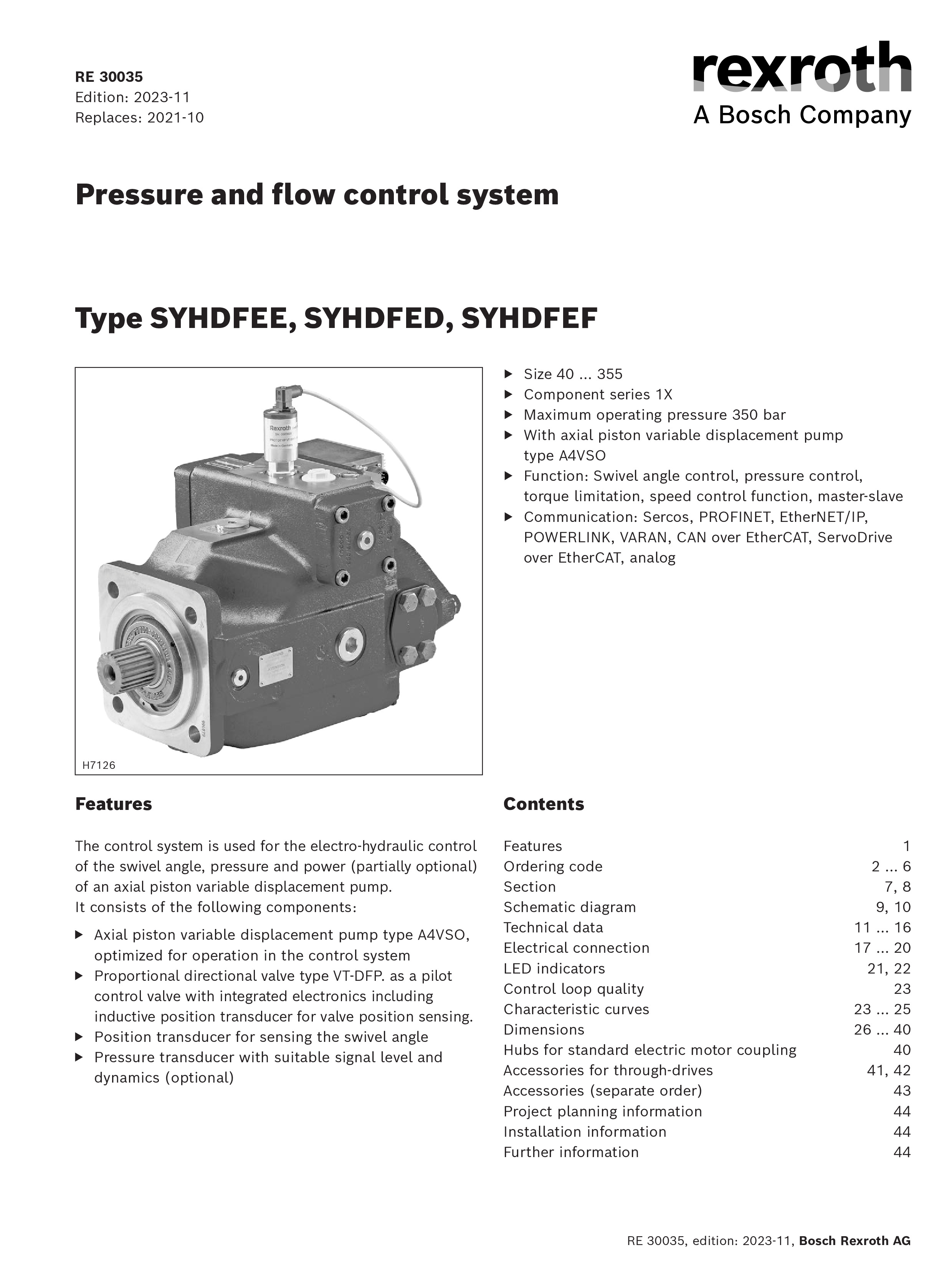

RE 30035_2023-11

Bosch Rexroth Electro-hydraulic pressure and flow control system SYHDFEE-1X

  • Size 40 … 355
  • Component series 1X
  • Maximum operating pressure 350 bar
  • With axial piston variable displacement pump type A4VSO
  • Function: Swivel angle control, pressure control, torque limitation, speed control function, master-slave
  • Communication: Sercos, PROFINET, EtherNET/IP, POWERLINK, VARAN, CAN over EtherCAT, ServoDrive over EtherCAT, analog

Features:

  • The control system is used for the electro-hydraulic control of the swivel angle, pressure and power (partially optional) of an axial piston variable displacement pump
  • Axial piston variable displacement pump type A4VSO, optimized for operation in the control system
  • Proportional directional valve type VT-DFP. as a pilot control valve with integrated electronics including inductive position transducer for valve position sensing.
  • Position transducer for sensing the swivel angle
  • Pressure transducer with suitable signal level and dynamics (optional)
