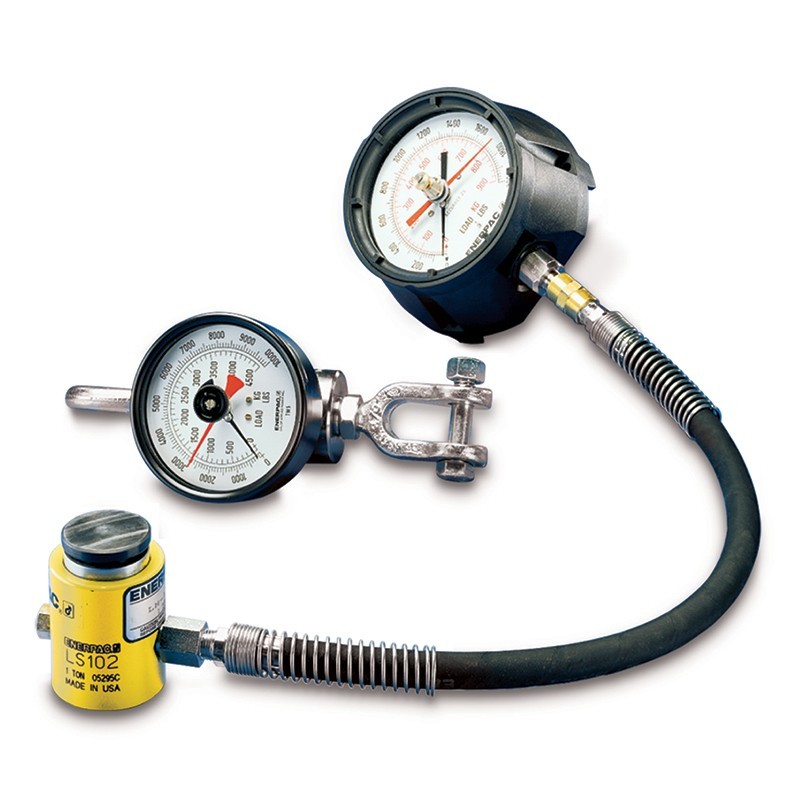

Enerpac TM, LH-Series Press Tension Meter and Load Cells
TM, LH-Series press tension meter and load cells are self-contained hydraulically operated units
- Capacity: 900 - 90.000 kg
- Accuracy, % of full scale: ± 2%
- Direct or Remote Mounted
| Part Number | Material Number | Model Number and Gauge Capacity | Price | Add to Parts List |
|---|---|---|---|---|
| TM5 | TM-5 - Gauge Capacity 4.500 kg | £1,650.00 £1,980.00 Inc. VAT |
|
|
| LH10 | LH-10 - Gauge Capacity 900 kg | £1,400.00 £1,680.00 Inc. VAT |
|
|
| LH50 | LH-50 - Gauge Capacity 4.500 kg | £1,399.00 £1,678.80 Inc. VAT |
|
|
| LH102 | LH-102 - Gauge Capacity 900 kg | £1,399.00 £1,678.80 Inc. VAT |
|
|
| LH502 | LH-502 - Gauge Capacity 4.500 kg | £1,460.00 £1,752.00 Inc. VAT |
|
|
| LH1002 | LH-1002 - Gauge Capacity 9.000 kg | £1,460.00 £1,752.00 Inc. VAT |
|
|
| LH2506 | LH-2506 - Gauge Capacity 21.000 kg | £2,157.00 £2,588.40 Inc. VAT |
|
|
| LH5006 | LH-5006 - Gauge Capacity 45.000 kg | £3,148.00 £3,777.60 Inc. VAT |
|
|
| LH10006 | LH-10006 - Gauge Capacity 90.000 kg | £4,185.00 £5,022.00 Inc. VAT |
|
Enerpac TM, LH-Series Press Tension Meter and Load Cells
- Capacity: 900 - 90.000 kg
- Accuracy, % of full scale: ± 2%
- Direct or Remote Mounted
Tension Meter TM-5
- Accuracy, ± 2% of full scale
- Zinc and bronze plated to resist corrosion
- Dual-range readout in kilograms and pounds
- Maximum indicating pointer reading for pre-selected forces or to maintain force readings
- Cushioned metal case provides safe storage and transport.

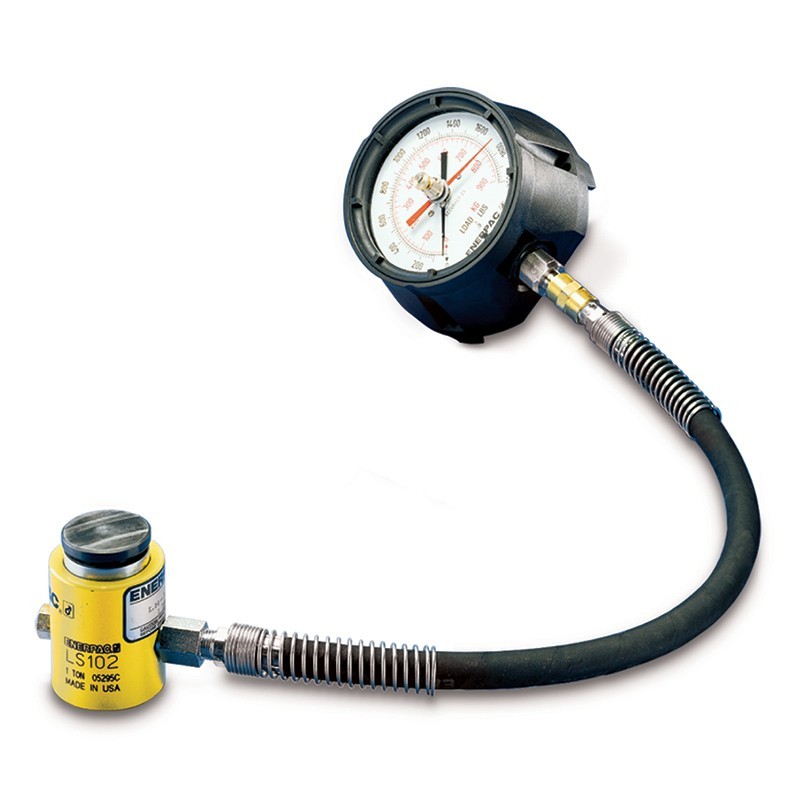

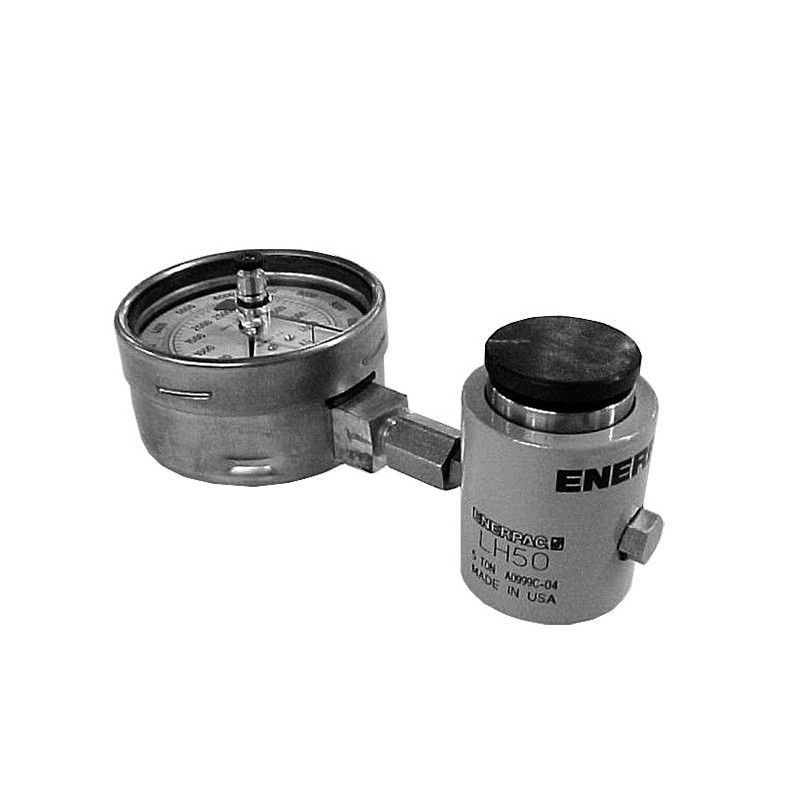

Load Cells LH-series
- Accuracy of ± 2% of full scale
- Swivel loading pad reduces eccentric loading for improved accuracy
- Maximum indicating pointer reading pre-selected forces or to maintain maximum force readings
- Dual-range readout in kilograms and pounds
ENERPAC compression type load cells are used for reading the actual loads or forces being exerted on or within your equipment. Insert the load cell where force measurement is needed and read the gauge in pounds of force. Gauges are equipped with a red maximum indicating pointer to show the maximum load. After the load is removed, the red pointer remains at the maximum load; the black pointer returns to zero. The red pointer must be reset to zero by hand.
ENERPAC tension type load cells are used for tension measuring applications such as on lift trucks, cranes, draw bars, line tensioning, pull test, etc. Gauges operate the same as described for compression type models.
