Enerpac A WR-Series Hydraulic Wedgie and Spread Cylinders
WR-5, WR-15 and A-92 Spread Cylinders
- Capacity: 0,75 - 1,0 ton
- Maximum Operating Pressure: 700 bar
- Maximum Spread: 94 - 292 mm
- Tip Clearance: 12,8 - 35,0 mm
- Single-acting, spring return
Products
Downloads
Description
| Part Number | Material Number | Max. Spread | Price | Add to Parts List |
|---|---|---|---|---|
| WR5 | 94 mm | £403.00 £483.60 Inc. VAT |
|
|
| A92 | 158 mm | £382.00 £458.40 Inc. VAT |
|
|
| WR15 | 292 mm | £1,202.00 £1,442.40 Inc. VAT |
|
Enerpac A, WR-Series Hydraulic Wedgie and Spread Cylinders
- Capacity: 0,75 - 1,0 ton
- Maximum Operating Pressure: 700 bar
- Maximum Spread: 94 - 292 mm
- Tip Clearance: 12,8 - 35,0 mm
- Single-acting, spring return

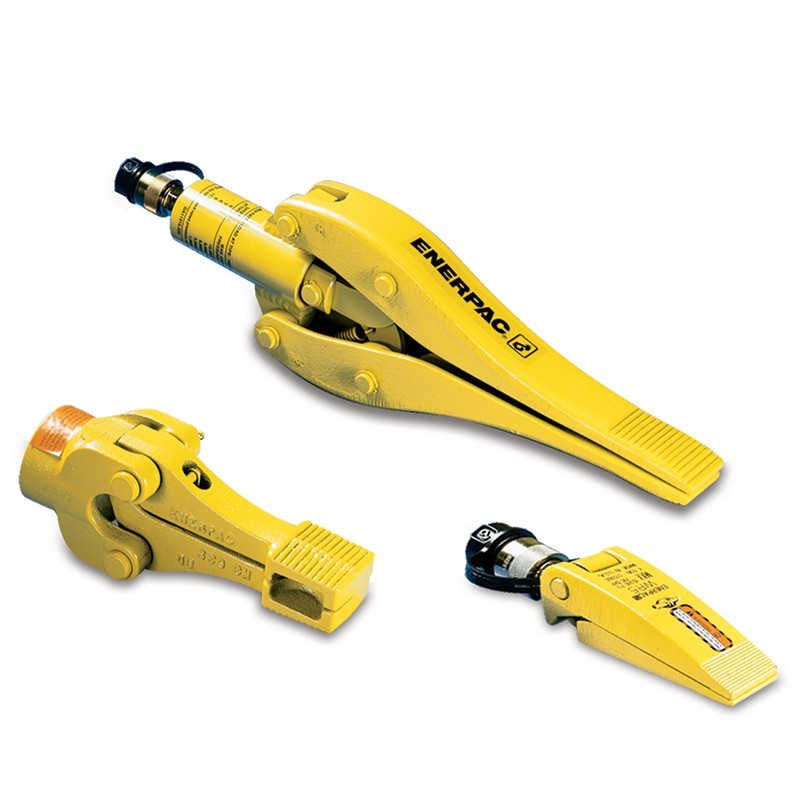

Available Models:
- WR-5: For use in very confined work areas
- WR-15: For long stroke spreading applications
- A-92: Spreader attachment; threads on RC-Series 10 ton cylinders (except RC-101)
WARNING: DO NOT USE the spreader on pipe flanges or in applications where one or both objects can move in a circular or orbital motion. General purpose spreader arms open in a radial motion and the spreader could become a projectile if circular or orbital motion also occurs.
