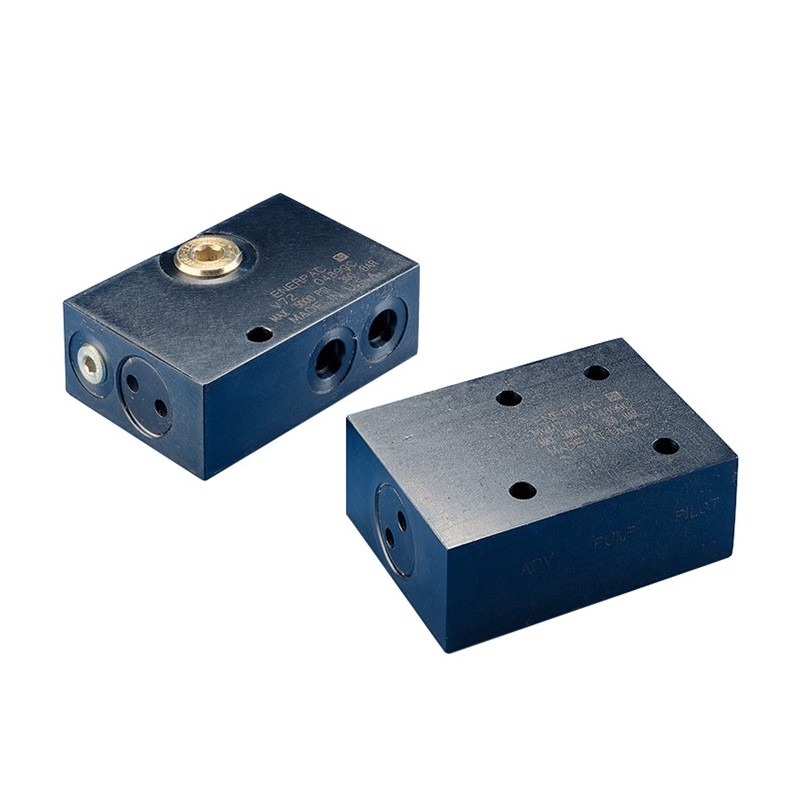

Enerpac MV-Series Pilot Operated Check Valves
MV-Series pilot operated check valves hold cylinder load and ensure remote unlocking
- Pilot ratio: 7:1
- Flow: 38 l/min
Products
Downloads
Description
| Part Number | Material Number | No-Show | Price | Add to Parts List |
|---|---|---|---|---|
| MV72 | 1 | £1,070.00 £1,284.00 Inc. VAT |
|
|
| MVM72 | 4 | £649.00 £778.80 Inc. VAT |
|
Enerpac MV-Series, Pilot Operated Check Valves
- Pilot ratio: 7:1
- Flow: 38 l/min
Features:
- Enerpac pilot operated check valves hold cylinder load and ensure remote unlocking
- Fast check-off repsonse
- Hardened seats ensure long life and positive pressure holding
- Built-in accumulator to maintain system pressure
- Mounting holes
- Manifold mount body MVM-72
Pilot operated check valves check the oil flow with a built-in pilot circuit providing fast, automatic check-off for your workholding applications. The pilot operated check valves with built-in accumulator help to maintain system pressure due to minor oil loss.
Application:
Added capability to open with pilot pressure to allow cylinders to retract. By using a pilot operated check valve, cylinder retraction can be accomplished automatically without operator activity.
