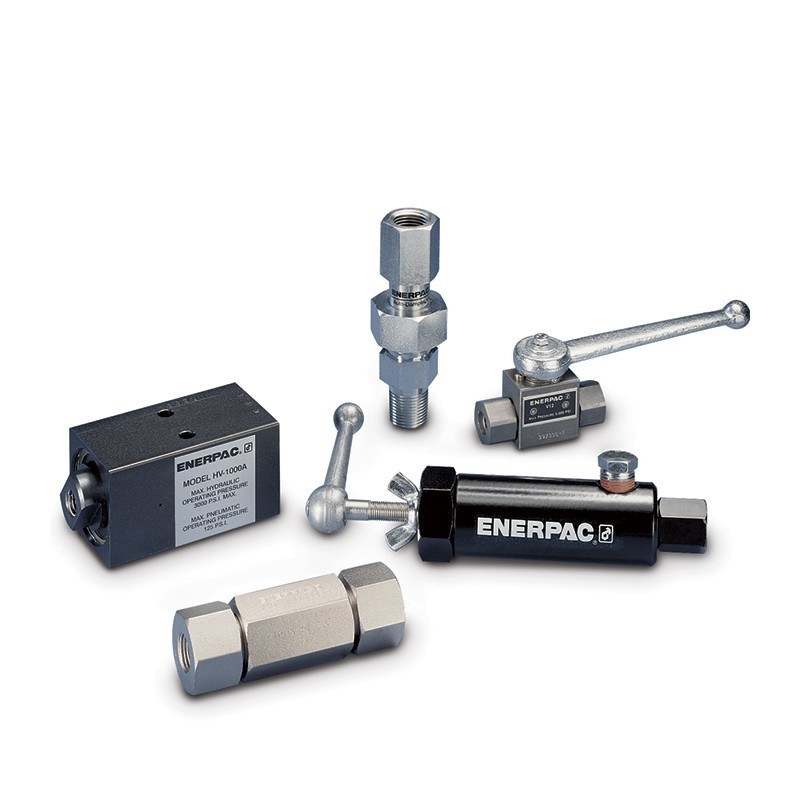

Enerpac MHV, HV, PLV & V-Series Accessory Valves
MHV, HV, PLV & V-Series, Accessory valves regulate oil flow or system pressure. All accessory valves feature NPT or SAE porting to insure against leakage at rated pressure
Products
Downloads
Description
| Part Number | Material Number | Pressure Rating (bar) | Valve Type | Oil Ports | Enquire |
|---|---|---|---|---|---|
| MHV1 | MHV-1 | 200 bar | Holding valve - modular | 1/8 NPTF | |
| PLV40013B | PLV-40013B | 200 bar | Pressure limiting valve | 1/8 NPTF | |
| HV1000A | HV-1000A | 200 bar | Holding valve - air pilot | 1/8 NPTF | |
| V12 | V-12 | 350 bar | Manual shut-off valve | SAE #4 | |
| V10 | V-10 | 700 bar | Auto-damper valve | 1/2 NPTF | |
| V17 | V-17 | 700 bar | Safety check valve | 3/8 NPTF | |
| V152 | V-152 | 700 bar | Pressure relief valve | 3/8 NPTF |
Enerpac MHV, HV, PLV & V-Series Accessory Valves
- Enerpac accessory valves regulate oil flow or system pressure
- All accessory valves feature NPT or SAE porting to insure against leakage at rated pressure
- Can easily be installed in any system
- All valves are painted, coated or plated for corrosion resistance
Accessory valves:
Enerpac accessory valves are available in a wide variety and many configurations to control hydraulic pressure or oil flow. These valves are used in conjunction with other valves and system components to provide full automation and control.
Application:
Accessory valves are used to automate clamp cycles, prevent pressure loss and provide additional operator and component safety.
