AZMN Size 20 to 36
External Gear Motors Type AZMN Sizes 20 to 36
- Platform N
- Fixed displacement
- Size 20 … 36
- Continuous pressure up to 250 bar
- Maximum start-up pressure up to 280 bar
Products
Downloads
Description
| Part Number | Material Number | Displacement | Price | Add to Parts List |
|---|---|---|---|---|
| AZMN-22-022UCB20PX-S0077 | 0511725605 | 22.5 cm3 / rev | £1,158.66 £1,390.39 Inc. VAT |
|
| AZMN-22-025UCB20PX-S0892 | 0511725604 | 25.0 cm3 / rev | £1,174.11 £1,408.93 Inc. VAT |
|
| AZMN-22-028UCB20PX-S0077 | 0511725607 | 28.0 cm3 / rev | £1,191.99 £1,430.39 Inc. VAT |
|
| AZMN-22-032UCB20PX-S007 | 0511725613 | 32.0 cm3 / rev | £1,208.66 £1,450.39 Inc. VAT |
|
| AZMN-22-020UCB20PX-S0077 | 0511625611 | 20.0 cm3 / rev | £1,144.36 £1,373.23 Inc. VAT |
|

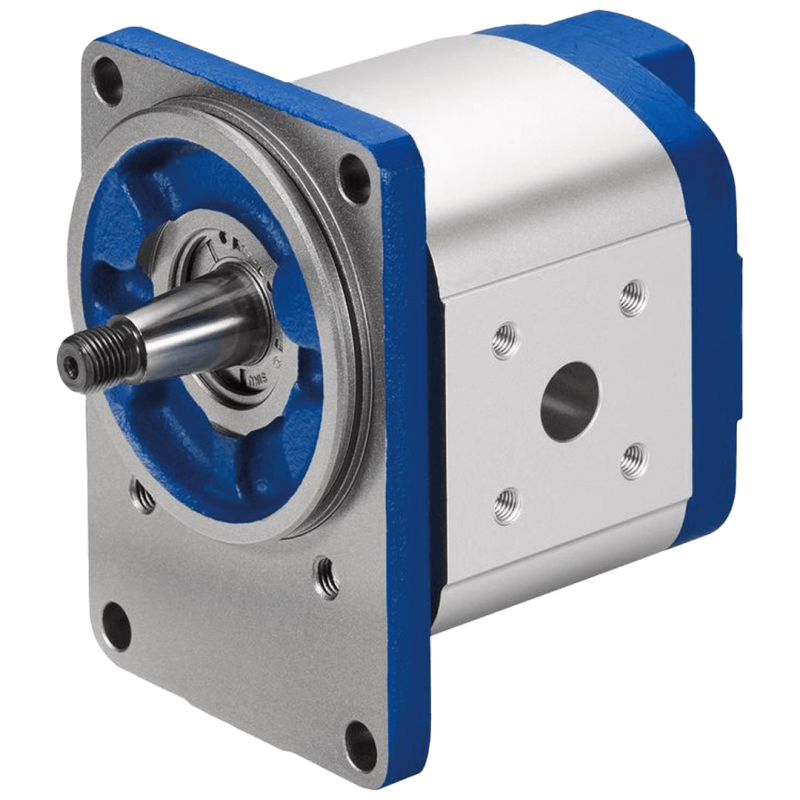

Bosch Rexroth Hydraulic External Gear Motors Type AZMN 20cc to 36cc
- Platform N
- Fixed displacement
- Size: 20 ... 36
- Continuous pressure up to 250 bar
- Intermittent pressure up to 280 bar
Features:
- Consistent high quality based on large-volume production
- Long service life
- Wide speed range
- Slide bearings for high loads
- Optional reversible version for 2-quadrant and 4-quadrant operation
- Numerous configuration variants available
- Drive shafts according to ISO or SAE and customer-specific solutions
- Line ports: connection flange or screw thread
- High pressures though small installation space and low weight
- Wide viscosity and temperature range
| Quantity | Unit discount | You Save |
|---|
