AZPN Size 20 to 36
High performance external gear pumps type AZPN
- Platform N
- Fixed displacement
- Nominal size 20 to 36
- Continuous pressure up to 250 bar
- Intermittent pressure up to 280 bar
| Part Number | Material Number | Displacement | P1 Max. Continuous Pressure | P2 Max. Intermittent Pressure | P3 Max. Peak Pressure | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| AZPN-12-025RDC20KB | 0510725094 | 25.0 cm3 / rev | 230 bar | 250 bar | 270 bar | £998.74 £1,198.49 Inc. VAT |
|
| AZPN-11-025RDC07KB-S0081 | 0510725104 | 25.0 cm3 / rev | 230 bar | 250 bar | 270 bar | £1,138.07 £1,365.68 Inc. VAT |
|
| AZPN-12-028RDC20KB | 0510725058 | 28.0 cm3 / rev | 210 bar | 230 bar | 250 bar | £1,011.84 £1,214.21 Inc. VAT |
|

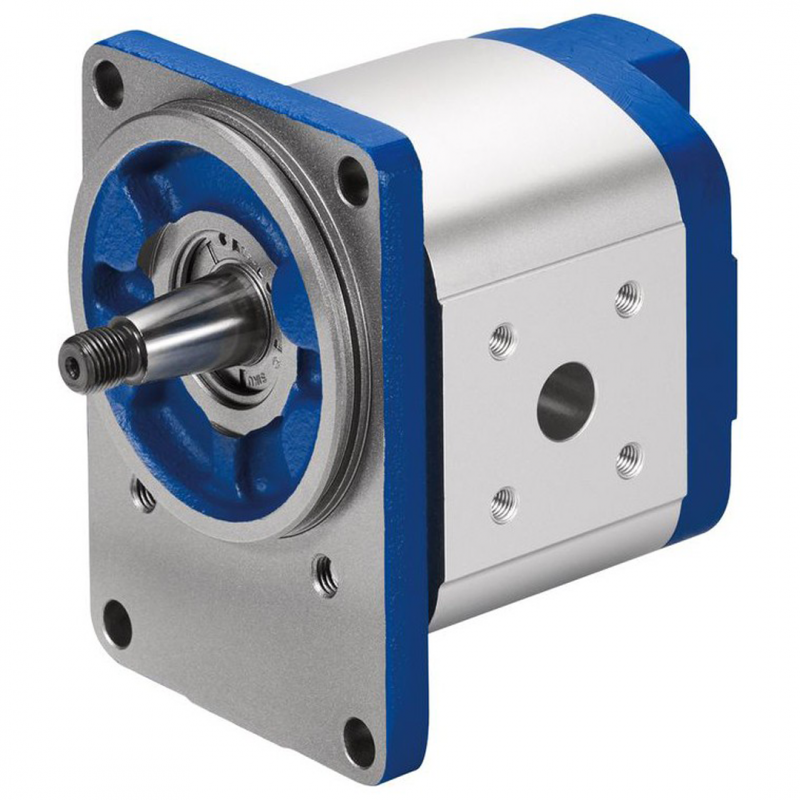

Bosch Rexroth External Gear Pumps AZPN 20cc to 36cc
- Platform N
- Fixed displacement
- Nominal size 20 to 36
- Continuous pressure up to 250 bar
- Intermittent pressure up to 280 bar
Features:
- Consistently high quality based on large-volume production
- Long service life
- Slide bearings for high loading
- Drive shafts according to ISO or SAE and customer-specific solutions
- Port connections: Connection flanges or screw-in threads
- Combinations of several pumps possible
General Function:
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To reduce heat losses, Rexroth external gear units have very high degrees of efficiency. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Rexroth external gear pumps are built in four frame sizes: Platform B, F, N and G. Within each platform different displacements can be realized by different gear widths. The pumps are available in the versions Standard, High-Performance, SILENCE und SILENCE PLUS. Further configuration variants are given by different flanges, shafts, valve arrangements and multiple pump combinations.
