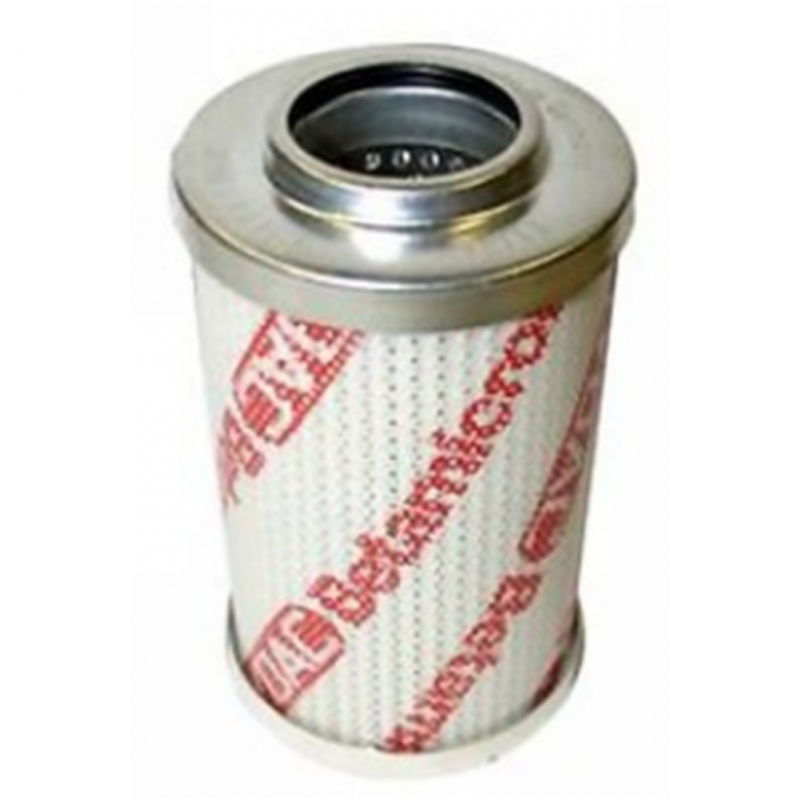

Hydac "D" Type Pressure Line Filter Elements

Type "D" pressure line elements are used in the filters series DF, DFF, DFG, DFP, DFZ, DFDK, LF, MDF

  • Filtration: 1µm to 20µm
  • Filter Sizes: 0030 to 1500
  • Collapse stability: 20 bar (BN4HC), 210 bar (BH4HC)
  • Without bypass valve as standard

HYDAC "D" Type pressure line filter elements offer high-efficiency absolute filtration (3µm to 20µm), exceptional dirt-holding capacity, and robust collapse stability (up to 210 bar), making them ideal for high-pressure applications requiring reliable contamination control and low pressure drop.

Please note that there has been a conversion from Betamicron® (BN4HC / BH4HC) to Optimicron® (ON)

Print page

Products
Downloads
Description
Part Number Material Number Nominal Size Filtration Rating Pressure Price Add to Parts List
0030 D 005 BH4HC 0030D005BH4HC 1263453 30 5 BH4HC 210 bar Max £105.24
£126.29 Inc. VAT
0030 D 003 BN4HC 0030D003BN4HC 1260900 30 3 BN4HC 20 bar Max On Enquiry
0030 D 010 BH4HC 0030D010BH4HC 1263454 30 10 BH4HC 210 bar Max £87.72
£105.26 Inc. VAT
0030 D 005 BN4HC 0030D005BN4HC 1260890 30 5 BN4HC 20 bar Max On Enquiry
0030 D 020 BH4HC 0030D020BH4HC 1263455 30 20 BH4HC 210 bar Max £87.72
£105.26 Inc. VAT
0030 D 010 BN4HC 0030D010BN4HC 1250486 30 10 BN4HC 20 bar Max On Enquiry
0030 D 020 BN4HC 0030D020BN4HC 1260880 30 20 BN4HC 20 bar Max On Enquiry
0030 D 003 BH4HC 0030D003BH4HC 1263452 30 3 BH4HC 210 bar Max £136.78
£164.14 Inc. VAT
0035 D 010 BN4HC 0035D010BN4HC 1262046 35 10 BN4HC 20 bar Max On Enquiry
0035 D 020 BN4HC 0035D020BN4HC 1262047 35 20 BN4HC 20 bar Max On Enquiry
0055 D 005 BN4HC 0055D005BN4HC 1253012 55 5 BN4HC 20 bar Max On Enquiry
0055 D 010 BN4HC 0055D010BN4HC 1262048 55 10 BN4HC 20 bar Max On Enquiry
0055 D 020 BN4HC 0055D020BN4HC 1262049 55 20 BN4HC 20 bar Max On Enquiry
0060 D 003 BN4HC 0060D003BN4HC 1260901 60 3 BN4HC 20 bar Max On Enquiry
0060 D 005 BN4HC 0060D005BN4HC 1260891 60 5 BN4HC 20 bar Max On Enquiry
0060 D 003 BH4HC 0060D003BH4HC 1253038 60 3 BH4HC 210 bar Max £230.61
£276.73 Inc. VAT
0060 D 010 BN4HC 0060D010BN4HC 1250487 60 10 BN4HC 20 bar Max On Enquiry
0060 D 005 BH4HC 0060D005BH4HC 1253040 60 5 BH4HC 210 bar Max £174.09
£208.91 Inc. VAT
0060 D 020 BN4HC 0060D020BN4HC 1260881 60 20 BN4HC 20 bar Max On Enquiry
0060 D 010 BH4HC 0060D010BH4HC 1253042 60 10 BH4HC 210 bar Max £148.09
£177.71 Inc. VAT
0060 D 020 BH4HC 0060D020BH4HC 1253044 60 20 BH4HC 210 bar Max £148.09
£177.71 Inc. VAT
0075 D 020 BN4HC 0075D020BN4HC 1262051 75 20 BN4HC 20 bar Max On Enquiry
0075 D 005 BN4HC 0075D005BN4HC 1268256 75 5 BN4HC 20 bar Max On Enquiry
0075 D 010 BN4HC 0075D010BN4HC 1262050 75 10 BN4HC 20 bar Max On Enquiry
0095 D 010 BN4HC 0095D010BN4HC 1267817 95 10 BN4HC 20 bar Max On Enquiry
0095 D 020 BN4HC 0095D020BN4HC 1271682 95 20 BN4HC 20 bar Max On Enquiry
0110 D 005 BH4HC 0110D005BH4HC 1253048 110 5 BH4HC 210 bar Max £239.65
£287.58 Inc. VAT
0110 D 010 BH4HC 0110D010BH4HC 1253050 110 10 BH4HC 210 bar Max £214.78
£257.74 Inc. VAT
0110 D 020 BH4HC 0110D020BH4HC 1253052 110 20 BH4HC 210 bar Max £214.78
£257.74 Inc. VAT
0110 D 003 BN4HC 0110D003BN4HC 1260902 110 3 BN4HC 20 bar Max On Enquiry
0110 D 005 BN4HC 0110D005BN4HC 1260892 110 5 BN4HC 20 bar Max On Enquiry
0110 D 010 BN4HC 0110D010BN4HC 1250488 110 10 BN4HC 20 bar Max On Enquiry
0110 D 020 BN4HC 0110D020BN4HC 1260882 110 20 BN4HC 20 bar Max On Enquiry
0110 D 003 BH4HC 0110D003BH4HC 1253046 110 3 BH4HC 210 bar Max £315.39
£378.47 Inc. VAT
0140 D 005 BN4HC 0140D005BN4HC 1260893 140 5 BN4HC 20 bar Max On Enquiry
0140 D 010 BN4HC 0140D010BN4HC 1250489 140 10 BN4HC 20 bar Max On Enquiry
0140 D 020 BN4HC 0140D020BN4HC 1260883 140 20 BN4HC 20 bar Max On Enquiry
0140 D 003 BN4HC 0140D003BN4HC 1260903 140 3 BN4HC 20 bar Max On Enquiry
0160 D 003 BN4HC 0160D003BN4HC 1260904 160 3 BN4HC 20 bar Max On Enquiry
0160 D 005 BN4HC 0160D005BN4HC 1260894 160 5 BN4HC 20 bar Max On Enquiry
0160 D 010 BN4HC 0160D010BN4HC 1250490 160 10 BN4HC 20 bar Max On Enquiry
0160 D 020 BN4HC 0160D020BN4HC 1260884 160 20 BN4HC 20 bar Max On Enquiry
0240 D 005 BN4HC 0240D005BN4HC 1260895 240 5 BN4HC 20 bar Max On Enquiry
0240 D 010 BN4HC 0240D010BN4HC 1250491 240 10 BN4HC 20 bar Max On Enquiry
0240 D 020 BN4HC 0240D020BN4HC 1260885 240 20 BN4HC 20 bar Max On Enquiry
0240 D 003 BH4HC 0240D003BH4HC 1253070 240 3 BH4HC 210 bar Max £570.87
£685.04 Inc. VAT
0240 D 005 BH4HC 0240D005BH4HC 1253072 240 5 BH4HC 210 bar Max £483.83
£580.60 Inc. VAT
0240 D 010 BH4HC 0240D010BH4HC 1253074 240 10 BH4HC 210 bar Max £439.74
£527.69 Inc. VAT
0240 D 020 BH4HC 0240D020BH4HC 1253076 240 20 BH4HC 210 bar Max £439.74
£527.69 Inc. VAT
0240 D 003 BN4HC 0240D003BN4HC 1260905 240 3 BN4HC 20 bar Max On Enquiry
0280 D 005 BH4HC 0280D005BH4HC 1253080 280 5 BH4HC 210 bar Max £752.87
£903.44 Inc. VAT
0280 D 010 BH4HC 0280D010BH4HC 1253082 280 10 BH4HC 210 bar Max £685.04
£822.05 Inc. VAT
0280 D 020 BH4HC 0280D020BH4HC 1253084 280 20 BH4HC 210 bar Max £685.04
£822.05 Inc. VAT
0280 D 003 BN4HC 0280D003BN4HC 1260906 280 3 BN4HC 20 bar Max On Enquiry
0280 D 005 BN4HC 0280D005BN4HC 1260896 280 5 BN4HC 20 bar Max On Enquiry
0280 D 010 BN4HC 0280D010BN4HC 1250492 280 10 BN4HC 20 bar Max On Enquiry
0280 D 020 BN4HC 0280D020BN4HC 1260886 280 20 BN4HC 20 bar Max On Enquiry
0280 D 003 BH4HC 0280D003BH4HC 1253078 280 3 BH4HC 210 bar Max £906.61
£1,087.93 Inc. VAT
0330 D 005 BN4HC 0330D005BN4HC 1260897 330 5 BN4HC 20 bar Max On Enquiry
0330 D 010 BN4HC 0330D010BN4HC 1250493 330 10 BN4HC 20 bar Max On Enquiry
0330 D 020 BN4HC 0330D020BN4HC 1260887 330 20 BN4HC 20 bar Max On Enquiry
0330 D 003 BH4HC 0330D003BH4HC 1253086 330 3 BH4HC 210 bar Max £800.35
£960.42 Inc. VAT
0330 D 005 BH4HC 0330D005BH4HC 1253088 330 5 BH4HC 210 bar Max £677.13
£812.56 Inc. VAT
0330 D 010 BH4HC 0330D010BH4HC 1253090 330 10 BH4HC 210 bar Max £616.09
£739.31 Inc. VAT
0330 D 020 BH4HC 0330D020BH4HC 1253092 330 20 BH4HC 210 bar Max £616.09
£739.31 Inc. VAT
0330 D 003 BN4HC 0330D003BN4HC 1260907 330 3 BN4HC 20 bar Max On Enquiry
0500 D 005 BH4HC 0500D005BH4HC 1253096 500 5 BH4HC 210 bar Max £811.65
£973.98 Inc. VAT
0500 D 010 BH4HC 0500D010BH4HC 1253098 500 10 BH4HC 210 bar Max £738.17
£885.80 Inc. VAT
0500 D 020 BH4HC 0500D020BH4HC 1253100 500 20 BH4HC 210 bar Max £738.17
£885.80 Inc. VAT
0500 D 003 BN4HC 0500D003BN4HC 1260908 500 3 BN4HC 20 bar Max On Enquiry
0500 D 005 BN4HC 0500D005BN4HC 1260898 500 5 BN4HC 20 bar Max On Enquiry
0500 D 010 BN4HC 0500D010BN4HC 1250494 500 10 BN4HC 20 bar Max On Enquiry
0500 D 020 BN4HC 0500D020BN4HC 1260888 500 20 BN4HC 20 bar Max On Enquiry
0500 D 003 BH4HC 0500D003BH4HC 1253094 500 3 BH4HC 210 bar Max £951.83
£1,142.20 Inc. VAT
0660 D 005 BN4HC 0660D005BN4HC 1260899 660 5 BN4HC 20 bar Max On Enquiry
0660 D 010 BN4HC 0660D010BN4HC 1250495 660 10 BN4HC 20 bar Max On Enquiry
0660 D 020 BN4HC 0660D020BN4HC 1260889 660 20 BN4HC 20 bar Max On Enquiry
0660 D 003 BH4HC 0660D003BH4HC 1253102 660 3 BH4HC 210 bar Max £1,127.04
£1,352.45 Inc. VAT
0660 D 005 BH4HC 0660D005BH4HC 1253104 660 5 BH4HC 210 bar Max £954.09
£1,144.91 Inc. VAT
0660 D 010 BH4HC 0660D010BH4HC 1253106 660 10 BH4HC 210 bar Max £868.17
£1,041.80 Inc. VAT
0660 D 020 BH4HC 0660D020BH4HC 1253108 660 20 BH4HC 210 bar Max £868.17
£1,041.80 Inc. VAT
0660 D 003 BN4HC 0660D003BN4HC 1260909 660 3 BN4HC 20 bar Max On Enquiry
0990 D 010 BN4HC 0990D010BN4HC 1252898 990 10 BN4HC 20 bar Max On Enquiry
0990 D 005 BH4HC 0990D005BH4HC 1253112 990 5 BH4HC 210 bar Max £1,598.43
£1,918.12 Inc. VAT
0990 D 010 BH4HC 0990D010BH4HC 1253114 990 10 BH4HC 210 bar Max £1,452.61
£1,743.13 Inc. VAT
0990 D 020 BN4HC 0990D020BN4HC 1252900 990 20 BN4HC 20 bar Max On Enquiry
0990 D 020 BH4HC 0990D020BH4HC 1253116 990 20 BH4HC 210 bar Max £1,452.61
£1,743.13 Inc. VAT
0990 D 003 BN4HC 0990D003BN4HC 1252894 990 3 BN4HC 20 bar Max On Enquiry
0990 D 005 BN4HC 0990D005BN4HC 1252896 990 5 BN4HC 20 bar Max On Enquiry
0990 D 003 BH4HC 0990D003BH4HC 1253110 990 3 BH4HC 210 bar Max £1,888.96
£2,266.75 Inc. VAT
1320 D 003 BN4HC 1320D003BN4HC 1252902 1320 3 BN4HC 20 bar Max On Enquiry
1320 D 005 BN4HC 1320D005BN4HC 1252904 1320 5 BN4HC 20 bar Max On Enquiry
1320 D 003 BH4HC 1320D003BH4HC 1253118 1320 3 BH4HC 210 bar Max £2,251.83
£2,702.20 Inc. VAT
1320 D 010 BN4HC 1320D010BN4HC 1252906 1320 10 BN4HC 20 bar Max On Enquiry
1320 D 005 BH4HC 1320D005BH4HC 1253120 1320 5 BH4HC 210 bar Max £1,905.91
£2,287.09 Inc. VAT
1320 D 020 BN4HC 1320D020BN4HC 1252908 1320 20 BN4HC 20 bar Max On Enquiry
1320 D 010 BH4HC 1320D010BH4HC 1253122 1320 10 BH4HC 210 bar Max £1,732.96
£2,079.55 Inc. VAT
1320 D 020 BH4HC 1320D020BH4HC 1253124 1320 20 BH4HC 210 bar Max £1,732.96
£2,079.55 Inc. VAT
1500 D 005 BH4HC 1500D005BH4HC 1285453 1500 5 BH4HC 210 bar Max £2,475.65
£2,970.78 Inc. VAT
1500 D 010 BN4HC 1500D010BN4HC 1287410 1500 10 BN4HC 20 bar Max On Enquiry
1500 D 020 BN4HC 1500D020BN4HC 1288554 1500 20 BN4HC 20 bar Max On Enquiry
1500 D 010 BH4HC 1500D010BH4HC 1288557 1500 10 BH4HC 210 bar Max £2,250.70
£2,700.84 Inc. VAT
1500 D 020 BH4HC 1500D020BH4HC 1284038 1500 20 BH4HC 210 bar Max £2,250.70
£2,700.84 Inc. VAT
1500 D 003 BN4HC 1500D003BN4HC 1288553 1500 3 BN4HC 20 bar Max On Enquiry
1500 D 005 BN4HC 1500D005BN4HC 1288317 1500 5 BN4HC 20 bar Max On Enquiry
1500 D 003 BH4HC 1500D003BH4HC 1288555 1500 3 BH4HC 210 bar Max £2,632.78
£3,159.34 Inc. VAT
Hydac "D" Type Pressure Line Filter Elements

"D" Type pressure line filter elements

  • Filtration rating: 20µm to 3µm
  • Filter Size: 0030 to 1500
  • Collapse stability: 20 bar (BN4HC), 210 bar (BH4HC)
  • Without bypass valve as standard

Features:

  • Flow direction: From outside to inside
  • High dirt holding capacities
  • Great cost to value ratio
  • High efficiency absolute ratings

Please note that there is an ongoing conversion from Betamicron® (BN4HC / BH4HC) to Optimicron® (ON)

General Function:

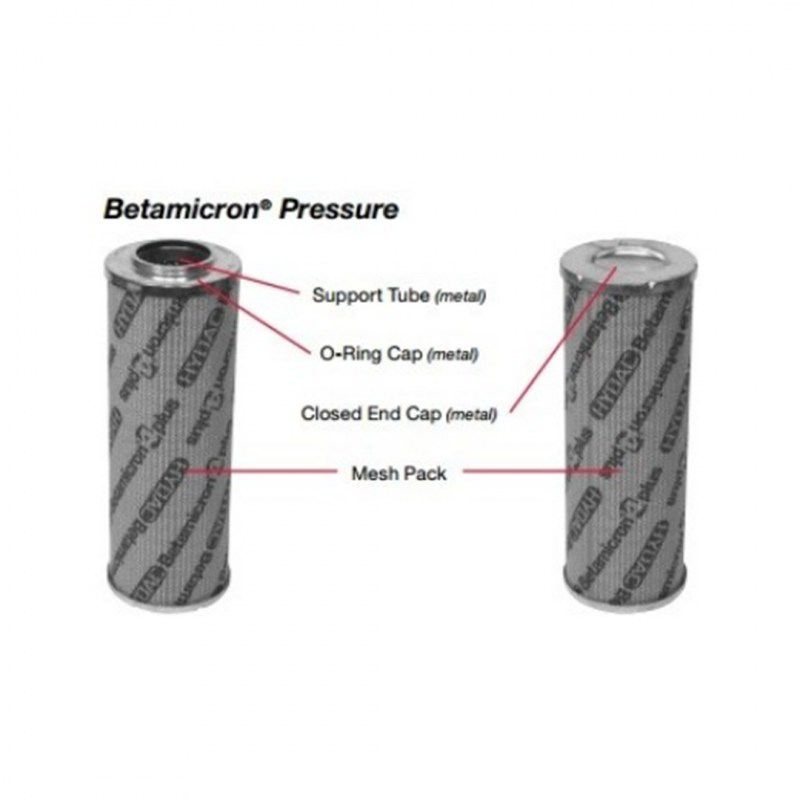

Type "D" elements are used in high pressure filters, in the filter assemblies DF, DFF, DFG, DFP, DFZ, DFDK, LF, MDF. The type "D" pressure line filter element has a 3 stage structure which ensures maximum contamination retention and filtration performance.

An additional drainage layer directs the fluid flow with optimal efficiency, achieving particularly favourable Δp/Q characteristics. An innovative bonding process used for the longitudinal seam guarantees that the cut ends of the mesh pack remain completely sealed even under high load variations. This eliminates the possibility of particles crossing from the contaminated to the clean side. The metal tube which forms a stable core inside the element isconstructed as a spiral lock seam tube. This provides consistent stability and a significant reduction in element weight.

HYDAC "D" Type pressure line filers offer a superior level of optimization of separation efficiency, service life and differential pressure versus flow rate. As a complete element package, the innovative characteristics of this technology have a very positive impact on the differential pressure of the elements and a high degree of filtration efficiency and performance.

Quantity Unit discount You Save

Customers who bought this product also bought:

Hydac "R" Return Line Filter Elements

HYDAC "R" type return line filter elements, featuring multi-layered Betamicron® BN4HC glass fiber media, offer reliable filtration from 1 µm to 20 µm with collapse stability up to 20 bar, ensuring high contamination retention and flow efficiency in hydraulic systems operating between -30 °C and +100 °C.

Key Features:

  • Filtration: 1 µm to 20 µm
  • Filter Size: 30 to 2600
  • Collapse stability: up to 20 bar

"R" type elements are used in return line filters, e.g. in the series RF, RFD, RFM, RFL, RFLD, RFM, NF, NFD.

£42.17 £50.60 Inc. VAT
View

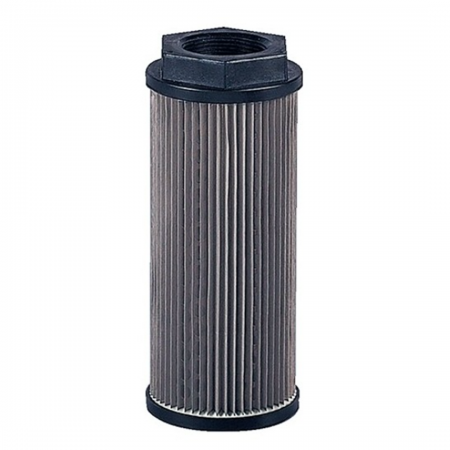

Hydac "S" Type Suction Strainer
