Hydac Spin-On Filter Element Type MA
of
Hydac Spin-On Filter Element Type MA

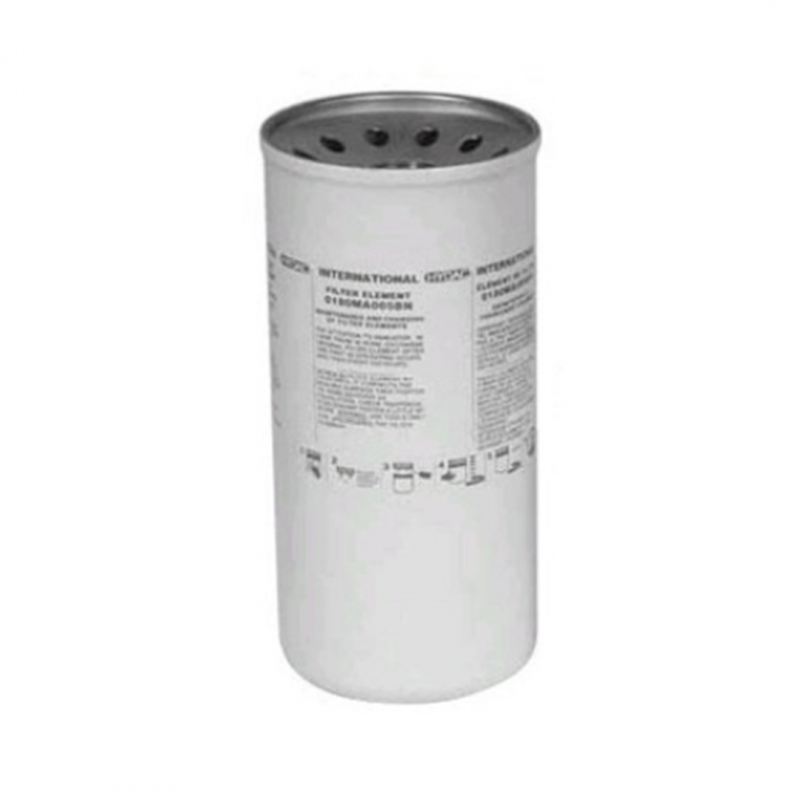

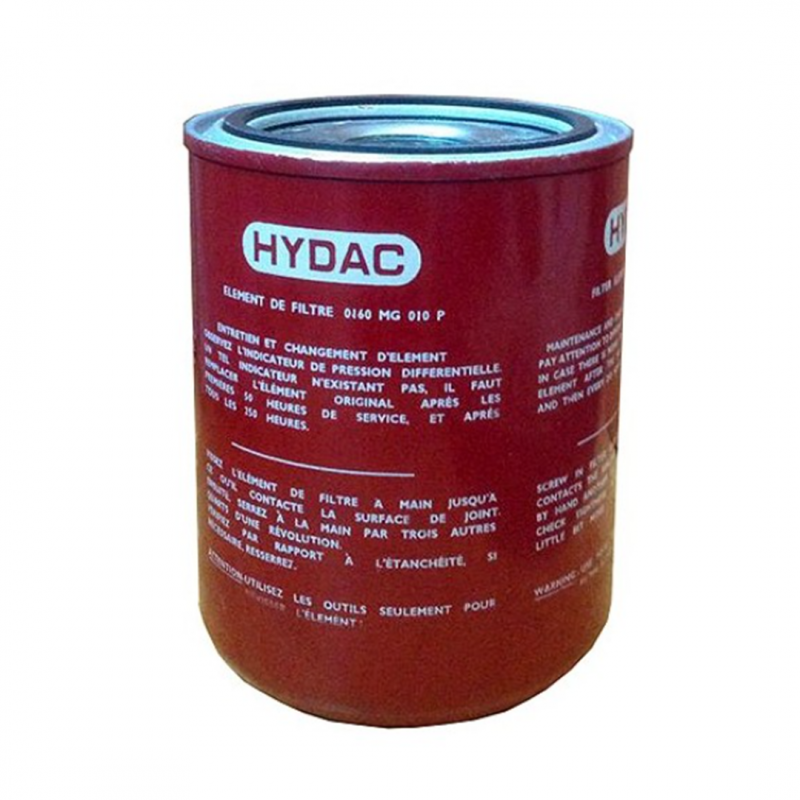

Hydac MG/ MA Spin-on Filter Elements

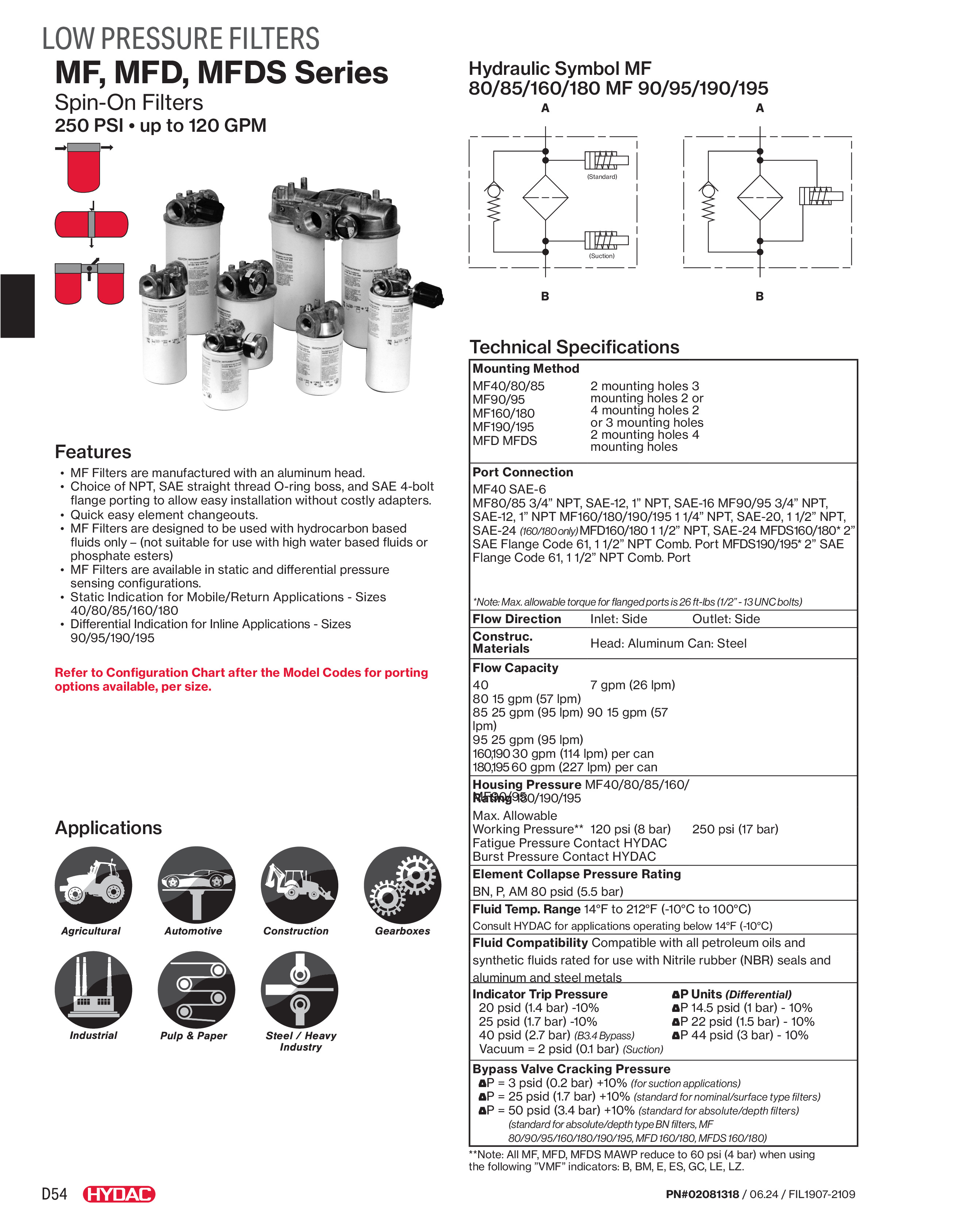

MG and MA spin-on filter cartridges are used in mobile filters of the MF and MFD series, in addition to breather filters of the BL series

  • Size: 0080, 0160, 0180
  • Operating pressure: 8 bar

HYDAC MG/MA Spin-on Filter Elements, available in sizes 0080, 0160, and 0180, feature durable Betamicron® or paper media with filtration ratings from 3 µm to 20 µm, and are designed for use in MF, MFD, and BL series filters, providing reliable performance up to 8 bar with easy, clean element replacement via ISO 228 (MG) or UN thread (MA) spin-on cartridges.

Print page

Products
Downloads
Description
Part Number Material Number Material Nominal Size Filtration Rating Price Add to Parts List
0080 MG 010 P 0080MG010P 315738 P-Paper 80 010um £32.87
£39.44 Inc. VAT
0080 MA 010 P 0080MA010P 1276002 P-Paper 80 010um £32.87
£39.44 Inc. VAT
0160 MG 010 P 0160MG010P 249005 P-Paper 160 010um £34.43
£41.32 Inc. VAT
0180 MA 010 P /-HYDAC 0180MA010P/-HYDAC 303122 P-Paper 180 010um £49.74
£59.69 Inc. VAT
0160 MA 005 BN 0160MA005BN 315621 BN-Betamicron 160 005um £90.43
£108.52 Inc. VAT
0090 MA 003 BN 0090MA003BN 1265786 BN-Betamicron 90 003um £114.78
£137.74 Inc. VAT
0160 MA 010 BN 0160MA010BN 314022 BN-Betamicron 160 010um £85.22
£102.26 Inc. VAT
0080 MG 020 BN 0080MG020BN 300873 BN-Betamicron 80 020um £85.04
£102.05 Inc. VAT
0090 MA 005 BN 0090MA005BN 1277341 BN-Betamicron 90 005um £100.87
£121.04 Inc. VAT
0160 MA 020 BN 0160MA020BN 315485 BN-Betamicron 160 020um £85.22
£102.26 Inc. VAT
0090 MA 010 BN 0090MA010BN 316133 BN-Betamicron 90 010um £95.65
£114.78 Inc. VAT
0180 MA 003 BN /-HYDAC 0180MA003BN/-HYDAC 310475 BN-Betamicron 180 003um £159.13
£190.96 Inc. VAT
0090 MA 020 BN 0090MA020BN 316134 BN-Betamicron 90 020um £95.65
£114.78 Inc. VAT
0180 MA 005 BN /-HYDAC 0180MA005BN/-HYDAC 315622 BN-Betamicron 180 005um £149.57
£179.48 Inc. VAT
0095 MA 005 BN 0095MA005BN 2059431 BN-Betamicron 95 005um £151.30
£181.56 Inc. VAT
0180 MA 010 BN /-HYDAC 0180MA010BN/-HYDAC 315726 BN-Betamicron 180 010um £124.35
£149.22 Inc. VAT
0095 MA 010 BN 0095MA010BN 2059432 BN-Betamicron 95 010um £140.00
£168.00 Inc. VAT
0180 MA 020 BN /-HYDAC 0180MA020BN/-HYDAC 315623 BN-Betamicron 180 020um £124.35
£149.22 Inc. VAT
0080 MA 010 BN 0080MA010BN 1277457 BN-Betamicron 80 010um £85.04
£102.05 Inc. VAT
0160 MA 003 BN 0160MA003BN 314609 BN-Betamicron 160 003um £103.48
£124.18 Inc. VAT
Hydac MG/ MA Spin-on Filter Elements

HYDAC MG/ MA Spin-on Filter Elements

  • Element Type: Spin On
  • Size: 0080, 0160, 0180
  • Operating pressure: 8 bar
  • Types: MG for filters with cartridge connection G (= thread to ISO 228);
    paper filter material only (exception: MF 80: 20 BN) or MA For filters with cartridge connection U (= UN thread)
  • Filtration rating in μm: BN 003, 005, 010, 020 (for MF 80: MA = only 10 μm; MG = 20 μm)
    P 010
  • Filter material: BN Betamicron®
    P Paper (only MF 80 and MF/MFD 160)

FILTER CARTRIDGES:

  • MG: Cartridge connection thread, to ISO 228 Sealing on inside (Note: the seal on the 0080 MA cartridge is also on the inside!)
  • MA: Cartridge connection, UN thread sealing on the outside

" MG and MA" type cartridges are used in mobile filters of the MF and MFD series, in addition to breather filters of the BL series

  • Changing a spin-on element is a relatively clean and simple operation since the bowl and element are a single piece
  • Proper support of the filter media provides high Beta Ratio values (particle removal efficiency) even at high differential pressures
  • The efficiency of many competitive elements drastically deteriorates as the element clogs and differential pressure increases
  • Betamicron® filter media is firmly supported to achieve flow fatigue resistance during significant pressure flow pulsations
  • High quality adhesive is used to bond the seam of the media and endcaps to the media
  • Heavy gauge perforated support tubes are used to provide proper flow distribution and protection against element collapse
