A2FO Series 6 Size 5 to 1000
Fixed displacement axial piston pumps A2FO open circuit series 6x
- All-purpose high pressure pump
- Size: 5 ... 1000
- Nominal pressure up to 400 bar
- Maximum pressure up to 450 bar
- Open circuit
| Part Number | Material Number | No-Show | Price | Add to Parts List |
|---|---|---|---|---|
| A2FO80/61R-VPB05 | R902230063 | 0 | £4,794.13 £5,752.96 Inc. VAT |
|
| A2FO28/61R-VPB05 | R902230054 | 0 | £2,886.82 £3,464.18 Inc. VAT |
|
| A2FO45/61R-VPB05 | R902230058 | 0 | £3,596.54 £4,315.85 Inc. VAT |
|
| A2FO125/61R-VBB05 | R902230049 | 0 | £6,528.48 £7,834.18 Inc. VAT |
|
| A2FO63/61R-VBB05 | R902230061 | 0 | £4,326.00 £5,191.20 Inc. VAT |
|
| A2FO200/63R-VBB05 | R902230053 | 0 | £9,176.53 £11,011.84 Inc. VAT |
|
| A2FO16/61R-VAB06 | R902230050 | 0 | £2,353.82 £2,824.58 Inc. VAT |
|
| A2FO90/61R-VBB05 | R902230065 | 0 | £5,109.97 £6,131.96 Inc. VAT |
|
| A2FO32/61R-VAB05 | R902230056 | 0 | £3,033.46 £3,640.15 Inc. VAT |
|
| A2FO56/61R-PPB05 | R902230059 | 0 | £4,051.50 £4,861.80 Inc. VAT |
|
| A2FO160/61R-VPB05 | R902230051 | 0 | £7,657.44 £9,188.93 Inc. VAT |
|
| A2FO10/61R-VAB06 | R902230046 | 0 | £2,239.14 £2,686.97 Inc. VAT |
|
| A2FO80/61R-VAB05 | R902230064 | 0 | £4,794.13 £5,752.96 Inc. VAT |
|
| A2FO28/61R-VAB05 | R902230055 | 0 | £2,886.82 £3,464.18 Inc. VAT |
|
| A2FO32/61R-VBB05 | R902230057 | 0 | £3,033.46 £3,640.15 Inc. VAT |
|
| A2FO107/61R-PPB05 | R902230047 | 0 | £5,645.79 £6,774.95 Inc. VAT |
|
| A2FO56/61R-VAB05 | R902230060 | 0 | £4,051.50 £4,861.80 Inc. VAT |
|
| A2FO180/61R-VBB05 | R902230052 | 0 | £8,073.88 £9,688.66 Inc. VAT |
|
| A2FO12/61R-VAB06 | R902230048 | 0 | £2,239.14 £2,686.97 Inc. VAT |
|

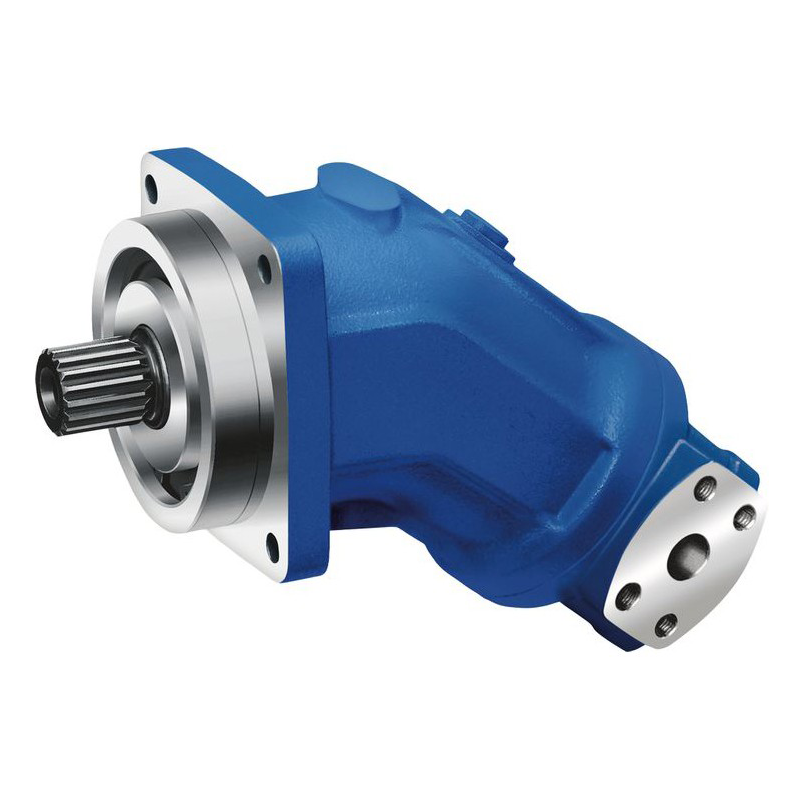

Bosch Rexroth Hydraulic Axial Piston Fixed Pump 5cc to 1000cc
- All-purpose high pressure pump
- Size: 5 ... 1000
- Nominal pressure up to 400 bar
- Maximum pressure up to 450 bar
- Open circuit
Features:
- Fixed pump with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in an open circuit
- For use in mobile and stationary applications
- The flow is proportional to the drive speed and displacement
- The drive shaft bearings are designed for the bearing service life requirements usually encountered in these areas
- High power density
- Small dimensions High total efficiency
- Robust pump with long service life
- Economical design
- One-piece tapered piston with piston rings for sealing
General Function:
The axial piston fixed pump generates a hydraulic fluid flow. It is designed for mobile and stationary applications.
The A2FO is a fixed pump with axial tapered piston rotary group in bent-axis design for hydrostatic drives in open circuits. Flow is proportional to drive speed and displacement. For axial piston units with bent-axis design, the pistons are arranged diagonally with respect to the drive shaft.
In an open circuit, the hydraulic fluid flows from the reservoir to the hydraulic pump from where it is fed via a directional valve to the consumer, e.g. hydraulic motor. From the consumer, the hydraulic fluid flows back to the reservoir via the directional valve.
