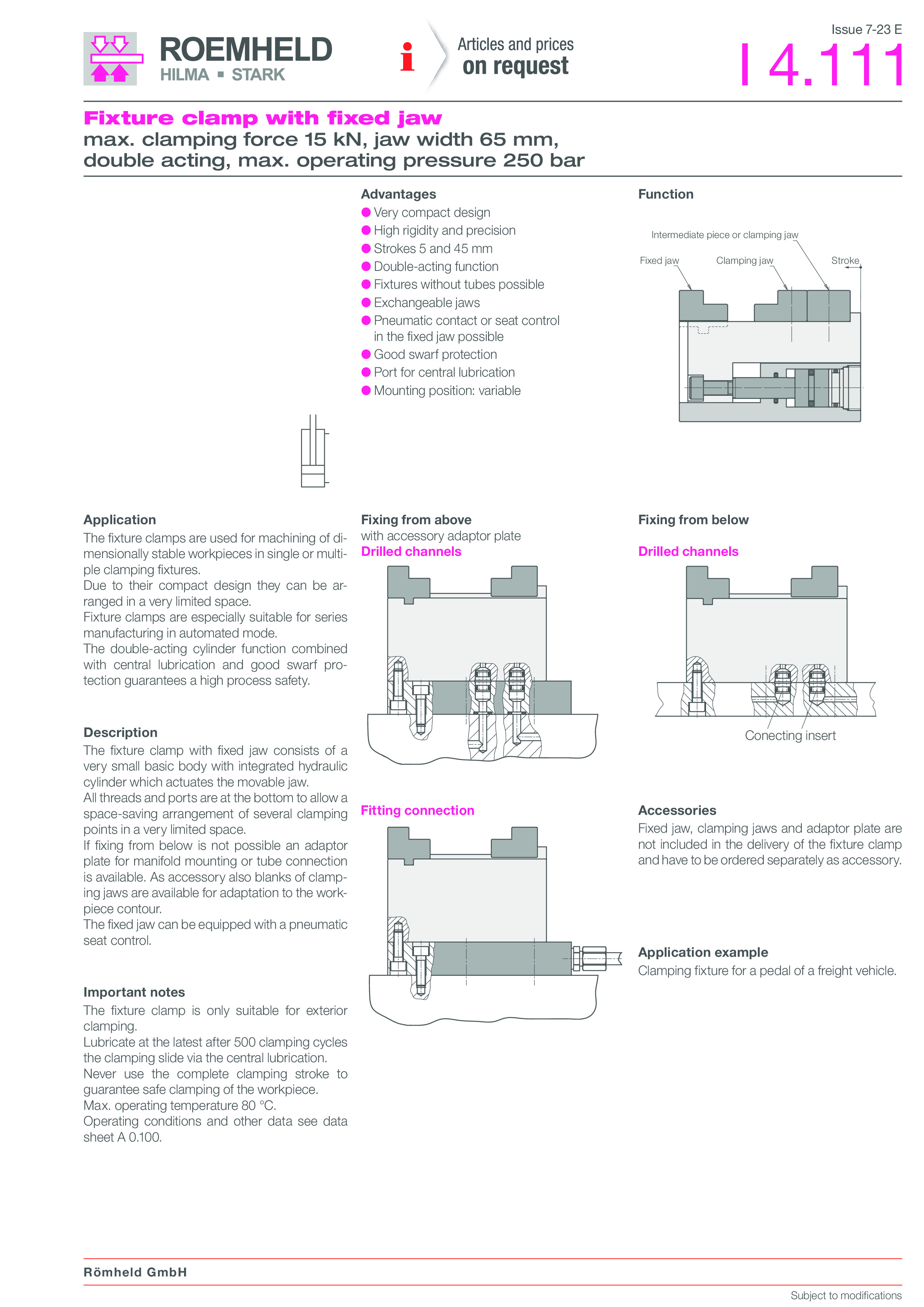

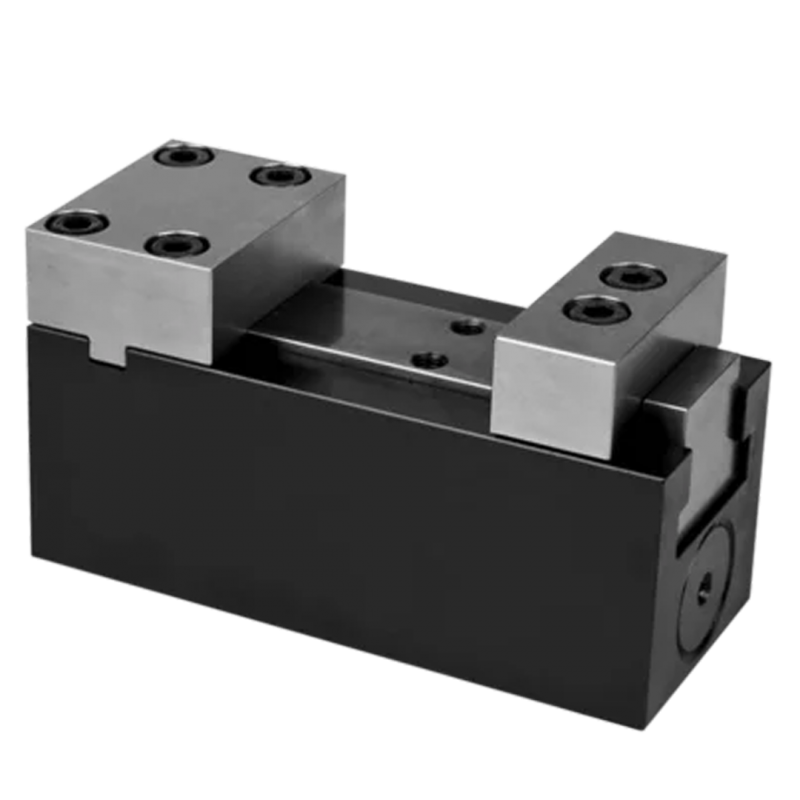

Fixture Clamp with Fixed Jaw 15kN

Fixture Clamps with Fixed Jaw 15kN - ROEMHELD I4.111

• Jaw width: 65 mm
• Max. operating pressure: 250 bar
• Max. clamping force: 15 kN
• Clamping stroke: 5 - 45 mm
• Max. flow rate: 100 cm³/s

Advantages:

• Very compact design
• High rigidity and precision
• Strokes 5 and 45 mm
• Double-acting function
• Fixtures without tubes possible
• Exchangeable jaws
• Pneumatic contact or seat control in the fixed jaw possible
• Good swarf protection
• Port for central lubrication
• Mounting position: variable

Application:

The fixture clamps are used for machining of dimensionally stable workpieces in single or multiple clamping fixtures. Due to their compact design they can be arranged in a very limited space. Fixture clamps are especially suitable for series manufacturing in automated mode. The double-acting cylinder function combined with central lubrication and good swarf protection guarantees a high process safety.

Description:

The fixture clamp with fixed jaw consists of a very small basic body with integrated hydraulic cylinder which actuates the movable jaw. All threads and ports are at the bottom to allow a space-saving arrangement of several clamping points in a very limited space. If fixing from below is not possible an adaptor plate for manifold mounting or tube connection is available. As accessory also blanks of clamping jaws are available for adaptation to the workpiece contour. The fixed jaw can be equipped with a pneumatic seat control.
