Floor Module FMD
ROEMHELD M6.201 Floor Modules FMD for use as base frame for height adjustable working places.
- Max. load: 8,000 N
- with two modulog interfaces
- Adjustable articulated feet

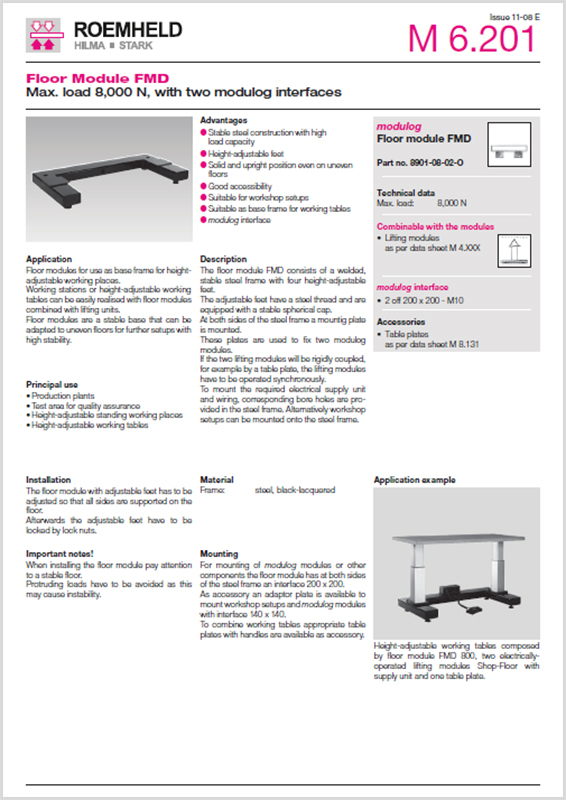

Floor Module FMD - ROEMHELD M6.201
- Max. load: 8,000 N
Advantages:
- Stable steel construction with high load capacity
- Height-adjustable feet
- Solid and upright position even on uneven floors
- Good accessibility
- Suitable for workshop setups
- Suitable as base frame for working tables
- modulog interface
Application:
Floor modules for use as base frame for height-adjustable working places. Working stations or height-adjustable working tables can be easily realised with floor modules combined with lifting units. Floor modules are a stable base that can be adapted to uneven floors for further setups with high stability.
Principal use:
- Production plants
- Test area for quality assurance
- Height-adjustable standing working places
- Height-adjustable working tables
Description:

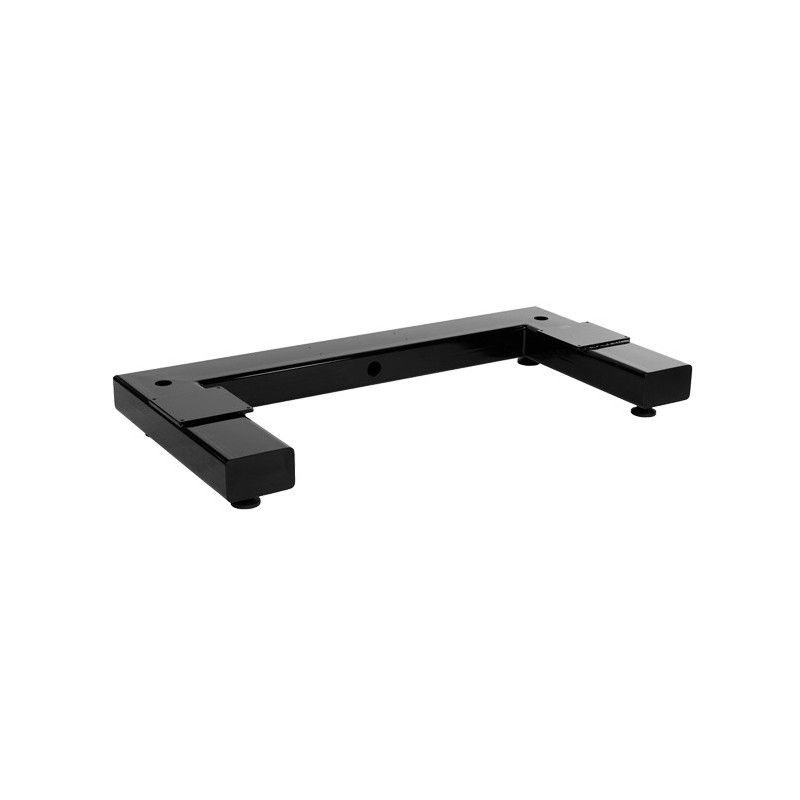

The floor module FMD consists of a welded, stable steel frame with four height-adjustable feet. The adjustable feet have a steel thread and are equipped with a stable spherical cap. At both sides of the steel frame a mountig plate is mounted. These plates are used to fix two modulog modules. If the two lifting modules will be rigidly coupled, for example by a table plate, the lifting modules have to be operated synchronously. To mount the required electrical supply unit and wiring, corresponding bore holes are provided in the steel frame. Alternatively workshop setups can be mounted onto the steel frame.
