Enerpac G-Series Hydraulic Pressure Gauge

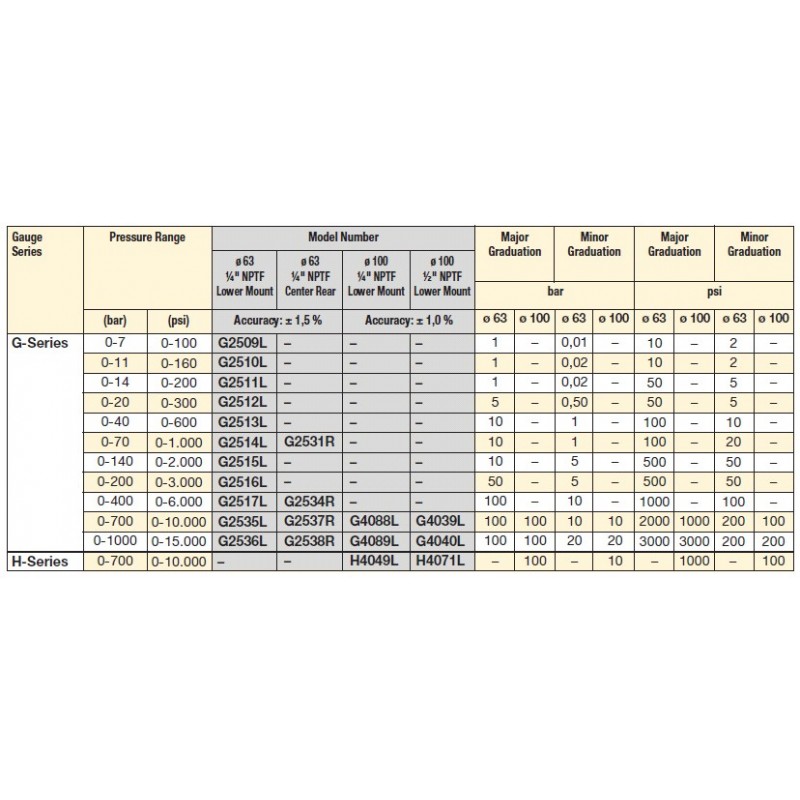

Enerpac G, H-Series, Hydraulic Pressure Gauges Selection Chart

Enerpac G, H-Series Hydraulic Pressure Gauges

Enerpac G, H-Series, hydraulic pressure gauges have dual scale readings calibrated in bar and psi

Gauges available in the following sizes and dimensions:

Pressure Ranges From: 0 - 1000 bar
Available Face Diameters: 63 - 100 mm
Accuracy: ± 1,0 - 1,5%

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	Gauge Selection	Price
G2509L G2509L	G2509L	£111.00 £133.20 Inc. VAT
G2510L G2510L	G2510L	£111.00 £133.20 Inc. VAT
G2511L G2511L	G2511L	£111.00 £133.20 Inc. VAT
G2512L G2512L	G2512L	£111.00 £133.20 Inc. VAT
G2513L G2513L	G2513L	£111.00 £133.20 Inc. VAT
G2514L G2514L	G2514L	£111.00 £133.20 Inc. VAT
G2515L G2515L	G2515L	£117.00 £140.40 Inc. VAT
G2516L G2516L	G2516L	£117.00 £140.40 Inc. VAT
G2517L G2517L	G2517L	£117.00 £140.40 Inc. VAT
G2535L G2535L	G2535L	£117.00 £140.40 Inc. VAT
G2536L G2536L	G2536L	£117.00 £140.40 Inc. VAT
G2531R G2531R	G2531R	£117.00 £140.40 Inc. VAT
G2534R G2534R	G2534R	£117.00 £140.40 Inc. VAT
G2537R G2537R	G2537R	£117.00 £140.40 Inc. VAT
G2538R G2538R	G2538R	£117.00 £140.40 Inc. VAT
G4088L G4088L	G4088L	£267.00 £320.40 Inc. VAT
G4089L G4089L	G4089L	£267.00 £320.40 Inc. VAT
G4039L G4039L	G4039L	£267.00 £320.40 Inc. VAT
G4040L G4040L	G4040L	£267.00 £320.40 Inc. VAT
H4049L H4049L	H4049L	£225.00 £270.00 Inc. VAT
H4071L H4071L	H4071L	£225.00 £270.00 Inc. VAT

G-H-Series_Hydraulic_Pressure_Gauges_EN-GB

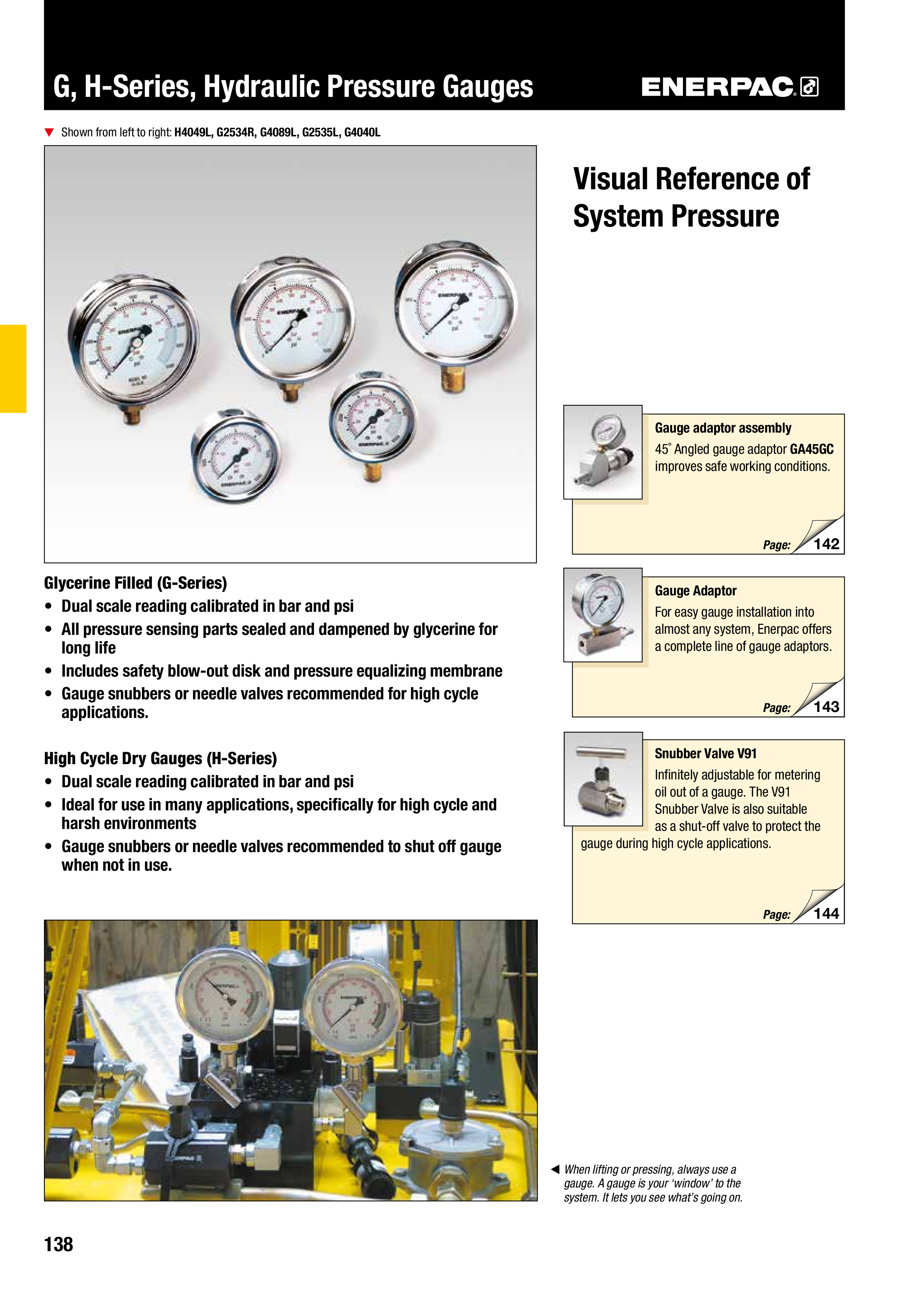

Enerpac G, H-Series Hydraulic Pressure Gauges

Pressure Ranges From: 0 - 1000 bar
Available Face Diameters: 63 - 100 mm
Accuracy: ± 1,0 - 1,5%

Glycerine Filled Hydraulic Pressure Gauges (G-Series)

Dual scale reading calibrated in bar and psi
All pressure sensing parts sealed and dampened by glycerine for long life
Includes safety blow-out disk and pressure equalizing membrane
Gauge snubbers or needle valves recommended for high cycle applications.

High Cycle Dry Hydraulic Pressure Gauges (H-Series)

Dual scale reading calibrated in bar and psi
Ideal for use in many applications, specifically for high cycle and harsh environments
Gauge snubbers or needle valves recommended to shut off gauge when not in use.

Description:

Enerpac gauges are designed primarily to function as a visual measuring device for observing the hydraulic operating condition of your system. The use of a hydraulic gauge is recommended with every hydraulic system to insure that the operating ratings of the hydraulic components within the system are not exceeded.
