Carr Lane Single and Triple Lever-Handle Hubs

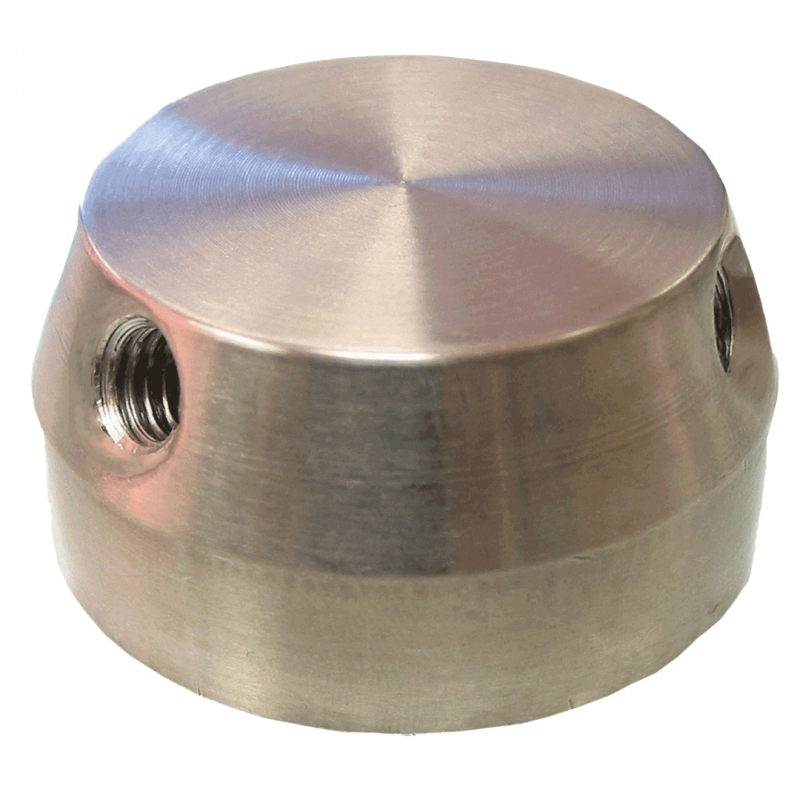

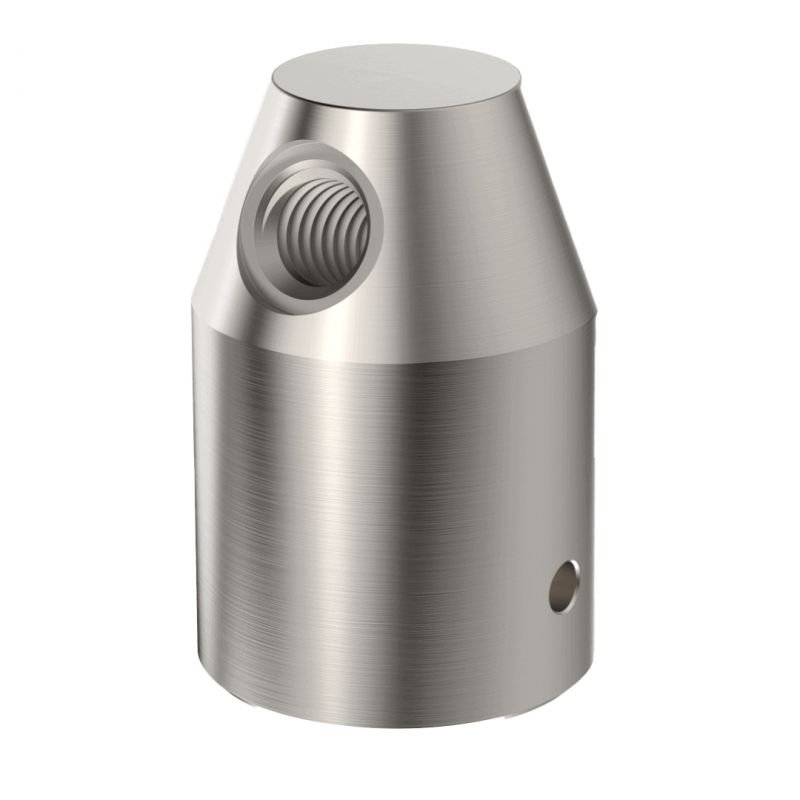

Carr Lane offer a choice of two hub sizes. A single hub offers a hole for a singular lever bar. A triple lever bar hub offers three holes for 3 different lever bars to be inserted into Single and triple. Both designed with a reamed centre hole. Manufactured using stainless steel and well-polished finish. Lever bars and knobs to be ordered separately.
- Thread: 5/16-18 - 3/8-16
- Reamed and Tapped holes
Products
Downloads
Description
| Part Number | Material Number | Thread | Internal Diameter | Hub | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-1160-LHH-S | 5/16-18 | 3/8-16 | Single | £22.63 £27.16 Inc. VAT |
|
|
| CL-116-LHH-S | 5/16-18 | 3/8 | Single | £20.80 £24.96 Inc. VAT |
|
|
| CL-128-LHH-S | 3/8-16 | 1/2 | Single | £24.02 £28.82 Inc. VAT |
|
|
| CL-1280-LHH-S | 3/8-16 | 1/2-13 | Single | £26.53 £31.84 Inc. VAT |
|
|
| CL-328-LHH-S | 3/8-16 | 1/2 | Triple | £37.99 £45.59 Inc. VAT |
|
Carr Lane Single and Triple Lever-Handle Hubs
- Thread: 5/16-18 - 3/8-16
- Reamed and Tapped holes
Order Lever Bar and Knob separately
To assemble a Lever Handle, first choose a Lever Handle Hub, then customize by choosing bar length and knob style. Hubs are made of stainless steel, polished to a beautiful finish. Choice of two hub sizes, each available with a tapped or reamed center hole.
