Hollow Piston Cylinder

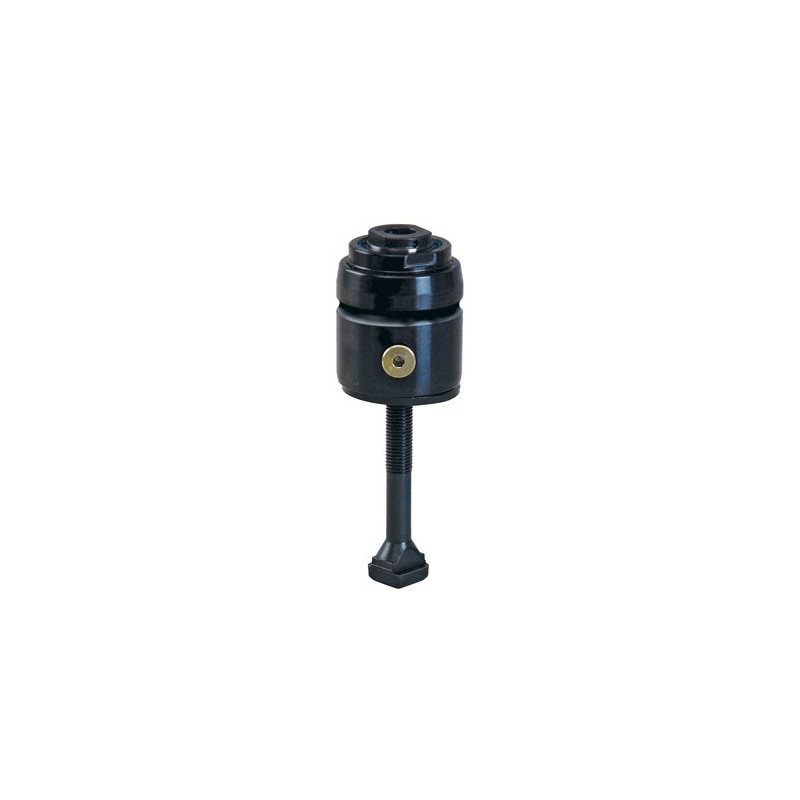

HILMA WZ 3.2130 Single-Acting Hollow Piston Cylinder used for clamping and locking on machines and plants on press beds and rams.
- Max. clamping force: 60 - 104 kN (on request 160 kN)
- For T-slots: 18 - 36 mm
- Piston diameter: 54 - 70 mm
- Stroke: 12 mm
Description
Downloads
Hollow Piston Cylinder - HILMA WZ 3.2130
- Max. clamping force: 60 - 104 kN (on request 160 kN)
- For T-slots: 18 - 36 mm
- Piston diameter: 54 - 70 mm
- Stroke: 12 mm
Applications:
- on press beds and rams
- on machines and equipment for clamping and locking
- when the available space is limited
- when temperatures may reach 120° C
Special features:
- Spherical disk for optimum adaptation to the clamping surface
- T-bolt, pinned
- Ideal power transmission
- Convenient and compact design with gripping surface
- Clamping force of between 60 and 104 kN
- Large clamping stroke
- No colliding edges, smooth die positioning
- Suitable for retrofit
- Hardened and ground piston
- Easy fastening
- Fully utilisable stroke
Function:
The sliding clamp is manually placed on the clamping edge of the die. The die is clamped by applying hydraulic pressure to the piston and mechanically unclamped by spring return. The T-bolt clamps the die on the clamping surface of the press ram or bed.
