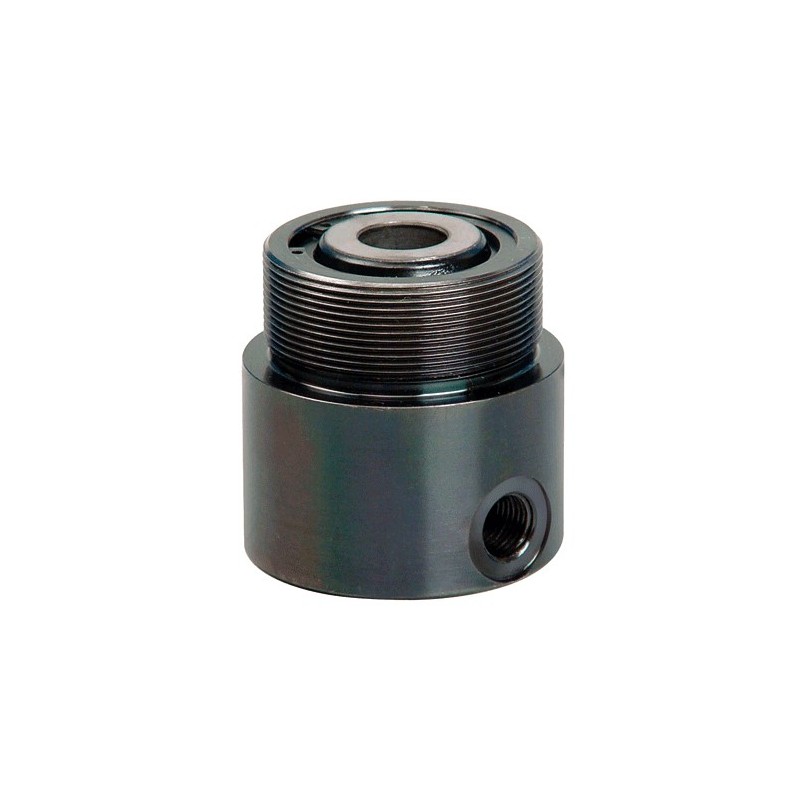

Hollow Piston Cylinders without Spring Return
HILMA WZ 2.1300 Hollow Piston Cylinders without Spring Return
- Clamping force: 34.8 - 137.2 kN
- Clamping stroke: 12 - 15 mm
- Piston restoring force: 0.18 - 0.7 kN
- Piston area: 8.7 - 34.3 cm²
Hollow Piston Cylinders without Spring Return - HILMA WZ 2.1300
- Clamping force: 34.8 - 137.2 kN
- Clamping stroke: 12 - 15 mm
- Piston restoring force: 0.18 - 0.7 kN
- Piston area: 8.7 - 34.3 cm²
Special features:
- Flat and compact design
- Steady piston movement
- Stroke limited even with max. working pressure
- Rapid and easy retrofit
- Ideal power transmission
Application:
In connection with tie rods, lead screws and threaded rods, for clamping and locking dies on presses and machines.
Hollow piston cylinder, single-acting, without spring return, as a pulling or pressing cylinder
Can be attached, screwed or flange-mounted in any position. The clamping force is built up by applying pressure to the piston and the piston is returned by external action. The piston is provided with a through hole and is hardened and ground. The housing is made from heat-treatable steel and its surface is burnished.
