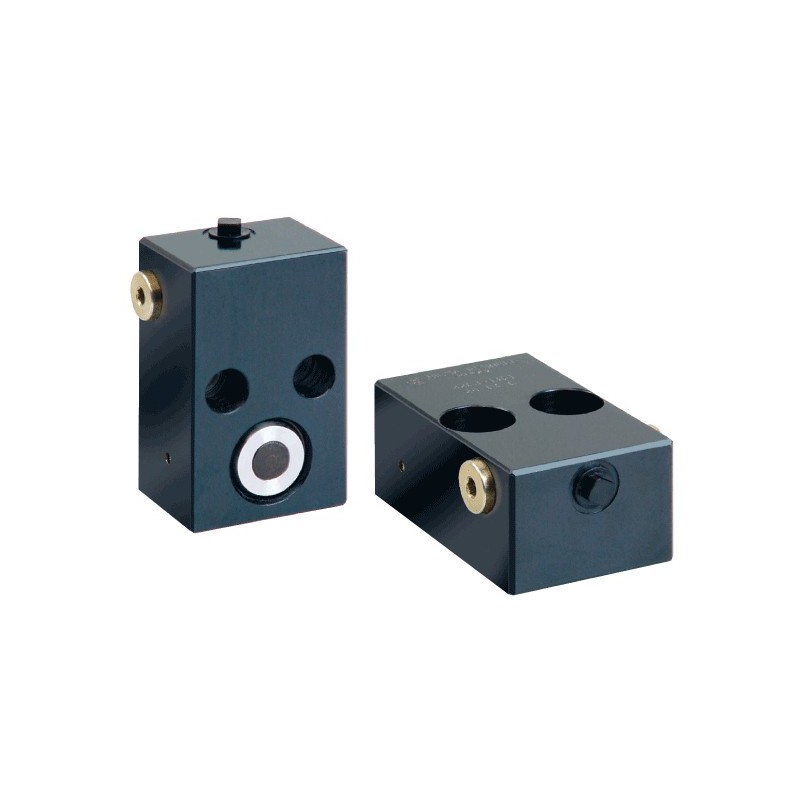

Hilma Sliding Clamp Clamping Block WZ 3.2204

Sliding Clamp Classic Clamping Block

HILMA WZ 3.2204 Sliding Clamps Classic Clamping Block single acting, with spring return max. operating pressure 400 bar, clamping force from 19 to 78 kN

  • Max. clamping force: 19.2 - 78 kN
  • Clamping stroke: 8 - 12 mm
  • Max. temperature 120°C
  • Max. operating pressure 400 bar
Print page

Description

Sliding Clamp Classic Clamping Block - HILMA WZ 3.2204

  • Max. clamping force: 19.2 .. 78 kN
  • Clamping stroke: 8 .. 12 mm
  • Max. temperature 120°C
  • Max. operating pressure 400 bar

Advantages:

  • Optimum force transmission
  • Clamping force from 19 kN up to 78 kN
  • Easy mounting
  • Suitable for large clamping edge tolerances
  • No colliding edges when inserting the dies
  • Total stroke 8 and 12 mm
  • Die standardisation with regard to the width and depth is not required
  • Easy to retrofit

Application:

The "classic" sliding clamp is a very sturdy hydraulic clamping element, used with low space requirements for clamping and locking on machines and plants, on press bed and ram. The use is possible at ambient temperatures up to a maximum of 120 °C.

Description:

Manual positioning of the sliding clamp in the T-slots of the press ram or bed. Clamping on the die clamping edge by the application of hydraulic pressure to the piston and unclamping by spring force. The “classic” sliding clamp consists of a hydraulic clamping block which will be fixed with two screws to a T-slot adapter. The clamping block can also be directly screwed without T-slot adapter and can be ordered separately.
