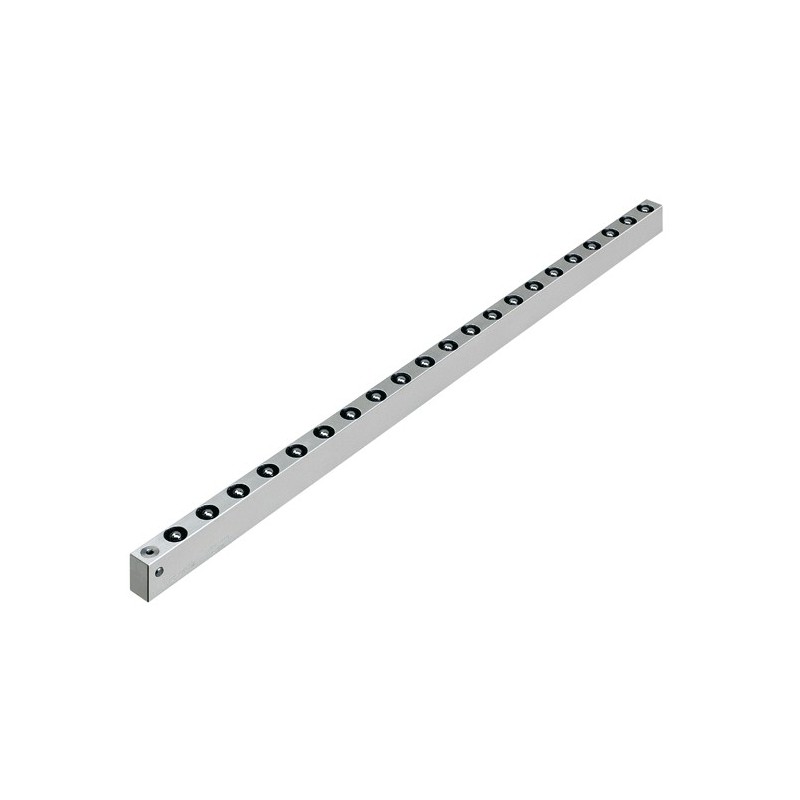

Ball Bars with Spring Pack
HILMA WZ 8.18343 Ball Bars with Spring Pack and Hydrulic Lifting of individual bars for flexible, horizontal movement of dies.
- Any variable length in one-piece design up to 2900 mm
- Suitable for T-slots with a size of 18, 22, 28 or 36 mm
- Single-piece piece length: up to 2900 mm
- Temperature range standard: 100 °C (higher temperatures on request)
Ball Bars with Spring Pack - HILMA WZ 8.18343
HILMA Ball Bars with Spring Pack [WZ 8.18343] and hydraulic lifting of individual bars for lightweight loads for flexible horizontal movement of dies. Under preload, the balls project over the table level by up to 2 mm. The die positioned on the ball bars is not in contact with the table top and can be easily moved and positioned. The basic bodies are made from a high-strength and robust aluminium alloy, with a load-bearing capacity up to 27 kN/m, flexible ball spacing and orientation.
- Any variable length in one-piece design up to 2900 mm
- Suitable for T-slots with a size of 18, 22, 28 or 36 mm
- Single-piece piece length: up to 2900 mm
- Temperature range standard: 100 °C (higher temperatures on request)
Ball bar variations with spring pack, please see the data sheet for part number variations. If the appropriate ball bar for your specific application is not included in the tables of standard bars, our range of variations offers a solution. Fewer balls also means that the ball bar will be offered at a lower price. Select the slot height, the ball spacing and the bar length to create a variation for your application.
If you can’t find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959
