Roller Bars for Medium Loads

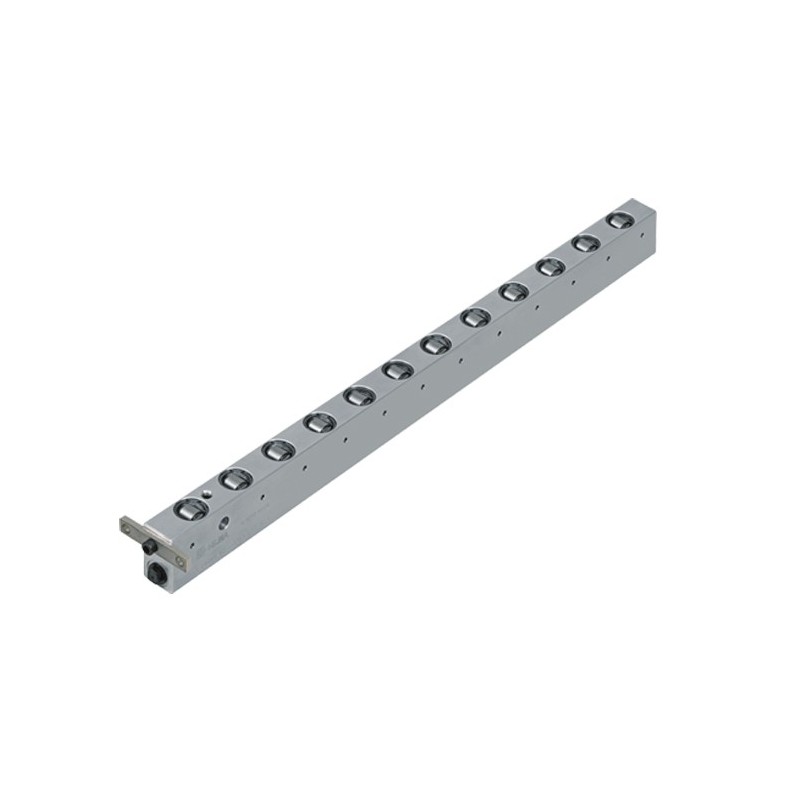

HILMA WZ 8.1834B Hydraulically Lifted Roller Bar for medium loads for linear movement of dies
- Max. operating pressure: 120 bar
- Loads: up to 99 kN/m
- Roller spacing and orientation are flexible
- Single-piece piece length: up to 2900 mm
- For T-slot: 18, 22, 28 or 36 mm
- 13/16" and 1 1/16
Description
Downloads
Roller Bars for Medium Loads - HILMA WZ 8.1834B
- Max. operating pressure: 120 bar
- Loads: up to 99 kN/m
- Roller spacing and orientation are flexible
- Single-piece piece length: up to 2900 mm
- For T-slot: 18, 22, 28 or 36 mm
- 13/16" and 1 1/16"
- Temperature range standard: 100 °C (higher temperatures on request)
Description:
HILMA Hydraulically Lifted Roller Bar for medium loads [WZ 8.1834B] for linear movement of dies. The basic bodies made from a high-strength aluminium alloy with lifting pistons provided below each roller allowing each roller to be lifted individually.
