Roller Bars with Spring Pack

Roller Bars with Spring Pack - HILMA WZ 8.18344

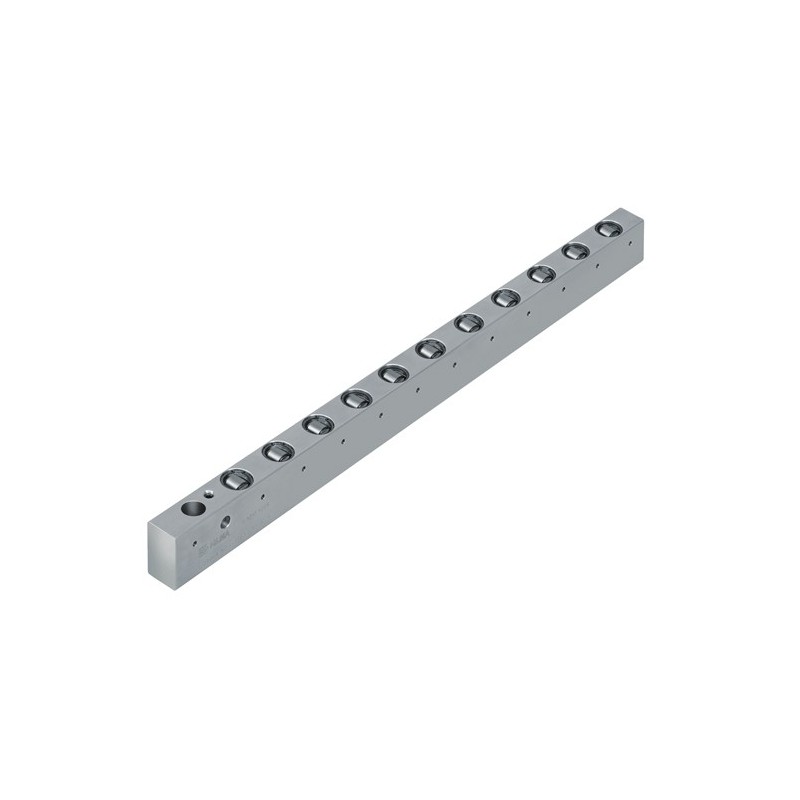

HILMA Roller Bars with Spring Pack [WZ 8.18344], for medium loads and for linear movement of dies. When being preloaded, the rollers project over the table level by up to 2 mm. Function and design similar to spring-loaded ball bars, with increased load-bearing capacity thanks to the use of rollers. The die positioned on the roller bars is not in contact with the table top and can be easily moved and positioned. The basic bodies are made from a high-strength and robust aluminium alloy.

• Load-bearing capacity up to 66 kN/m, flexible roller spacing and orientation
• Any variable length in one-piece design up to 2900mm
• Suitable for T-slots with a size of 18, 22, 28 or 36 mm
• Any variable length and roller spacing can be produced to meet customers' requirements

Applications:

• In the T-slots or rectangular slots of the press bed
• For easy die change
• Roller bars with spring pack are especially suitable for medium loads and for linear movement of dies

Roller bar variations with spring pack. If the appropriate roller bar for your specific application is not included in the table of standard bars, our range of variations offers a solution. Fewer rollers also means that the roller bar will be offered at a lower price. Select the slot height, the roller spacing and the bar length to create the correct variation for your application.
