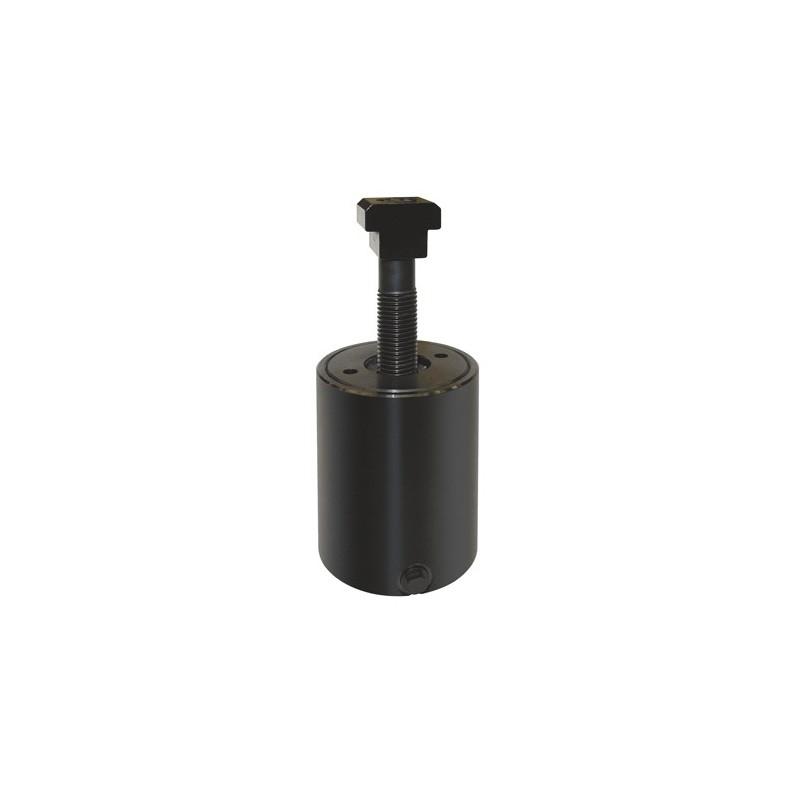

Hollow Piston Spring Clamping Cylinder
HILMA WZ 3.1403 Single-acting Spring Clamping Cylinder, spring clamping, hydraulic unclamping
- Max. clamping force: 50 kN
- For T-slots: 22 - 28 mm
- Unclamping stroke: 2.5 mm
- Unclamping pressure: 175 bar
Hollow Piston Spring Clamping Cylinder - HILMA WZ 3.1403
- Max. clamping force: 50 kN
- For T-slots: 22 - 28 mm
- Unclamping stroke: 2.5 mm
- Unclamping pressure: 175 bar
Advantages:
- Hydraulic supply is only required for unclamping, i.e. for a short time
- Ideal force transmission
- Convenient and compact design with gripping surface
- No interfering edges when inserting the dies
- Easy to retrofit
- Easy installation
Application:
These hollow piston cylinders are used for unpressurised long-term clamping of dies or fixtures on press beds and rams Thanks to their compact design, they can also be used where the available space is limited
Description:
The element is manually placed on the clamping edge of the die. Unclamping by the application of hydraulic pressure to the piston and clamping by spring force. By means of the T-bolt the die is clamped against the clamping surface of the press ram or bed.
