Spring Clamping Cylinder

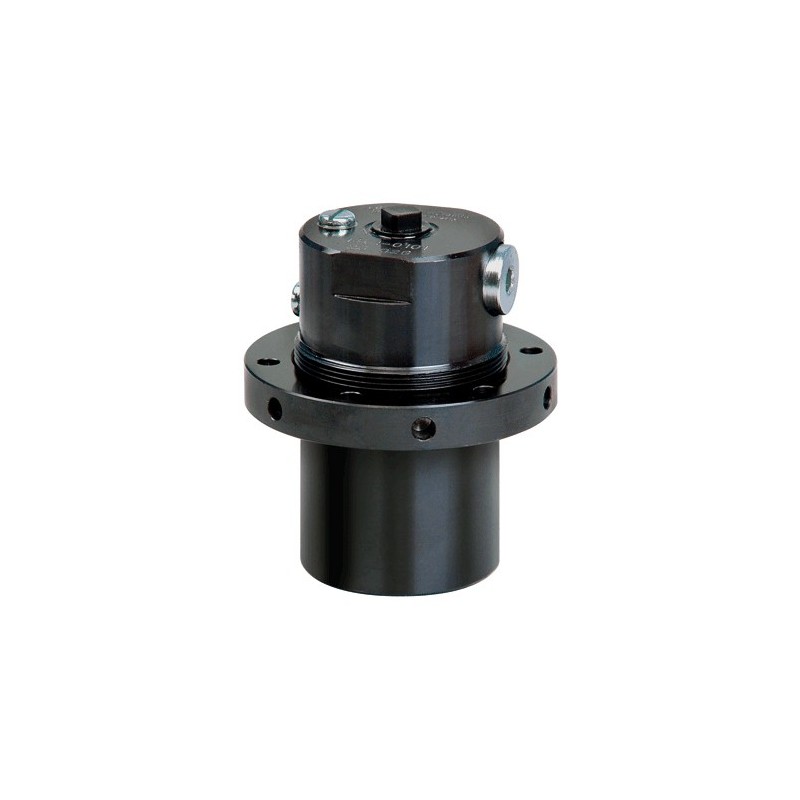

HILMA WZ 2.1400 Pulling Spring Clamp Cylinders with Hydraulic Return
- Max. clamping force: 16 - 400 kN
- Unclamping stroke: 0.5 and 1 mm
- Unclamping pressure: 210 - 300 bar
Description
Downloads
Spring Clamping Cylinder - HILMA WZ 2.1400
- Max. clamping force: 16 - 400 kN
- Unclamping stroke: 0.5 and 1 mm
- Unclamping pressure: 210 - 300 bar
Special features:
- large choice of clamping forces
- long service life ensured by low-friction Belleville springs placed between hardened and ground thrust washers
- piston secured against rotation
- radial and axial oil ports
- rapid and easy installation
Application:
unpressurized long-term clamping of moveable machine parts, dies, fixtures, pallets and workpieces.
Function:
The force of the spring clamping cylinder is mechanically transmitted to the tie rod or the clamping spindle by a preloaded Belleville spring assembly. Hydraulic power is only required for unclamping the clamping cylinder.
