Carr Lane Heavy Duty Swivel Hoist Rings

Heavy-Duty Swivel Hoist Rings are built with a forged lifting ring and a simplified design for easy disassembly. These hoist rings can pivot 180° and swivel 360° simultaneously, enabling lifting from any direction. They are available with both inch and metric threads, offering load capacities up to 30,000 lbs, with many options featuring different bolt lengths. For sizes up to 10,000 lbs, a long ring option is available, providing added reach and compatibility with larger lifting hooks.

  • Load Rating: 550 - 30,000 (lbs)
  • Installation Torque: 5 - 1100 (lbs)
  • Safety Factor = 5.1
Print page

Products
Downloads
Description
Part Number Material Number Type Metric or Imperial Thread Thread Length Price Add to Parts List
CL-33716-SHR-CT CL-33716-SHR-CT Super-Coil Rings Imperial 1-1/2" COIL 7.00 £147.07
£176.48 Inc. VAT
CL-36640-SHR CL-36640-SHR Weld-Mount Rings Imperial 5/8-11 1.63 £201.95
£242.34 Inc. VAT
CL-36650-SHR CL-36650-SHR Weld-Mount Rings Imperial 1-1/2"-6 3.12 £406.22
£487.46 Inc. VAT
CL-36645-SHR CL-36645-SHR Weld-Mount Rings Imperial 1"/8 2.30 £295.55
£354.66 Inc. VAT
CL-36665-SHR CL-36665-SHR Road-Plate Rings Imperial 1-1/2"-6 1.50 On Enquiry
CL-36675-SHR CL-36675-SHR Road-Plate Rings Imperial 1-1/2"-6 1.50 On Enquiry
CL-36660-SHR CL-36660-SHR Road-Plate Rings Imperial 1-1/4"-7 1.00 On Enquiry
CL-36670-SHR CL-36670-SHR Road-Plate Rings Imperial 1-1/4"-7 1.00 On Enquiry
CLM-34616-SHR CLM-34616-SHR Long Ring Metric M16 1.26 £118.49
£142.19 Inc. VAT
CLM-34517-SHR CLM-34517-SHR Long Ring Metric M12 1.26 £118.49
£142.19 Inc. VAT
CL-33161-SHR CL-33161-SHR Long Ring Imperial 7/8-9 1.20 £267.98
£321.58 Inc. VAT
CL-33613-SHR CL-33613-SHR Long Ring Imperial 5/8-11 .75 £118.49
£142.19 Inc. VAT
CL-33167-SHR CL-33167-SHR Long Ring Imperial 1"-8 2.20 £278.05
£333.66 Inc. VAT
CL-33616-SHR CL-33616-SHR Long Ring Imperial 5/8-11 1.25 £118.49
£142.19 Inc. VAT
CLM-34161-SHR CLM-34161-SHR Long Ring Metric M20 1.10 £267.98
£321.58 Inc. VAT
CL-33164-SHR CL-33164-SHR Long Ring Imperial 7/8-9 .95 £267.98
£321.58 Inc. VAT
CL-33505-SHR CL-33505-SHR Long Ring Imperial 1/2-13 1.00 £118.49
£142.19 Inc. VAT
CL-33717-SHR CL-33717-SHR Long Ring Imperial 3/4-10 1.50 £123.14
£147.77 Inc. VAT
CLM-34163-SHR CLM-34163-SHR Long Ring Metric M24 1.50 £267.98
£321.58 Inc. VAT
CL-33165-SHR CL-33165-SHR Long Ring Imperial 1"-8 1.20 £278.05
£333.66 Inc. VAT
CLM-34715-SHR CLM-34715-SHR Long Ring Metric M20 .98 £123.14
£147.77 Inc. VAT
CL-33162-SHR CL-33162-SHR Long Ring Imperial 3/4-10 1.20 £267.98
£321.58 Inc. VAT
CLM-34167-SHR CLM-34167-SHR Long Ring Metric M30 1.89 £278.05
£333.66 Inc. VAT
CLM-34505-SHR CLM-34505-SHR Long Ring Metric M12 .98 £118.49
£142.19 Inc. VAT
CLM-34604-SHR CLM-34604-SHR Long Ring Metric M16 .98 £118.49
£142.19 Inc. VAT
CL-33168-SHR CL-33168-SHR Long Ring Imperial 3/4-10 .95 £267.98
£321.58 Inc. VAT
CLM-34165-SHR CLM-34165-SHR Long Ring Metric M30 1.50 £278.05
£333.66 Inc. VAT
CL-33166-SHR CL-33166-SHR Long Ring Imperial 1"-8 1.45 £278.05
£333.66 Inc. VAT
CL-33604-SHR CL-33604-SHR Long Ring Imperial 5/8-11 1.00 £118.49
£142.19 Inc. VAT
CLM-34717-SHR CLM-34717-SHR Long Ring Metric M20 1.501 £123.14
£147.77 Inc. VAT
CL-33163-SHR CL-33163-SHR Long Ring Imperial 3/4-10 1.45 £267.98
£321.58 Inc. VAT
CL-33513-SHR CL-33513-SHR Long Ring Imperial 1/2-13 .75 £118.49
£142.19 Inc. VAT
CL-33715-SHR CL-33715-SHR Long Ring Imperial 3/4-10 1.00 £123.14
£147.77 Inc. VAT
CLM-34162-SHR CLM-34162-SHR Long Ring Metric M24 1.10 £267.98
£321.58 Inc. VAT
CL-33517-SHR CL-33517-SHR Long Ring Imperial 1/2-13 1.25 £118.49
£142.19 Inc. VAT
CL-33515-SHR CL-33515-SHR Standard Ring Imperial 1/2-13 1.00 £105.34
£126.41 Inc. VAT
CLM-34212-SHR CLM-34212-SHR Standard Ring Metric M8 .63 £86.93
£104.32 Inc. VAT
CL-33716-SHR CL-33716-SHR Standard Ring Imperial 3/4-10 1.50 £109.46
£131.35 Inc. VAT
CL-33312-SHR CL-33312-SHR Standard Ring Imperial 3/8-16 .56 £86.93
£104.32 Inc. VAT
CL-33402-SHR CL-33402-SHR Standard Ring Imperial 1-1/4"-7 1.88 £367.86
£441.43 Inc. VAT
CLM-34103-SHR CLM-34103-SHR Standard Ring Metric M24 M30 £238.20
£285.84 Inc. VAT
CL-33612-SHR CL-33612-SHR Standard Ring Imperial 5/8-11 .75 £105.34
£126.41 Inc. VAT
CLM-34312-SHR CLM-34312-SHR Standard Ring Metric M10 .63 £86.93
£104.32 Inc. VAT
CL-33102-SHR CL-33102-SHR Standard Ring Imperial 3/4-10 1.20 £238.20
£285.84 Inc. VAT
CL-33316-SHR CL-33316-SHR Standard Ring Imperial 1/2-13 1.06 £86.93
£104.32 Inc. VAT
CLM-34107-SHR CLM-34107-SHR Standard Ring Metric M30 M36 £247.16
£296.59 Inc. VAT
CL-33615-SHR CL-33615-SHR Standard Ring Imperial 5/8-11 1.25 £105.34
£126.41 Inc. VAT
CL-33212-SHR CL-33212-SHR Standard Ring Imperial 5/16-18 .56 £86.93
£104.32 Inc. VAT
CL-33105-SHR CL-33105-SHR Standard Ring Imperial 1"-8 1.45 £247.16
£296.59 Inc. VAT
CL-33104-SHR CL-33104-SHR Standard Ring Imperial 7/8-9 .95 £238.20
£285.84 Inc. VAT
CLM-34101-SHR CLM-34101-SHR Standard Ring Metric M20 1.10 £238.20
£285.84 Inc. VAT
CL-33432-SHR CL-33432-SHR Standard Ring Imperial 2"-8 2.96 £713.71
£856.45 Inc. VAT
CLM-34403-SHR CLM-34403-SHR Standard Ring Metric M42 3.15 £713.71
£856.45 Inc. VAT
CL-33424-SHR CL-33424-SHR Standard Ring Imperial 1-1/2"-6 2.63 £423.74
£508.49 Inc. VAT
CLM-34614-SHR CLM-34614-SHR Standard Ring Metric M16 .98 £105.34
£126.41 Inc. VAT
CLM-34714-SHR CLM-34714-SHR Standard Ring Metric M20 .98 £109.46
£131.35 Inc. VAT
CLM-34515-SHR CLM-34515-SHR Standard Ring Metric M12 .98 £105.34
£126.41 Inc. VAT
CL-33214-SHR CL-33214-SHR Standard Ring Imperial 5/16-18 1.06 £86.93
£104.32 Inc. VAT
CL-33107-SHR CL-33107-SHR Standard Ring Imperial 1"-8 2.20 £247.16
£296.59 Inc. VAT
CL-33101-SHR CL-33101-SHR Standard Ring Imperial 7/8-9 1.20 £238.20
£285.84 Inc. VAT
CLM-34102-SHR CLM-34102-SHR Standard Ring Metric M24 1.10 £238.20
£285.84 Inc. VAT
CL-33516-SHR CL-33516-SHR Standard Ring Imperial 1/2-13 1.25 £105.34
£126.41 Inc. VAT
CLM-34214-SHR CLM-34214-SHR Standard Ring Metric M8 .83 £86.93
£104.32 Inc. VAT
CL-33108-SHR CL-33108-SHR Standard Ring Imperial 3/4-10 .95 £238.20
£285.84 Inc. VAT
CLM-34615-SHR CLM-34615-SHR Standard Ring Metric M16 1.26 £105.34
£126.41 Inc. VAT
CL-33314-SHR CL-33314-SHR Standard Ring Imperial 3/8-16 1.06 £86.93
£104.32 Inc. VAT
CL-33401-SHR CL-33401-SHR Standard Ring Imperial 1-1/4"-7 2.63 £367.86
£441.43 Inc. VAT
CLM-34105-SHR CLM-34105-SHR Standard Ring Metric M30 1.50 £247.16
£296.59 Inc. VAT
CL-33614-SHR CL-33614-SHR Standard Ring Imperial 5/8-11 1.00 £105.34
£126.41 Inc. VAT
CLM-34314-SHR CLM-34314-SHR Standard Ring Metric M10 1.02 £86.93
£104.32 Inc. VAT
CL-33112-SHR CL-33112-SHR Standard Ring Imperial 1/4-20 .56 £86.93
£104.32 Inc. VAT
CL-33106-SHR CL-33106-SHR Standard Ring Imperial 1"-8 1.20 £247.16
£296.59 Inc. VAT
CL-33103-SHR CL-33103-SHR Standard Ring Imperial 3/4-10 1.45 £238.20
£285.84 Inc. VAT
CLM-34716-SHR CLM-34716-SHR Standard Ring Metric M20 M20 £109.46
£131.35 Inc. VAT
CL-33512-SHR CL-33512-SHR Standard Ring Imperial 1/2-13 .75 £105.34
£126.41 Inc. VAT
CLM-34401-SHR CLM-34401-SHR Standard Ring Metric M30 2.64 £367.86
£441.43 Inc. VAT
CL-33714-SHR CL-33714-SHR Standard Ring Imperial 3/4-10 1.00 £109.46
£131.35 Inc. VAT
CLM-34516-SHR CLM-34516-SHR Standard Ring Metric M12 1.26 £105.34
£126.41 Inc. VAT
CLM-34402-SHR CLM-34402-SHR Standard Ring Metric M36 2.64 £423.74
£508.49 Inc. VAT
CLM-34404-SHR CLM-34404-SHR Standard Ring Metric M48 3.15 £713.71
£856.45 Inc. VAT
CL-33420-SHR CL-33420-SHR Standard Ring Imperial 1-3/8"-6 2.63 £437.50
£525.00 Inc. VAT
CL-33427-SHR CL-33427-SHR Standard Ring Imperial 2"-4-1/2 2.96 £713.71
£856.45 Inc. VAT
Heavy Duty Swivel Hoist Rings

Carr Lane Heavy Duty Swivel Hoist Rings

  • Load Rating: 550 - 30,000 (lbs)
  • Installation Torque: 5 - 1100 (lbs)
  • Safety Factor = 5.1
  • Patent no. 4,570,987, 4,641,986, 5,405,210, and other patents pending

Heavy-Duty® Swivel Hoist Rings feature a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. The long-ring version of the Heavy-Duty® Swivel Hoist Rings has the same features, however provides extra reach and allows lifting from any direction.

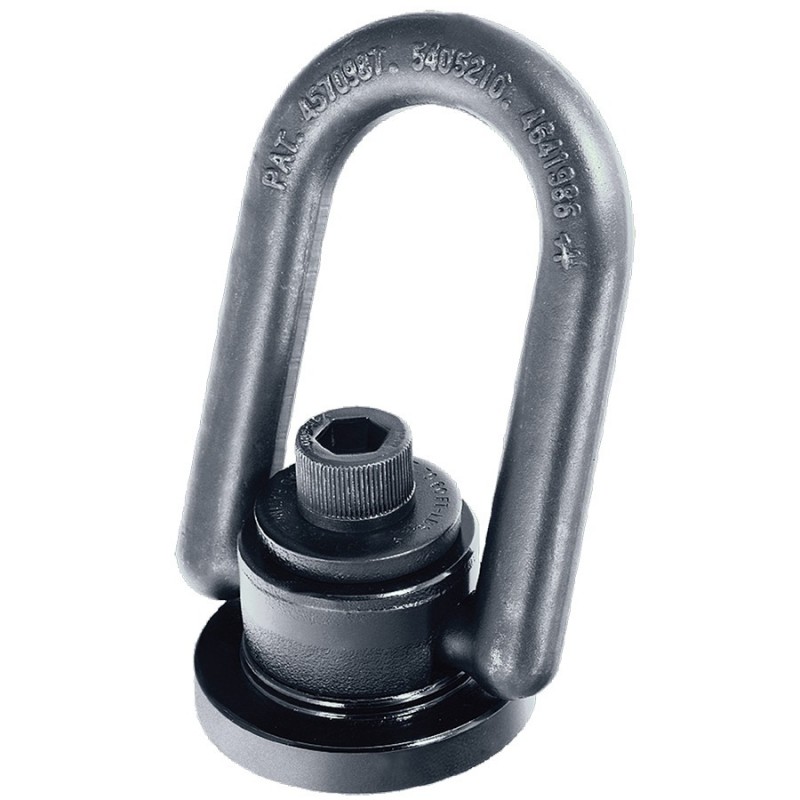

Heavy-Duty® Road-Plate Swivel Hoist Rings have a shorter, larger-diameter bolt, ideal for lifting heavy road plates. Forged alloy-steel ring pivots 180° and swivels 360° simultaneously to allow lifting from any direction, while Weld-Mount Heavy-Duty® Swivel Hoist Rings are mounted by welding, again with forged alloy-steel ring that pivots 180° and swivels 360° simultaneously to allow lifting from any direction.

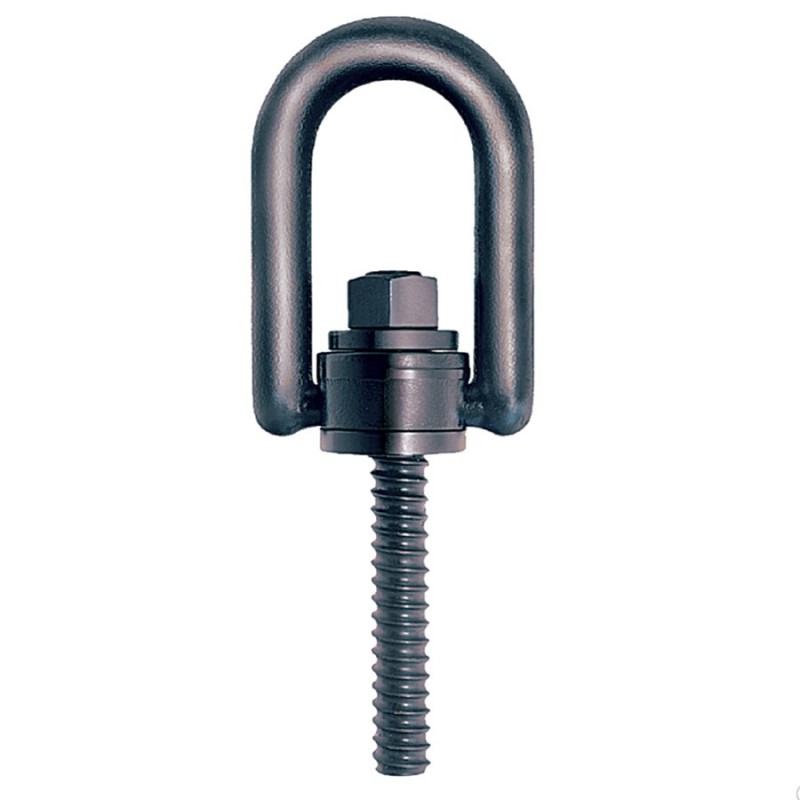

Heavy-Duty Super-Coil™ Swivel Hoist Rings are furnished with a coil bolt, ideal for temporary attachment to steel structures and construction material. Forged alloy-steel ring pivots 180° and swivels 360° simultaneously to allow lifting from any direction.
