Carr Lane Hand Knob Assemblies

Range of Carr Lane Assemblies including Hand Knob, Swivel Washer and Knob Shoe avaible in a variety of sizes

  • Metric and Imperial sizes
  • Thread: 1/4-20 - 3/4-10 or M6 - M20
Print page

Products
Downloads
Description
Part Number Material Number Type Metric or Imperial Length Thread Price Add to Parts List
CL-2B-HK2T CL-2B-HK2T Hand Knob Assembly Imperial .98 1/4-20 £31.32
£37.58 Inc. VAT
CLM-7B-HK4T CLM-7B-HK4T Hand Knob Assembly Metric 1.57 M12 £41.63
£49.96 Inc. VAT
CL-10-HK6T CL-10-HK6T Hand Knob Assembly Imperial .98 5/8-11 £43.60
£52.32 Inc. VAT
CLM-1-HK2T CLM-1-HK2T Hand Knob Assembly Metric .98 M6 £31.57
£37.88 Inc. VAT
CL-5B-HK4T CL-5B-HK4T Hand Knob Assembly Imperial .98 3/8-16 £25.54
£30.65 Inc. VAT
CLM-12-HK6T CLM-12-HK6T Hand Knob Assembly Metric 2.95 M20 £54.85
£65.82 Inc. VAT
CLM-5B-HK4T CLM-5B-HK4T Hand Knob Assembly Metric 1.57 M10 £33.26
£39.91 Inc. VAT
CL-7C-HK4T CL-7C-HK4T Hand Knob Assembly Imperial .98 1/2-13 £32.94
£39.53 Inc. VAT
CL-3-HK2T CL-3-HK2T Hand Knob Assembly Imperial .98 5/16-18 £24.32
£29.18 Inc. VAT
CLM-7-HK4T CLM-7-HK4T Hand Knob Assembly Metric 2.56 M12 £45.06
£54.07 Inc. VAT
CLM-3A-HK2T CLM-3A-HK2T Hand Knob Assembly Metric .98 M8 £30.90
£37.08 Inc. VAT
CL-6-HK4T CL-6-HK4T Hand Knob Assembly Imperial .98 3/8-16 £30.46
£36.55 Inc. VAT
CL-2-HK2T CL-2-HK2T Hand Knob Assembly Imperial .98 1/4-20 £24.19
£29.03 Inc. VAT
CLM-6-HK4T CLM-6-HK4T Hand Knob Assembly Metric 2.56 M10 £40.34
£48.41 Inc. VAT
CL-8-HK4T CL-8-HK4T Hand Knob Assembly Imperial .98 1/2-13 £35.89
£43.07 Inc. VAT
CL-4A-HK2T CL-4A-HK2T Hand Knob Assembly Imperial .98 5/16-18 £31.94
£38.33 Inc. VAT
CLM-9-HK6T CLM-9-HK6T Hand Knob Assembly Metric 1.77 M16 £48.01
£57.61 Inc. VAT
CLM-4-HK2T CLM-4-HK2T Hand Knob Assembly Metric 2.56 M8 £31.32
£37.58 Inc. VAT
CL-7A-HK4T CL-7A-HK4T Hand Knob Assembly Imperial .98 1/2-13 £28.64
£34.37 Inc. VAT
CL-5A-HK4T CL-5A-HK4T Hand Knob Assembly Imperial .98 3/8-16 £25.61
£30.73 Inc. VAT
CLM-10-HK6T CLM-10-HK6T Hand Knob Assembly Metric 2.95 M16 £49.63
£59.56 Inc. VAT
CLM-5A-HK4T CLM-5A-HK4T Hand Knob Assembly Metric .98 M10 £33.26
£39.91 Inc. VAT
CL-7B-HK4T CL-7B-HK4T Hand Knob Assembly Imperial .98 1/2-13 £29.29
£35.15 Inc. VAT
CL-3A-HK2T CL-3A-HK2T Hand Knob Assembly Imperial .98 5/16-18 £24.54
£29.45 Inc. VAT
CLM-7C-HK4T CLM-7C-HK4T Hand Knob Assembly Metric 1.97 M12 £43.39
£52.07 Inc. VAT
CL-12-HK6T CL-12-HK6T Hand Knob Assembly Imperial .98 3/4-10 £55.86
£67.03 Inc. VAT
CLM-2-HK2T CLM-2-HK2T Hand Knob Assembly Metric 1.57 M6 £32.99
£39.59 Inc. VAT
CL-5-HK4T CL-5-HK4T Hand Knob Assembly Imperial .98 3/8-16 £27.88
£33.46 Inc. VAT
CL-1-HK2T CL-1-HK2T Hand Knob Assembly Imperial .98 1/4-20 £21.19
£25.43 Inc. VAT
CLM-5-HK4T CLM-5-HK4T Hand Knob Assembly Metric 1.97 M10 £33.56
£40.27 Inc. VAT
CL-7-HK4T CL-7-HK4T Hand Knob Assembly Imperial .98 1/2-13 £32.50
£39.00 Inc. VAT
CL-4-HK2T CL-4-HK2T Hand Knob Assembly Imperial .98 5/16-18 £25.26
£30.31 Inc. VAT
CLM-8-HK4T CLM-8-HK4T Hand Knob Assembly Metric 2.95 M12 £45.50
£54.60 Inc. VAT
CLM-3-HK2T CLM-3-HK2T Hand Knob Assembly Metric 1.77 M8 £30.32
£36.38 Inc. VAT
CL-6A-HK4T CL-6A-HK4T Hand Knob Assembly Imperial .98 3/8-16 £34.38
£41.26 Inc. VAT
CL-2A-HK2T CL-2A-HK2T Hand Knob Assembly Imperial .98 1/4-20 £29.36
£35.23 Inc. VAT
CLM-7A-HK4T CLM-7A-HK4T Hand Knob Assembly Metric .98 M12 £41.30
£49.56 Inc. VAT
CL-9-HK6T CL-9-HK6T Hand Knob Assembly Imperial .98 5/8-11 £42.13
£50.56 Inc. VAT
CL-9-SHK6T CL-9-SHK6T Swivel-Washer Hand Knob Assembly Imperial .98 5/8-11 £40.31
£48.37 Inc. VAT
CL-5A-SHK4T CL-5A-SHK4T Swivel-Washer Hand Knob Assembly Imperial .98 3/8-16 £24.91
£29.89 Inc. VAT
CL-7B-SHK4T CL-7B-SHK4T Swivel-Washer Hand Knob Assembly Imperial .98 1/2-13 £28.88
£34.66 Inc. VAT
CL-3A-SHK2T CL-3A-SHK2T Swivel-Washer Hand Knob Assembly Imperial .98 5/16-18 £21.73
£26.08 Inc. VAT
CL-12-SHK6T CL-12-SHK6T Swivel-Washer Hand Knob Assembly Imperial .98 3/4-10 £81.18
£97.42 Inc. VAT
CL-5-SHK4T CL-5-SHK4T Swivel-Washer Hand Knob Assembly Imperial .98 3/8-16 £27.16
£32.59 Inc. VAT
CL-1-SHK2T CL-1-SHK2T Swivel-Washer Hand Knob Assembly Imperial .98 1/4-20 £19.79
£23.75 Inc. VAT
CL-7-SHK4T CL-7-SHK4T Swivel-Washer Hand Knob Assembly Imperial .98 1/2-13 £32.05
£38.46 Inc. VAT
CL-4-SHK2T CL-4-SHK2T Swivel-Washer Hand Knob Assembly Imperial .98 5/16-18 £25.60
£30.72 Inc. VAT
CL-6A-SHK4T CL-6A-SHK4T Swivel-Washer Hand Knob Assembly Imperial .98 3/8-16 £30.25
£36.30 Inc. VAT
CL-2A-SHK2T CL-2A-SHK2T Swivel-Washer Hand Knob Assembly Imperial .98 1/4-20 £24.73
£29.68 Inc. VAT
CL-7A-SHK4T CL-7A-SHK4T Swivel-Washer Hand Knob Assembly Imperial .98 1/2-13 £28.24
£33.89 Inc. VAT
CL-2B-SHK2T CL-2B-SHK2T Swivel-Washer Hand Knob Assembly Imperial .98 1/4-20 £26.42
£31.70 Inc. VAT
CL-10-SHK6T CL-10-SHK6T Swivel-Washer Hand Knob Assembly Imperial .98 5/8-11 £43.39
£52.07 Inc. VAT
CL-5B-SHK4T CL-5B-SHK4T Swivel-Washer Hand Knob Assembly Imperial .98 3/8-16 £25.22
£30.26 Inc. VAT
CL-7C-SHK4T CL-7C-SHK4T Swivel-Washer Hand Knob Assembly Imperial .98 1/2-13 £29.64
£35.57 Inc. VAT
CL-3-SHK2T CL-3-SHK2T Swivel-Washer Hand Knob Assembly Imperial .98 5/16-18 £22.52
£27.02 Inc. VAT
CL-6-SHK4T CL-6-SHK4T Swivel-Washer Hand Knob Assembly Imperial .98 3/8-16 £27.77
£33.32 Inc. VAT
CL-2-SHK2T CL-2-SHK2T Swivel-Washer Hand Knob Assembly Imperial .98 1/4-20 £21.64
£25.97 Inc. VAT
CL-8-SHK4T CL-8-SHK4T Swivel-Washer Hand Knob Assembly Imperial .98 1/2-13 £35.26
£42.31 Inc. VAT
CL-4A-SHK2T CL-4A-SHK2T Swivel-Washer Hand Knob Assembly Imperial .98 5/16-18 £26.28
£31.54 Inc. VAT
CL-13-KSA CL-13-KSA Knob Shoe Assembly Imperial 4-13/16 5/8-11 £61.20
£73.44 Inc. VAT
CL-3-KSA CL-3-KSA Knob Shoe Assembly Imperial 1-1/2 3/8-16 £30.88
£37.06 Inc. VAT
CLM-4-KSA CLM-4-KSA Knob Shoe Assembly Metric .98 M8 £34.94
£41.93 Inc. VAT
CL-8-KSA CL-8-KSA Knob Shoe Assembly Imperial 2-13/16 1/2-13 £42.66
£51.19 Inc. VAT
CLM-10-KSA CLM-10-KSA Knob Shoe Assembly Metric .98 M16 £61.01
£73.21 Inc. VAT
CL-16-KSA CL-16-KSA Knob Shoe Assembly Imperial 4-13/16 3/4-10 £73.45
£88.14 Inc. VAT
CL-4A-KSA CL-4A-KSA Knob Shoe Assembly Imperial 2 3/8-16 £14.66
£17.59 Inc. VAT
CLM-6-KSA CLM-6-KSA Knob Shoe Assembly Metric .98 M10 £43.36
£52.03 Inc. VAT
CL-10-KSA CL-10-KSA Knob Shoe Assembly Imperial 4-5/16 1/2-13 £47.50
£57.00 Inc. VAT
CL-2-KSA CL-2-KSA Knob Shoe Assembly Imperial 2 1/4-20 £31.22
£37.46 Inc. VAT
CLM-2-KSA CLM-2-KSA Knob Shoe Assembly Metric .98 M6 £32.65
£39.18 Inc. VAT
CL-6-KSA CL-6-KSA Knob Shoe Assembly Imperial 2-13/16 3/8-16 £39.66
£47.59 Inc. VAT
CLM-8-KSA CLM-8-KSA Knob Shoe Assembly Metric .98 M12 £51.24
£61.49 Inc. VAT
CL-7-KSA CL-7-KSA Knob Shoe Assembly Imperial 3-9/16 3/8-16 £41.09
£49.31 Inc. VAT
CLM-9-KSA CLM-9-KSA Knob Shoe Assembly Metric .98 M16 £60.73
£72.88 Inc. VAT
CL-14-KSA CL-14-KSA Knob Shoe Assembly Imperial 3-5/16 3/4-10 £64.00
£76.80 Inc. VAT
CL-4-KSA CL-4-KSA Knob Shoe Assembly Imperial 2-1/4 3/8-16 £31.18
£37.42 Inc. VAT
CLM-5-KSA CLM-5-KSA Knob Shoe Assembly Metric .98 M10 £36.59
£43.91 Inc. VAT
CL-9-KSA CL-9-KSA Knob Shoe Assembly Imperial 3-9/16 1/2-13 £42.94
£51.53 Inc. VAT
CL-1-KSA CL-1-KSA Knob Shoe Assembly Imperial 1-1/4 1/4-20 £27.96
£33.55 Inc. VAT
CLM-1-KSA CLM-1-KSA Knob Shoe Assembly Metric .98 M6 £32.52
£39.02 Inc. VAT
CL-5-KSA CL-5-KSA Knob Shoe Assembly Imperial 2-1/16 3/8-16 £36.59
£43.91 Inc. VAT
CLM-7-KSA CLM-7-KSA Knob Shoe Assembly Metric .98 M12 £47.54
£57.05 Inc. VAT
CL-11-KSA CL-11-KSA Knob Shoe Assembly Imperial 3-5/16 5/8-11 £55.39
£66.47 Inc. VAT
CL-2A-KSA CL-2A-KSA Knob Shoe Assembly Imperial 2 1/4-20 £13.88
£16.66 Inc. VAT
CLM-3-KSA CLM-3-KSA Knob Shoe Assembly Metric .98 M8 £33.58
£40.30 Inc. VAT
Knobs

Carr Lane Hand Knob Assemblies

  • Metric and Imperial sizes
  • Thread: 1/4-20 - 3/4-10 or M6 - M20

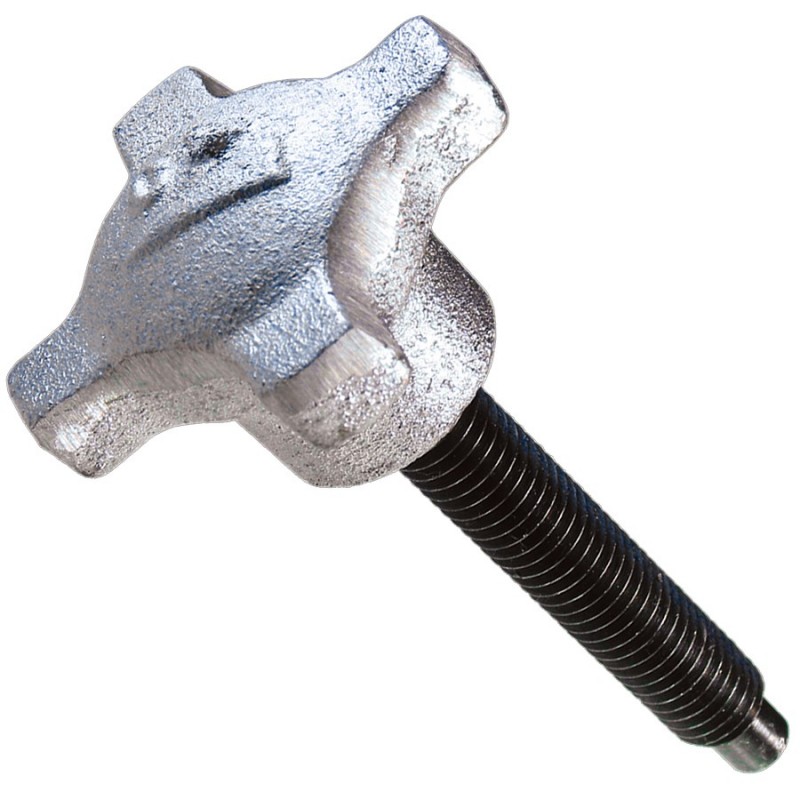

Hand Knob Assemblies

Classic, easy-to-grip aluminum knob with an integral steel clamping screw. Four-prong design provides a firm grip for applications requiring quick tightening and high torque, with a chouice of three knob sizes, several threads and thread lengths.

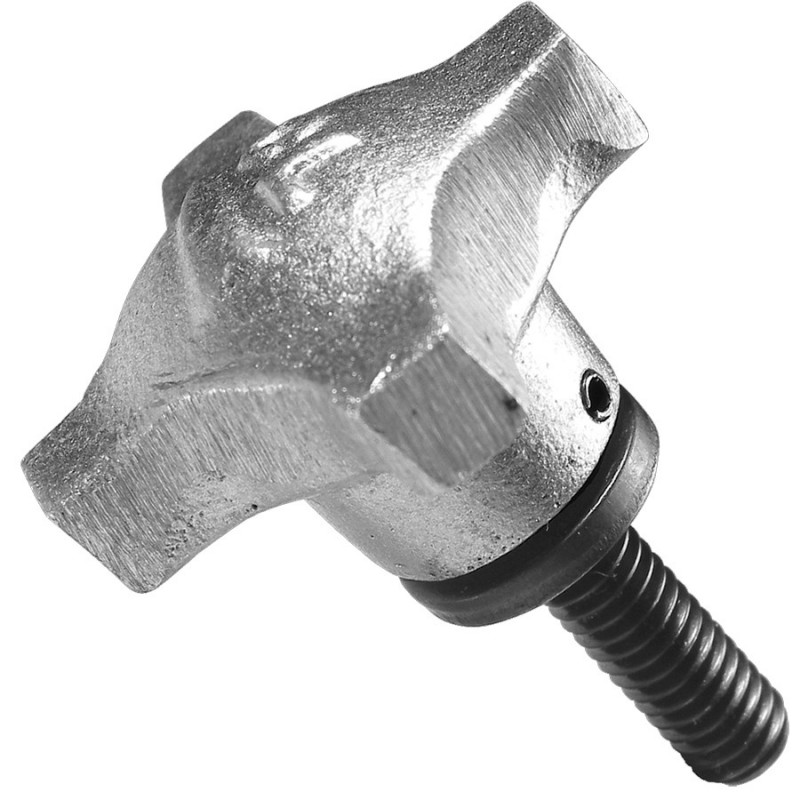

Swivel Washer Hand Knob Assemblies

Hand-knob assembly with a captive, freely rotating washer to prevent marring in clamping applications. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. With a plain end screw with no dogpoint and a choice of three knob sizes with several threads and thread lengths.

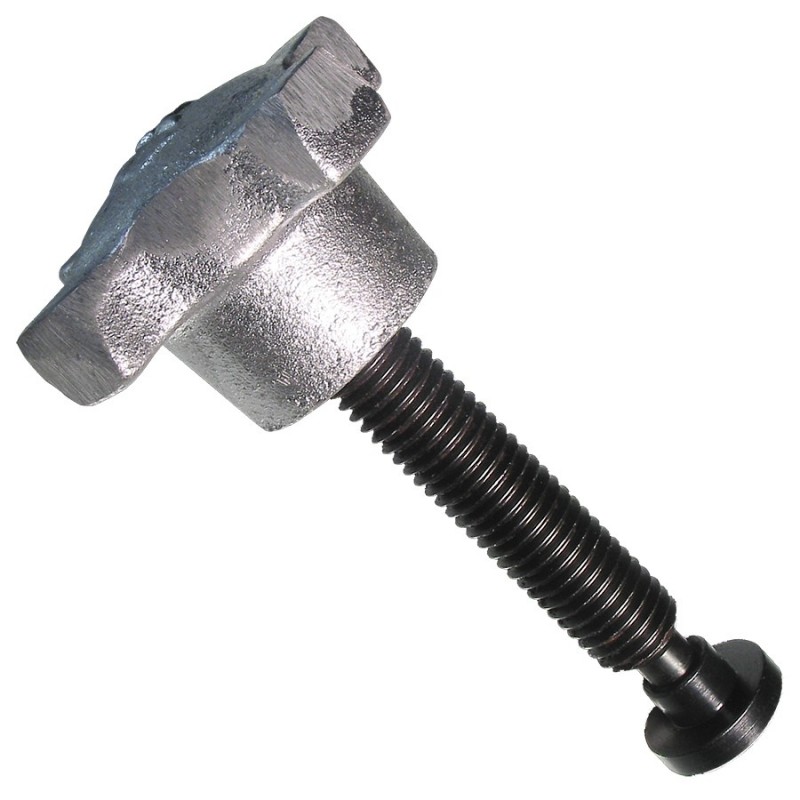

Knob Shoe Assemblies

This hand-knob assembly features an integral steel clamping screw with a removable swivel foot, again with four-prong design, a firm grip is provided for applications requiring quick tightening and high torque. With a choice of four knob sizes, with several threads and thread lengths.

Knob Shoe Assemblies use our patented left-handthread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin® feet are optional.
