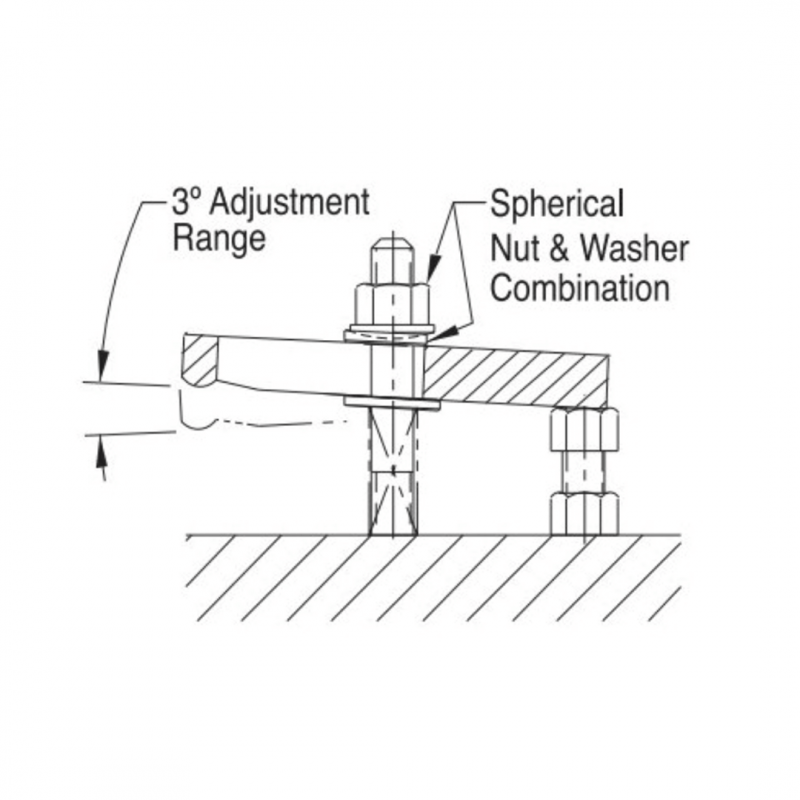

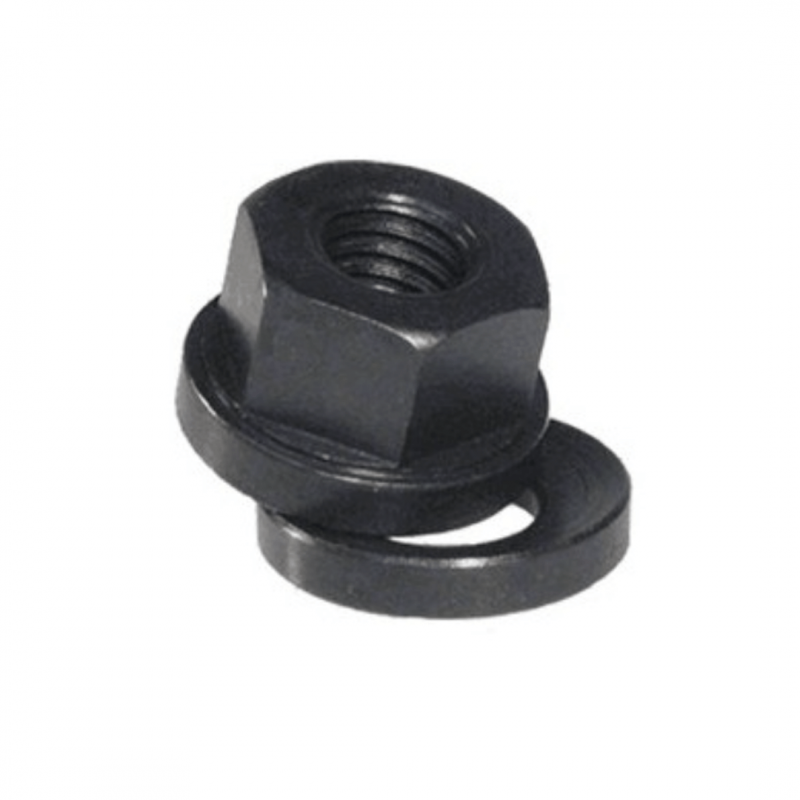

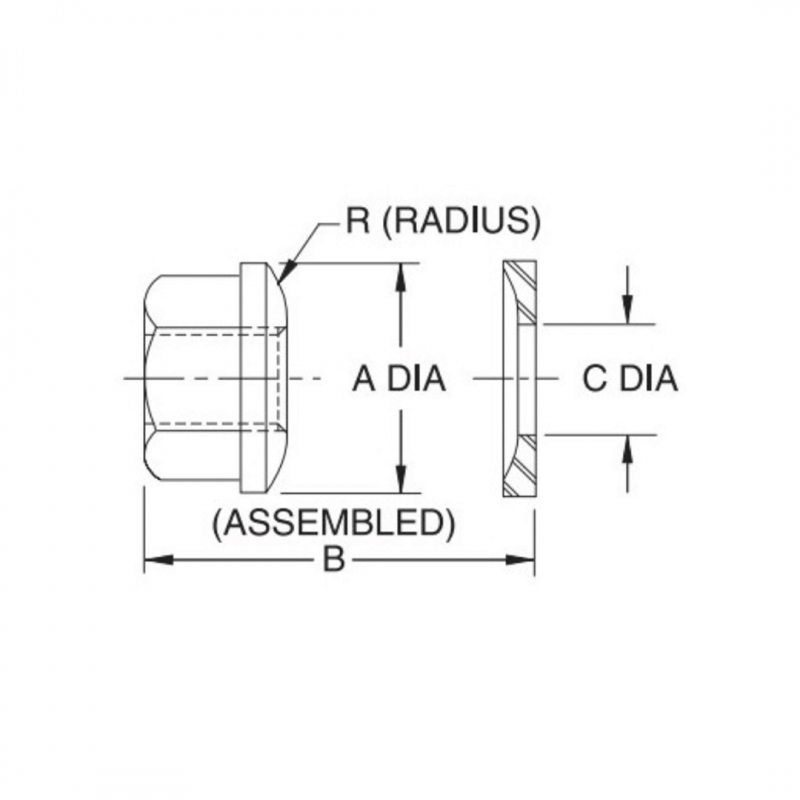

Carr Lane Spherical nuts and washers is a combination of a nut and washer designed to compensate when a stud and clamping surface aren't perfectly perpendicular. This heavy-hex nut is similar to a Flange Nut but features a convex spherical radius underneath. The washer has a corresponding concave spherical radius to the nut. These are available in steel with thread sizes ranging from 1/4-20 to 1"-8 (M6 to M24 in metric), and in stainless steel with thread ranging sizes from 1/4-20 to 3/4-10.
| Part Number | Material Number | Metric or Imperial | Material | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CLM-8-SNW | Metric | Steel | M8 | £13.43 £16.12 Inc. VAT |
|
|
| CLM-10-SNW | Metric | Steel | M10 | £14.04 £16.85 Inc. VAT |
|
|
| CLM-12-SNW | Metric | Steel | M12 | £11.84 £14.21 Inc. VAT |
|
|
| CLM-16-SNW | Metric | Steel | M16 | £14.89 £17.87 Inc. VAT |
|
|
| CLM-20-SNW | Metric | Steel | M20 | £19.52 £23.42 Inc. VAT |
|
|
| CLM-24-SNW | Metric | Steel | M24 | £26.51 £31.81 Inc. VAT |
|
|
| CLM-6-SNW | Metric | Steel | M6 | £14.15 £16.98 Inc. VAT |
|
|
| CL-3-SNW-S | Imperial | Stainless Steel | 1/2-13 | £30.89 £37.07 Inc. VAT |
|
|
| CL-1-SNW | Imperial | Steel | 1/4-20 | £5.48 £6.58 Inc. VAT |
|
|
| CL-4-SNW | Imperial | Steel | 5/8-11 | £9.30 £11.16 Inc. VAT |
|
|
| CL-1-SNW-S | Imperial | Stainless Steel | 1/4-20 | £21.38 £25.66 Inc. VAT |
|
|
| CL-4-SNW-S | Imperial | Stainless Steel | 5/8-11 | £32.86 £39.43 Inc. VAT |
|
|
| CL-9-SNW | Imperial | Steel | 5/16-18 | £6.24 £7.49 Inc. VAT |
|
|
| CL-5-SNW | Imperial | Steel | 3/4-10 | £13.15 £15.78 Inc. VAT |
|
|
| CL-9-SNW-S | Imperial | Stainless Steel | 5/16-18 | £23.12 £27.74 Inc. VAT |
|
|
| CL-5-SNW-S | Imperial | Stainless Steel | 3/4-10 | £47.74 £57.29 Inc. VAT |
|
|
| CL-2-SNW | Imperial | Steel | 3/8-16 | £7.16 £8.59 Inc. VAT |
|
|
| CL-6-SNW | Imperial | Steel | 7/8-9 | £22.01 £26.41 Inc. VAT |
|
|
| CL-7-SNW | Imperial | Steel | 1"-8 | £20.89 £25.07 Inc. VAT |
|
|
| CL-2-SNW-S | Imperial | Stainless Steel | 3/8-16 | £29.39 £35.27 Inc. VAT |
|
|
| CL-3-SNW | Imperial | Steel | 1/2-13 | £7.26 £8.71 Inc. VAT |
|
Carr Lane Spherical nuts and washers is a combination of a nut and washer designed to compensate when a stud and clamping surface aren't perfectly perpendicular. This heavy-hex nut is similar to a Flange Nut but features a convex spherical radius underneath. The washer has a corresponding concave spherical radius to the nut. These are available in steel with thread sizes ranging from 1/4-20 to 1"-8 (M6 to M24 in metric), and in stainless steel with thread ranging sizes from 1/4-20 to 3/4-10.
