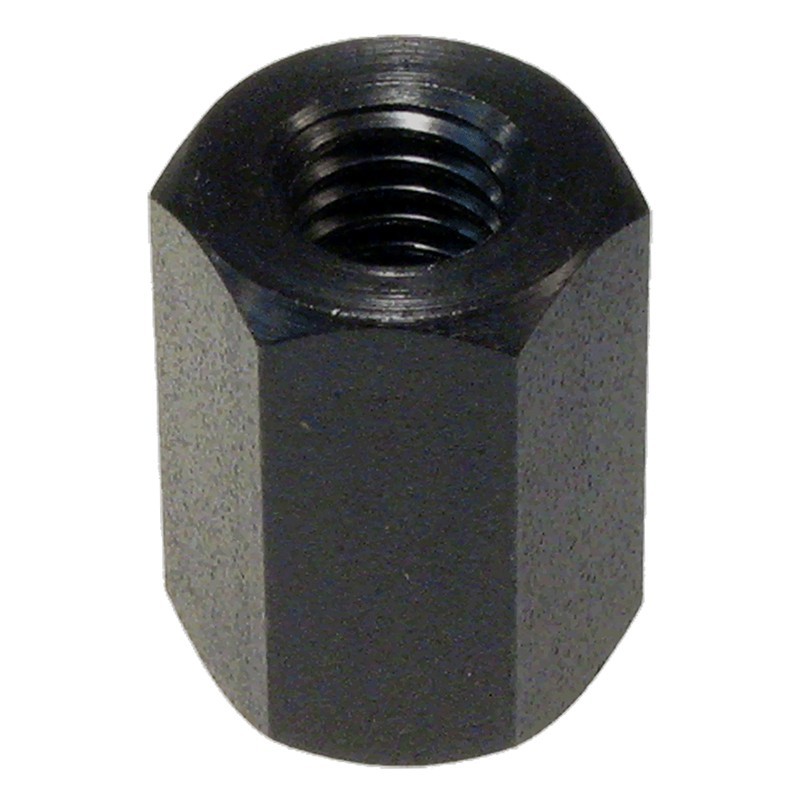

Carr lanes coupling nuts are manufactured as extra-tall heavy-hex nuts, which are designed for connecting two studs, effectively creating an extended, extra-long stud. It is available in a wide range of thread sizes, from 1/4-20 to 1"-8, as well as metric sizes from M6 to M20, offering versatile options for various applications.
| Part Number | Material Number | Metric or Imperial | External Diameter | Length | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-20-CN | Metric | 30mm | 1.97 | M20 | £18.02 £21.62 Inc. VAT |
|
|
| CLM-8-CN | Metric | 13mm | .79 | M8 | £7.34 £8.81 Inc. VAT |
|
|
| CLM-12-CN | Metric | 19mm | 1.18 | M12 | On Enquiry | ||
| CLM-6-CN | Metric | 10mm | .71 | M6 | On Enquiry | ||
| CLM-10-CN | Metric | 17mm | .98 | M10 | £7.50 £9.00 Inc. VAT |
|
|
| CLM-16-CN | Metric | 24mm | 1.57 | M16 | £11.45 £13.74 Inc. VAT |
|
|
| CL-4-CN | Imperial | 1-1/4 | 1-7/8 | 3/4-10 | On Enquiry | ||
| CL-00-CN | Imperial | 9/16 | 7/8 | 5/16-18 | On Enquiry | ||
| CL-2-CN | Imperial | 7/8 | 1-1/4 | 1/2-13 | On Enquiry | ||
| CL-3-CN | Imperial | 1-1/16 | 1-5/8 | 5/8-11 | On Enquiry | ||
| CL-1-CN | Imperial | 11/16 | 1 | 3/8-16 | On Enquiry | ||
| CL-0-CN | Imperial | 1/2 | 5/8 | 1/4-20 | On Enquiry | ||
| CL-6-CN | Imperial | 1-5/8 | 2-1/2 | 1"-8 | On Enquiry |
Carr lanes coupling nuts are manufactured as extra-tall heavy-hex nuts, which are designed for connecting two studs, effectively creating an extended, extra-long stud. It is available in a wide range of thread sizes, from 1/4-20 to 1"-8, as well as metric sizes from M6 to M20, offering versatile options for various applications.
| Quantity | Unit discount | You Save |
|---|
Carr Lane fixture studs are designed with a thread-locking interference thread at the bottom end to install in a fixture plate on a permanent basis. These small sizes are manufactured precisely and especially for mini sizes stainless clamp straps. These fixture studs are available in thread sizes from #10-32 to 3/8-16 with a range of lengths to choose from.
Carr Lane’s highly durable standard clamping studs are designed to be used with a T nut or to be directly installed into a fixture plate. These are available in both steel and stainless-steel variants with thread sizes ranging from 1/4-20 to 1"-8 (M6 to M20 in metric). A wide range of lengths are available for these clamping studs.
Carr Lane fully threaded studs are ideal for creating custom assemblies with thread-locking adhesives, such as stud-type hand knobs and cushion spindles for toggle clamps. These are manufactured from 316 stainless steel to offer excellent corrosion resistance. Fully threaded studs are available in thread sizes ranging from #10-32 to 1/2-13 (M5 to M10 in metric). Carr Lane also offer larger sizes for use as clamping studs in forged adjustable clamps. These larger studs are manufactured from high-carbon steel with sizes that range from 5/16-18 to 1"-8 (M8 to M24 in metric).
