Carr Lane Standard Steel Swivel Hoist Ring

Carr Lane Swivel Hoist Rings

The original safety-engineered Hoist Ring, with a choice of Standard or Long Ring

Load Rating: 550 - 110,000 (lbs)
Installation Torque: 5 - 7150 (lbs)
Long-ring version provides extra reach and allows using larger lifting hooks

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Standard Ring

Long Ring

Downloads

Description

Part Number	Type	Metric or Imperial	Material	Thread	Thread Length	Price
CL-1250-SHR-3-S CL-1250-SHR-3-S	Standard Ring	Imperial	Stainless Steel	1/2-13	1.28	£420.78 £504.94 Inc. VAT
CL-7000-SHR-1 CL-7000-SHR-1	Standard Ring	Imperial	Steel	3/4-10	1.03	£325.01 £390.01 Inc. VAT
CLM-4000-SHR-2 CLM-4000-SHR-2	Standard Ring	Metric	Steel	M16	1.13	£148.70 £178.44 Inc. VAT
CL-29103-SHR-S CL-29103-SHR-S	Standard Ring	Imperial	Stainless Steel	3/4-10	1.54	£715.55 £858.66 Inc. VAT
CL-10000-SHR-1 CL-10000-SHR-1	Standard Ring	Imperial	Steel	1"-8	1.28	£369.70 £443.64 Inc. VAT
CLM-10000-SHR-1 CLM-10000-SHR-1	Standard Ring	Metric	Steel	M30	2.12	£369.70 £443.64 Inc. VAT
CLM-1150-SHR-1-S CLM-1150-SHR-1-S	Standard Ring	Metric	Stainless Steel	M12	.75	£393.24 £471.89 Inc. VAT
CLM-29840-SHR-S CLM-29840-SHR-S	Standard Ring	Metric	Stainless Steel	M30	1.81	£1,393.51 £1,672.21 Inc. VAT
CL-800-SHR-1 CL-800-SHR-1	Standard Ring	Imperial	Steel	5/16-18	.29	£124.08 £148.90 Inc. VAT
CL-2500-SHR-1 CL-2500-SHR-1	Standard Ring	Imperial	Steel	1/2-13	0.77	£148.70 £178.44 Inc. VAT
CL-500-SHR-1-S CL-500-SHR-1-S	Standard Ring	Imperial	Stainless Steel	3/8-16	.54	£325.01 £390.01 Inc. VAT
CL-4000-SHR-2 CL-4000-SHR-2	Standard Ring	Imperial	Steel	5/8-11	1.02	£151.25 £181.50 Inc. VAT
CL-23501-SHR CL-23501-SHR	Standard Ring	Imperial	Steel	2-1/2"-8	4.00	£0.00 £0.00 Inc. VAT
CLM-24060-SHR CLM-24060-SHR	Standard Ring	Metric	Steel	M64	4.02	£0.00 £0.00 Inc. VAT
CLM-29850-SHR-S CLM-29850-SHR-S	Standard Ring	Metric	Stainless Steel	M36	2.72	£2,003.20 £2,403.84 Inc. VAT
CL-29105-SHR-S CL-29105-SHR-S	Standard Ring	Imperial	Stainless Steel	1"/8	1.29	£739.38 £887.26 Inc. VAT
CL-29202-SHR-S CL-29202-SHR-S	Standard Ring	Imperial	Stainless Steel	1-1/2"-6	2.70	£2,003.20 £2,403.84 Inc. VAT
CL-2500-SHR-2 CL-2500-SHR-2	Standard Ring	Imperial	Steel	1/2-13	1.02	£148.70 £178.44 Inc. VAT
CL-29301-SHR-S CL-29301-SHR-S	Standard Ring	Imperial	Stainless Steel	1/2-13	1.07	£448.34 £538.01 Inc. VAT
CL-4000-SHR-3 CL-4000-SHR-3	Standard Ring	Imperial	Steel	5/8-11	1.27	£151.25 £181.50 Inc. VAT
CLM-800-SHR-2 CLM-800-SHR-2	Standard Ring	Metric	Steel	M8	.66	£127.56 £153.07 Inc. VAT
CL-2000-SHR-1-S CL-2000-SHR-1-S	Standard Ring	Imperial	Stainless Steel	5/8-11	.78	£399.91 £479.89 Inc. VAT
CL-7000-SHR-2 CL-7000-SHR-2	Standard Ring	Imperial	Steel	3/4-10	1.53	£334.66 £401.59 Inc. VAT
CLM-24020-SHR CLM-24020-SHR	Standard Ring	Metric	Steel	M20	1.18	£171.54 £205.85 Inc. VAT
CL-29101-SHR-S CL-29101-SHR-S	Standard Ring	Imperial	Stainless Steel	7/8-9	1.04	£715.55 £858.66 Inc. VAT
CL-10000-SHR-2 CL-10000-SHR-2	Standard Ring	Imperial	Steel	1"-8	1.53	£325.96 £391.15 Inc. VAT
CLM-15000-SHR-1 CLM-15000-SHR-1	Standard Ring	Metric	Steel	M30	1.81	£585.28 £702.34 Inc. VAT
CL-29401-SHR-S CL-29401-SHR-S	Standard Ring	Imperial	Stainless Steel	1-1/4"-7	1.89	£1,393.51 £1,672.21 Inc. VAT
CLM-29822-SHR-S CLM-29822-SHR-S	Standard Ring	Metric	Stainless Steel	M20	1.14	£715.55 £858.66 Inc. VAT
CLM-29842-SHR-S CLM-29842-SHR-S	Standard Ring	Metric	Stainless Steel	M30	2.60	£1,393.51 £1,672.21 Inc. VAT
CL-800-SHR-2 CL-800-SHR-2	Standard Ring	Imperial	Steel	5/16-18	.54	£124.08 £148.90 Inc. VAT
CL-29106-SHR-S CL-29106-SHR-S	Standard Ring	Imperial	Stainless Steel	1"/8	1.54	£739.38 £887.26 Inc. VAT
CLM-24000-SHR-1 CLM-24000-SHR-1	Standard Ring	Metric	Steel	M36	2.72	£764.84 £917.81 Inc. VAT
CL-29200-SHR-S CL-29200-SHR-S	Standard Ring	Imperial	Stainless Steel	2"-4-1/2	2.96	£2,131.07 £2,557.28 Inc. VAT
CL-23600-SHR CL-23600-SHR	Standard Ring	Imperial	Steel	3"-4	5.20	£0.00 £0.00 Inc. VAT
CLM-29852-SHR-S CLM-29852-SHR-S	Standard Ring	Metric	Stainless Steel	M42	3.11	£2,131.07 £2,557.28 Inc. VAT
CLM-24062-SHR CLM-24062-SHR	Standard Ring	Metric	Steel	M72	5.20	£0.00 £0.00 Inc. VAT
CLM-29824-SHR-S CLM-29824-SHR-S	Standard Ring	Metric	Stainless Steel	M24	1.34	£715.55 £858.66 Inc. VAT
CL-1000-SHR-1 CL-1000-SHR-1	Standard Ring	Imperial	Steel	3/8-16	.54	£124.08 £148.90 Inc. VAT
CL-275-SHR-1-S CL-275-SHR-1-S	Standard Ring	Imperial	Stainless Steel	1/4-20	.54	£325.01 £390.01 Inc. VAT
CL-2500-SHR-3 CL-2500-SHR-3	Standard Ring	Imperial	Steel	1/2-13	1.27	£148.70 £178.44 Inc. VAT
CL-1250-SHR-1-S CL-1250-SHR-1-S	Standard Ring	Imperial	Stainless Steel	1/2-13	.78	£393.24 £471.89 Inc. VAT
CL-5000-SHR-1 CL-5000-SHR-1	Standard Ring	Imperial	Steel	3/4-10	1.02	£151.25 £181.50 Inc. VAT
CLM-1000-SHR-1 CLM-1000-SHR-1	Standard Ring	Metric	Steel	M10	.66	£124.08 £148.90 Inc. VAT
CL-2500-SHR-1-S CL-2500-SHR-1-S	Standard Ring	Imperial	Stainless Steel	3/4-10	1.03	£399.91 £479.89 Inc. VAT
CL-8000-SHR-1 CL-8000-SHR-1	Standard Ring	Imperial	Steel	7/8-9	1.03	£325.01 £390.01 Inc. VAT
CLM-7000-SHR-2 CLM-7000-SHR-2	Standard Ring	Metric	Steel	M20	1.26	£324.91 £389.89 Inc. VAT
CLM-440-SHR-2-S CLM-440-SHR-2-S	Standard Ring	Metric	Stainless Steel	M8	.67	£368.62 £442.34 Inc. VAT
CL-10000-SHR-3 CL-10000-SHR-3	Standard Ring	Imperial	Steel	1"-8	2.28	£325.96 £391.15 Inc. VAT
CLM-24042-SHR CLM-24042-SHR	Standard Ring	Metric	Steel	M30	2.60	£585.28 £702.34 Inc. VAT
CL-29107-SHR-S CL-29107-SHR-S	Standard Ring	Imperial	Stainless Steel	1"/8	2.29	£739.38 £887.26 Inc. VAT
CL-24000-SHR-1 CL-24000-SHR-1	Standard Ring	Imperial	Steel	1-1/2"-6	2.70	£764.84 £917.81 Inc. VAT
CLM-27000-SHR-1 CLM-27000-SHR-1	Standard Ring	Metric	Steel	M42	3.11	£900.92 £1,081.10 Inc. VAT
CL-29503-SHR-S CL-29503-SHR-S	Standard Ring	Imperial	Stainless Steel	2-1/2"-4	4.00	£0.00 £0.00 Inc. VAT
CLM-29854-SHR-S CLM-29854-SHR-S	Standard Ring	Metric	Stainless Steel	M48	3.11	£2,131.07 £2,557.28 Inc. VAT
CL-8000-SHR-2 CL-8000-SHR-2	Standard Ring	Imperial	Steel	7/8-9	1.53	£336.29 £403.55 Inc. VAT
CLM-9000-SHR-2 CLM-9000-SHR-2	Standard Ring	Metric	Steel	M24	1.46	£324.91 £389.89 Inc. VAT
CLM-500-SHR-1-S CLM-500-SHR-1-S	Standard Ring	Metric	Stainless Steel	M10	.67	£368.62 £442.34 Inc. VAT
CL-15000-SHR-1 CL-15000-SHR-1	Standard Ring	Imperial	Steel	1-1/4"-7	1.89	£585.28 £702.34 Inc. VAT
CLM-29830-SHR-S CLM-29830-SHR-S	Standard Ring	Metric	Stainless Steel	M30	2.13	£739.38 £887.26 Inc. VAT
CL-550-SHR-2 CL-550-SHR-2	Standard Ring	Imperial	Steel	1/4-20	.54	£124.08 £148.90 Inc. VAT
CL-23301-SHR CL-23301-SHR	Standard Ring	Imperial	Steel	1/2-13	1.07	£169.56 £203.47 Inc. VAT
CL-400-SHR-2-S CL-400-SHR-2-S	Standard Ring	Imperial	Stainless Steel	5/16-18	.54	£325.01 £390.01 Inc. VAT
CL-4000-SHR-1 CL-4000-SHR-1	Standard Ring	Imperial	Steel	5/8-11	.77	£151.25 £181.50 Inc. VAT
CL-1250-SHR-2-S CL-1250-SHR-2-S	Standard Ring	Imperial	Stainless Steel	1/2-13	1.03	£0.00 £0.00 Inc. VAT
CL-5000-SHR-2 CL-5000-SHR-2	Standard Ring	Imperial	Steel	3/4-10	1.52	£151.25 £181.50 Inc. VAT
CLM-2500-SHR-1 CLM-2500-SHR-1	Standard Ring	Metric	Steel	M12	.74	£148.70 £178.44 Inc. VAT
CL-29102-SHR-S CL-29102-SHR-S	Standard Ring	Imperial	Stainless Steel	3/4-10	1.04	£715.55 £858.66 Inc. VAT
CL-29501-SHR-S CL-29501-SHR-S	Standard Ring	Imperial	Stainless Steel	2-1/2"-8	4.00	£0.00 £0.00 Inc. VAT
CL-23503-SHR CL-23503-SHR	Standard Ring	Imperial	Steel	2-1/2"-4	4.00	£0.00 £0.00 Inc. VAT
CLM-30000-SHR-1 CLM-30000-SHR-1	Standard Ring	Metric	Steel	M48	3.11	£900.92 £1,081.10 Inc. VAT
CLM-29860-SHR-S CLM-29860-SHR-S	Standard Ring	Metric	Stainless Steel	M64	4.02	£0.00 £0.00 Inc. VAT

Part Number	Type	Metric or Imperial	Material	Thread	Thread Length	Price
CL-29331-SHR-S CL-29331-SHR-S	Long Ring	Imperial	Stainless Steel	1"-8	1.29	£911.10 £1,093.32 Inc. VAT
CL-23329-SHR CL-23329-SHR	Long Ring	Imperial	Steel	3/4-10	1.04	£391.16 £469.39 Inc. VAT
CL-23332-SHR CL-23332-SHR	Long Ring	Imperial	Steel	1"-8	1.54	£391.16 £469.39 Inc. VAT
CLM-24014-SHR CLM-24014-SHR	Long Ring	Metric	Steel	M12	.75	£186.72 £224.06 Inc. VAT
CLM-24026-SHR CLM-24026-SHR	Long Ring	Metric	Steel	M24	1.34	£391.16 £469.39 Inc. VAT
CL-29323-SHR-S CL-29323-SHR-S	Long Ring	Imperial	Stainless Steel	1/2-13	1.03	£529.34 £635.21 Inc. VAT
CL-29325-SHR-S CL-29325-SHR-S	Long Ring	Imperial	Stainless Steel	3/4-10	1.03	£529.34 £635.21 Inc. VAT
CL-23323-SHR CL-23323-SHR	Long Ring	Imperial	Steel	1/2-13	1.03	£186.72 £224.06 Inc. VAT
CL-23327-SHR CL-23327-SHR	Long Ring	Imperial	Steel	3/4-10	1.53	£186.72 £224.06 Inc. VAT
CLM-24032-SHR CLM-24032-SHR	Long Ring	Metric	Steel	M30	2.13	£391.16 £469.39 Inc. VAT
CL-29329-SHR-S CL-29329-SHR-S	Long Ring	Imperial	Stainless Steel	3/4-10	1.04	£911.10 £1,093.32 Inc. VAT
CL-29332-SHR-S CL-29332-SHR-S	Long Ring	Imperial	Stainless Steel	1"-8	1.54	£911.10 £1,093.32 Inc. VAT
CL-23330-SHR CL-23330-SHR	Long Ring	Imperial	Steel	3/4-10	1.54	£391.16 £469.39 Inc. VAT
CL-23333-SHR CL-23333-SHR	Long Ring	Imperial	Steel	1"-8	2.29	£391.16 £469.39 Inc. VAT
CLM-29818-SHR-S CLM-29818-SHR-S	Long Ring	Metric	Stainless Steel	M16	.94	£529.34 £635.21 Inc. VAT
CLM-24018-SHR CLM-24018-SHR	Long Ring	Metric	Steel	M16	.94	£186.72 £224.06 Inc. VAT
CL-23321-SHR CL-23321-SHR	Long Ring	Imperial	Steel	5/8-11	1.28	£186.72 £224.06 Inc. VAT
CL-29324-SHR-S CL-29324-SHR-S	Long Ring	Imperial	Stainless Steel	1/2-13	1.28	£529.34 £635.21 Inc. VAT
CL-29327-SHR-S CL-29327-SHR-S	Long Ring	Imperial	Stainless Steel	3/4-10	1.53	£529.34 £635.21 Inc. VAT
CL-23324-SHR CL-23324-SHR	Long Ring	Imperial	Steel	1/2-13	1.28	£186.72 £224.06 Inc. VAT
CL-29322-SHR-S CL-29322-SHR-S	Long Ring	Imperial	Stainless Steel	1/2-13	.78	£529.34 £635.21 Inc. VAT
CL-23322-SHR CL-23322-SHR	Long Ring	Imperial	Steel	1/2-13	.78	£186.72 £224.06 Inc. VAT
CL-29330-SHR-S CL-29330-SHR-S	Long Ring	Imperial	Stainless Steel	3/4-10	1.54	£911.10 £1,093.32 Inc. VAT
CL-29333-SHR-S CL-29333-SHR-S	Long Ring	Imperial	Stainless Steel	1"-8	2.29	£911.10 £1,093.32 Inc. VAT
CL-23328-SHR CL-23328-SHR	Long Ring	Imperial	Steel	7/8-9	1.04	£391.16 £469.39 Inc. VAT
CL-29320-SHR-S CL-29320-SHR-S	Long Ring	Imperial	Stainless Steel	5/8-11	1.03	£529.34 £635.21 Inc. VAT
CL-23320-SHR CL-23320-SHR	Long Ring	Imperial	Steel	5/8-11	1.03	£186.72 £224.06 Inc. VAT
CLM-24023-SHR CLM-24023-SHR	Long Ring	Metric	Steel	M20	1.14	£391.16 £469.39 Inc. VAT
CL-29328-SHR-S CL-29328-SHR-S	Long Ring	Imperial	Stainless Steel	7/8-9	1.04	£0.00 £0.00 Inc. VAT
CL-23331-SHR CL-23331-SHR	Long Ring	Imperial	Steel	1"-8	1.29	£391.16 £469.39 Inc. VAT
CLM-24021-SHR CLM-24021-SHR	Long Ring	Metric	Steel	M20	1.18	£186.72 £224.06 Inc. VAT
CL-29321-SHR-S CL-29321-SHR-S	Long Ring	Imperial	Stainless Steel	5/8-11	1.28	£529.34 £635.21 Inc. VAT
CL-23325-SHR CL-23325-SHR	Long Ring	Imperial	Steel	3/4-10	1.03	£186.72 £224.06 Inc. VAT

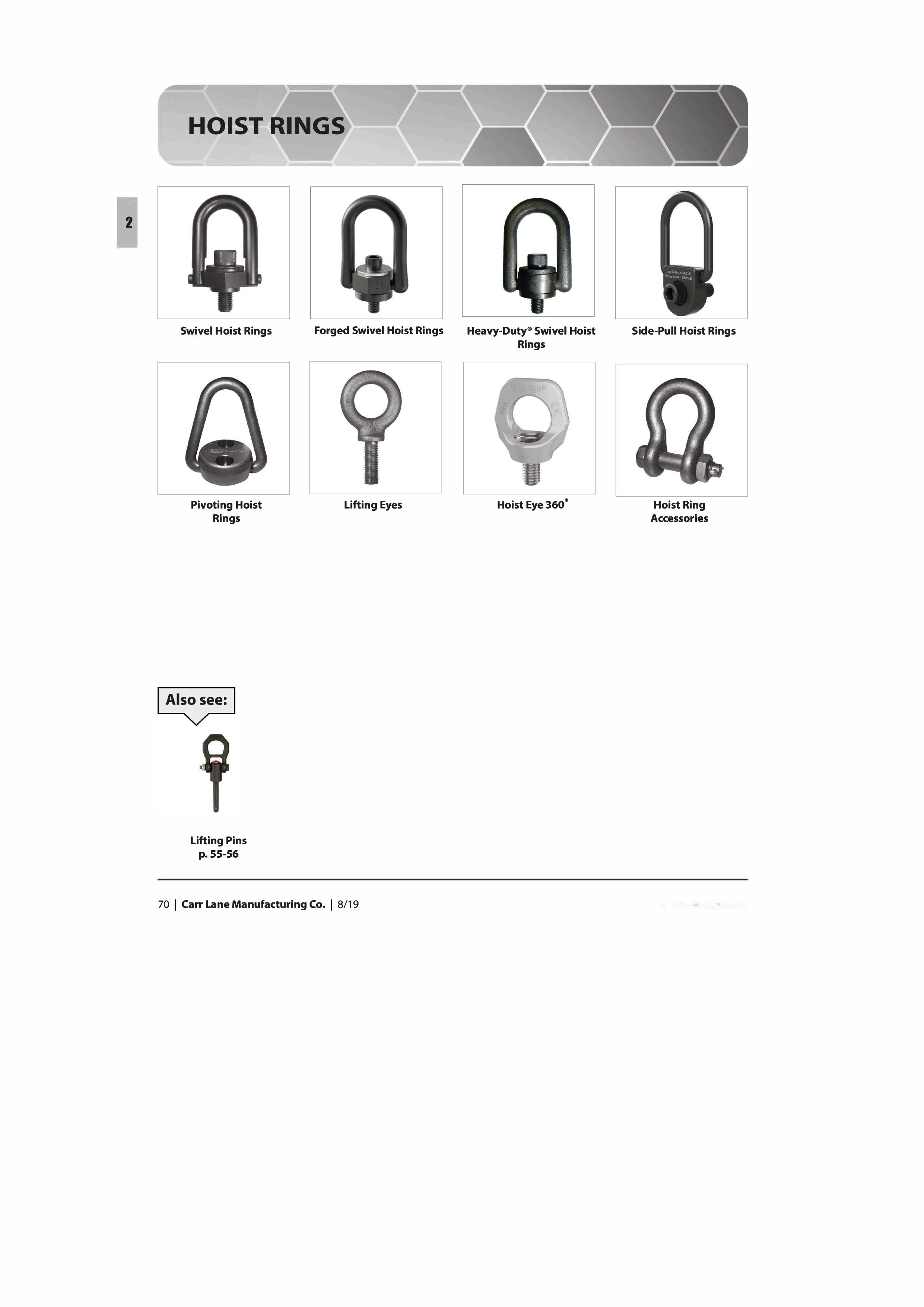

Carr Lane LXIV 8-19 HOIST RINGS DATASHEET

Carr Lane Swivel Hoist Rings

Load Rating: 550 - 110,000 (lbs)
Installation Torque: 5 - 7150 (lbs)
Long-ring version provides extra reach and allows using larger lifting hooks
Black oxide finish is standard, with cadmium plating available as a special (add -C to part number)
Swivel Hoist Rings are also available in 300-series stainless steel, with a load rating equal to 50% of the steel version. Patent no. 3,297,293, 4,705,422, and 5,848,815

Description:

The original safety-engineered hoist ring pivots 180° and swivels 360° simultaneously to allow lifting from any direction. Swivel Hoist Rings are also available in 300-series stainless steel, with a load rating equal to 50% of the steel version. Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Some hoist rings are available with a choice of bolt lengths. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.

Safety factor = 5:1.
