A8VO Series 61 & 63 Size 55 to 200
Variable double pump with two axial tapered piston rotary groups of bent-axis design for hydrostatic drives in open circuits
- Series 61 / 63
- Sizes 55...200
- Nominal pressure 350 bar
- Peak pressure 400 bar
- for open circuit
Description
Downloads

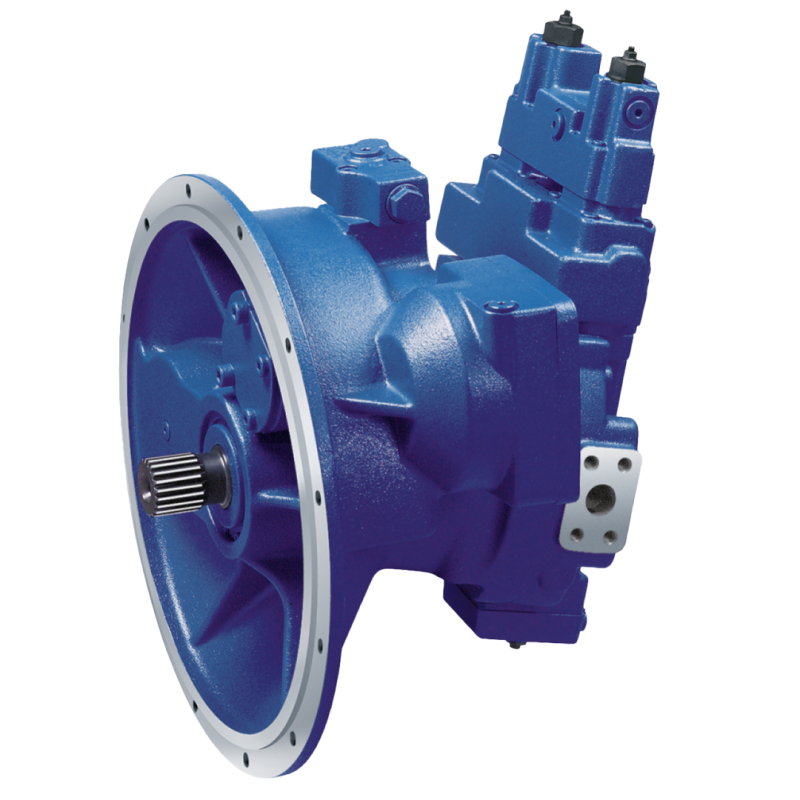

Bosch Rexroth Hydraulic Variable Displacement Axial Piston Pumps 55cc to 200cc
- Series 61 / 63
- Sizes 55...200
- Nominal pressure 350 bar
- Peak pressure 400 bar
- for open circuit
Features:
- The flow is proportional to the input speed and to the displacement, and is infinitely variable from qV max to qV min = 0
- The pump is suitable for direct mounting on the flywheel case in diesel engines
- One common suction port for auxiliary pump and both circuits
- A wide range of control instruments is available for different control and regulating functions
- Individual power controller
- Integrated auxiliary pump with pressure-relief valve, optionally with additional pressure-reduction valve
- Power take-off for mounting axial piston and gear pumps
- Excellent power to weight ratio
- Long service life
