Bosch Rexroth Variable Displacement Motors A10VE

A6VE Series 71 Size 60 to 280

Variable plug-in motor A6VE Series 71

  • High pressure motor for integration in mechanical gearbox
  • Sizes 60 to 280
  • Nominal pressure 450 bar
  • Maximum pressure 530 bar (sizes 60 to 215)
  • Maximum pressure 500 bar (size 280)
  • Open and closed circuit
Print page

Description
Downloads

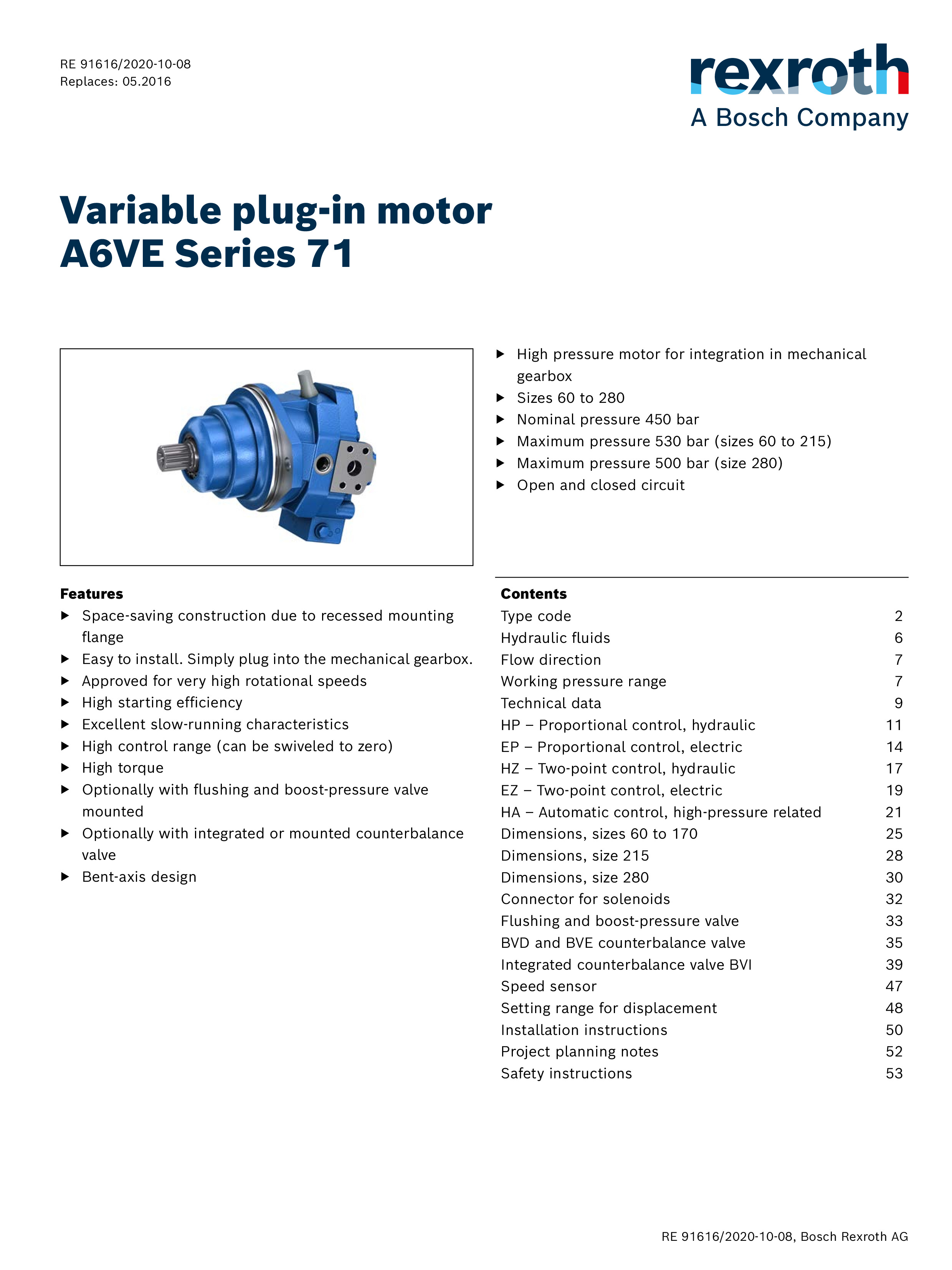

re91616_2020-10-08

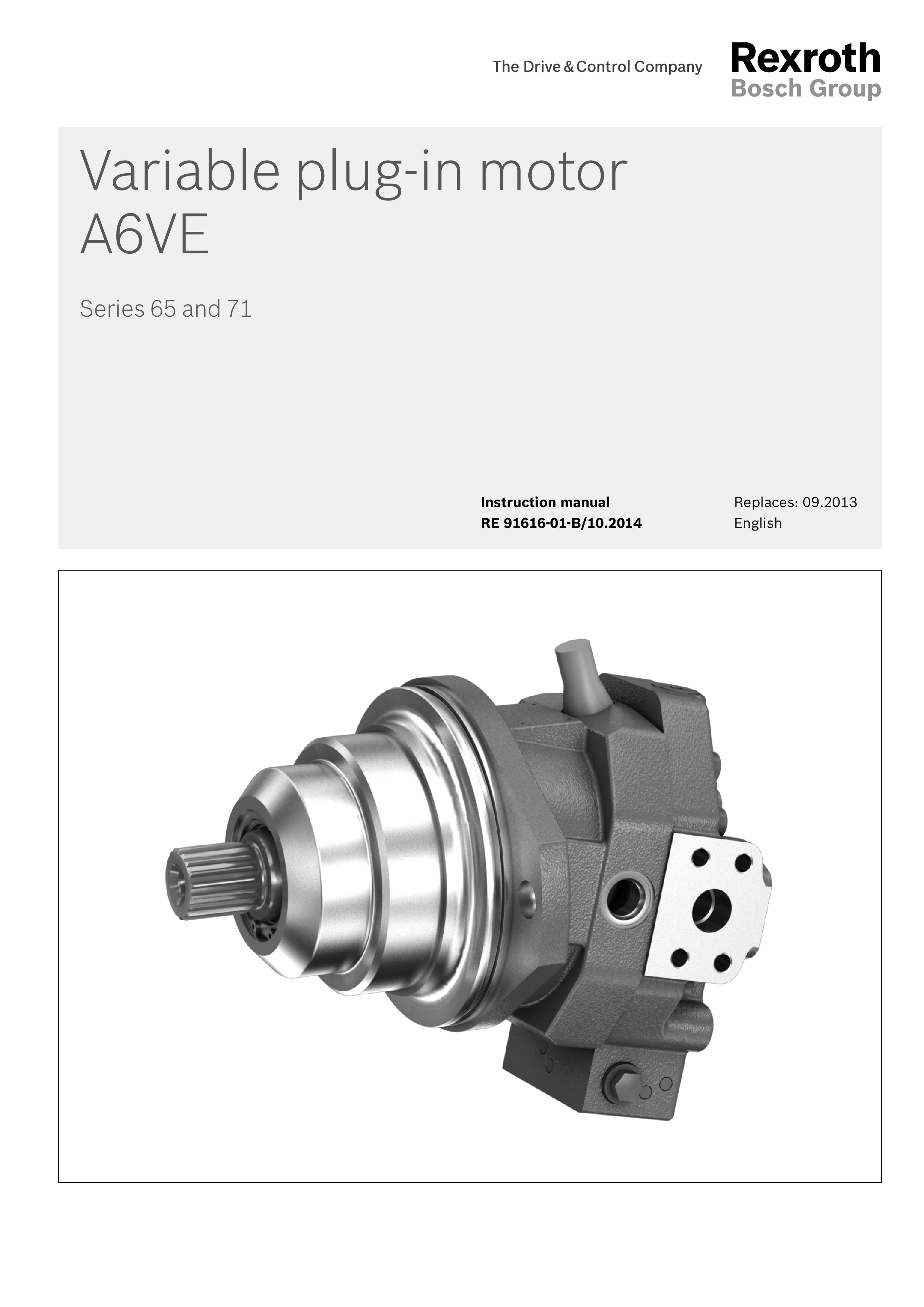

re91616-01-B_2014-10

Bosch Rexroth Hydraulic Variable Displacement Motors A6VE 28cc to 85cc

  • High pressure motor for integration in mechanical gearbox
  • Sizes 60 to 280
  • Nominal pressure 450 bar
  • Maximum pressure 530 bar (sizes 60 to 215)
  • Maximum pressure 500 bar (size 280)
  • Open and closed circuit

Features:

  • Space-saving construction due to recessed mounting flange
  • Easy to install. Simply plug into the mechanical gearbox.
  • Approved for very high rotational speeds
  • High starting efficiency
  • Excellent slow-running characteristics
  • High control range (can be swivelled to zero)
  • High torque
  • Optionally with flushing and boost-pressure valve mounted
  • Optionally with integrated or mounted counterbalance valve
  • Bent-axis design
