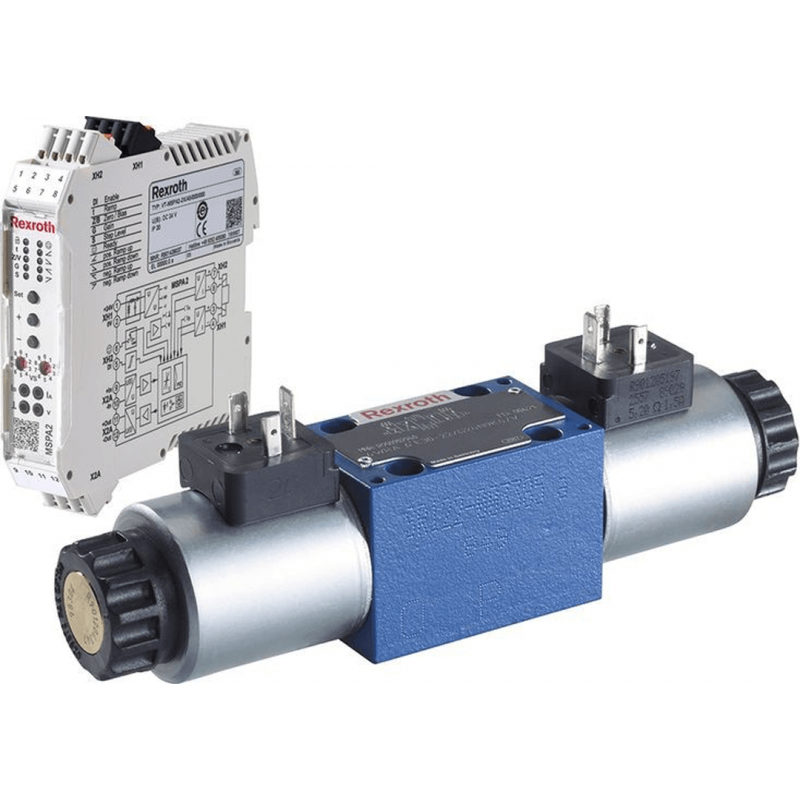

4WRA & 4WRAE Size 6 Series 3x
Proportional directional valve, direct operated, without electrical position feedback, with or without digital on-board electronics (OBED) Type 4WRA and 4WRAE
- Size 6
- Component series 3X
- Maximum operating pressure 350 bar
- Maximum flow 42 l/min
Description
Downloads
Bosch Rexroth proportional directional valve, direct operated (OBED) Type 4WRA and 4WRAE
- Size 6
- Component series 3X
- Maximum operating pressure 350 bar
- Maximum flow 42 l/min
Features:
- 4/2 or 4/3-way version
- For subplate mounting
- Porting pattern according to ISO 4401-03-02-0-05
- Control of flow direction and size
- Operation by means of proportional solenoids with central thread
- Spring-centered control spool
- Digital on-board electronics (OBED), optional
- CE conformity according to EMC Directive 2014/30/EU
- Digital (IO-Link, Bluetooth®) and analog interfaces, optional
- Optional via Bluetooth®, fast and easy analysis and structural adjustment by means of app function
