4WRTE Size 10 to 35 Series 4x

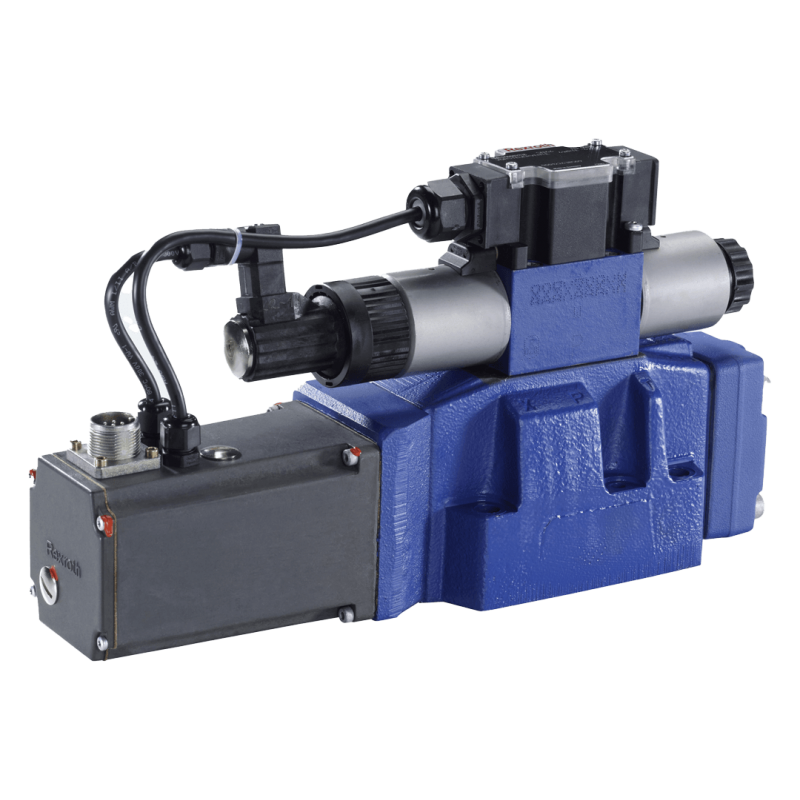

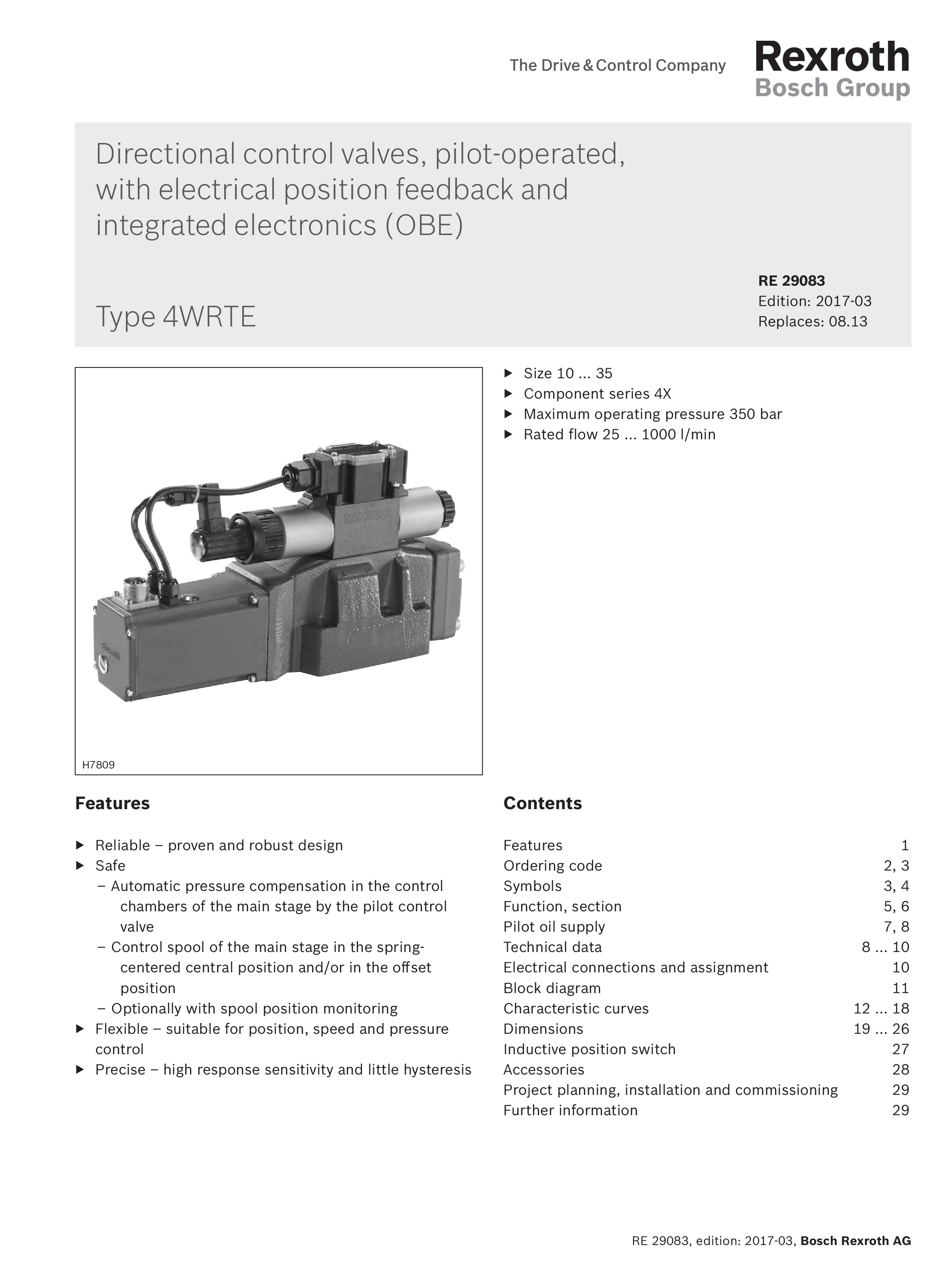

Bosch Rexroth Directional control valves, pilot-operated, (OBE) Type 4WRTE

• Size 10 … 35
• Component series 4X
• Maximum operating pressure 350 bar
• Rated flow 25 … 1000 l/min

Features:

• Reliable – proven and robust design
• Safe
• -Automatic pressure compensation in the control chambers of the main stage by the pilot control valve
• -Control spool of the main stage in the spring centered central position and/or in the offset position
• -Optionally with spool position monitoring
• Flexible – suitable for position, speed and pressure control
• Precise – high response sensitivity and little hysteresis
