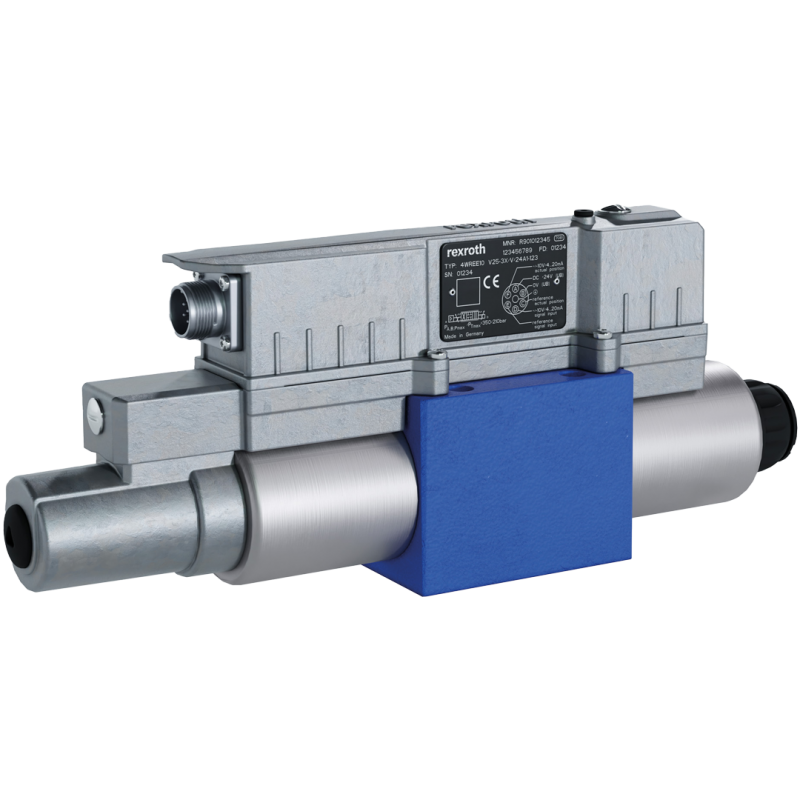

4WREE Size 10 Series 3x
Proportional directional control valves, direct operated, with electrical position feedback and integrated electronics (OBE) Type 4WREE
- Size 10
- Component series 3X
- Maximum operating pressure 350 bar
- Maximum flow 180 l/min
- Rated flow 25 … 75 l/min (Δp = 10 bar)
Description
Downloads
Bosch Rexroth Proportional directional control valves, direct operated, (OBE) Type 4WREE
- Size 10
- Component series 3X
- Maximum operating pressure 350 bar
- Maximum flow 180 l/min
- Rated flow 25 … 75 l/min (Δp = 10 bar)
Features:
- 4/3-way version
- For subplate mounting
- Porting pattern according to ISO 4401-05-04-0-05
- Control of flow direction and size
- Operation by means of proportional solenoids with central thread
- Spring-centered control spool
- Integrated control electronics (OBE) with voltage or current input ("A1", "A7" or "F1", "F7")
- CE conformity according to EMC Directive 2014/30/EU.
- UKCA conformity according to Electromagnetic Compatibility Regulations SI 2016/1091
