4WS2EM ...XL Size 10 Series 5x

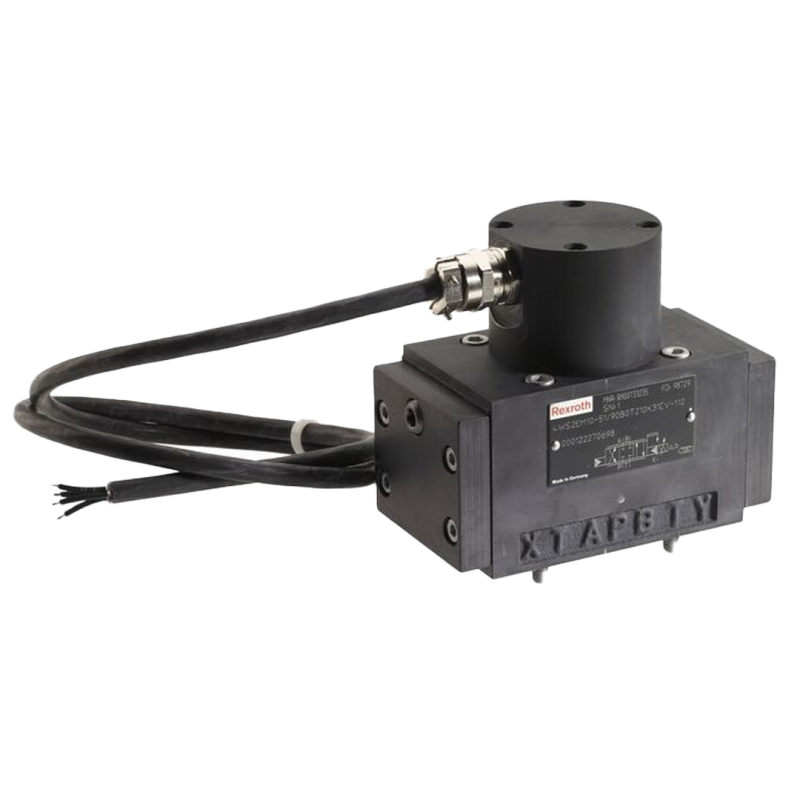

Bosch Rexroth Directional servo valve Type 4WS2EM ...XL

• Size 10
• Component series 5X
• Maximum operating pressure 315 bar
• Maximum flow 180 l/min

Features:

• 4 or 3-way version
• For intended use in potentially explosive atmosphere
• Valve for position, force, pressure or velocity control
• For subplate mounting
• Porting pattern according to ISO 4401-05-05-0-05
• Dry control motor, no contamination of the solenoid gaps by the hydraulic fluid
• Can also be used as 3-way version
• Wear-free control spool return element
• Pressure chambers at the control sleeve with gap seal, therefore no wear of seal ring
