4WS2EM …XH Size 10 Series 5x

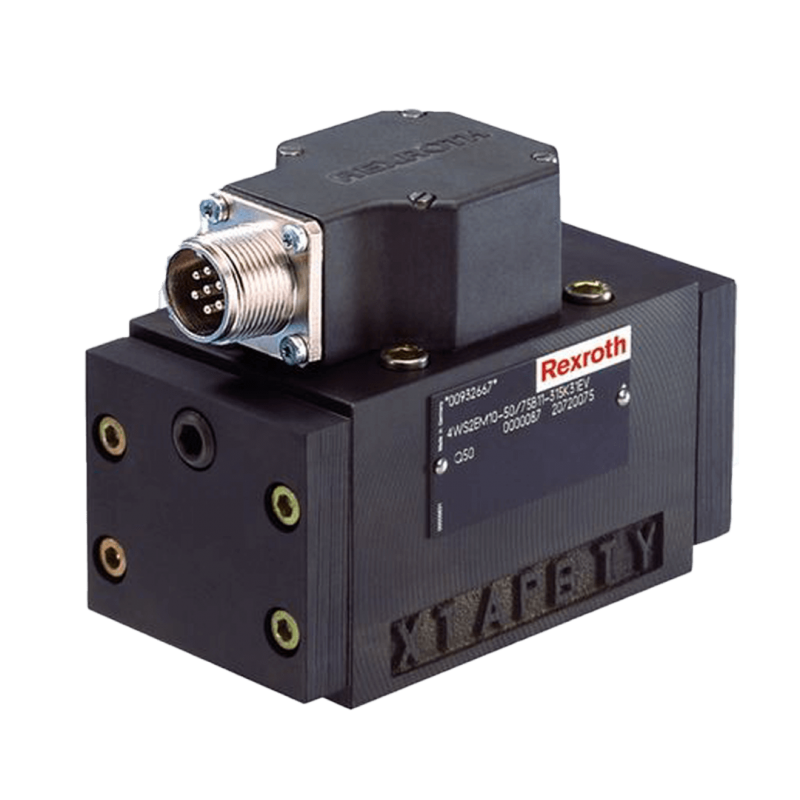

Bosch Rexroth Directional servo valve Type 4WS2EM …XH

• Size 10
• Component series 5X
• Maximum operating pressure 315 bar
• Maximum flow 180 l/min

Features:

• 4 or 3-way version
• For intended use in potentially explosive atmospheres of zone 0
• Subplate mounting
• Porting pattern according to 4401-05-05-0-05
• Dry control motor, no contamination of the solenoid gaps by the hydraulic fluid
• Wear-free control spool return element
• External control electronics in modular design, additional safety barrier
• Control spool with flow force compensation
• Control sleeve centrically fixed, thus low susceptibility to temperature and pressure
• Pressure chambers at the control sleeve with gap seal, no wear of seal ring
