4WS2EM...VH1...-100 Size 10 Series 5x

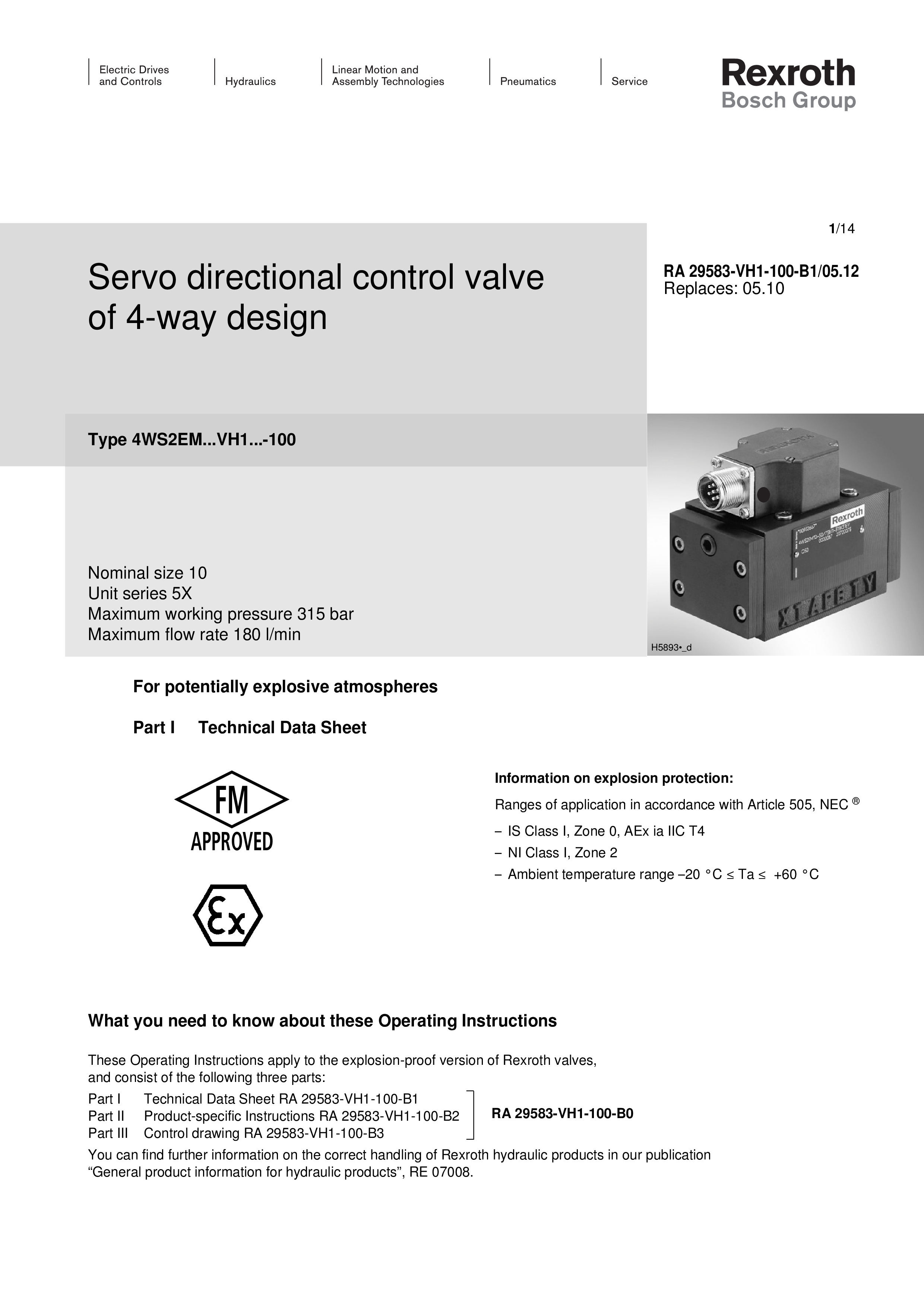

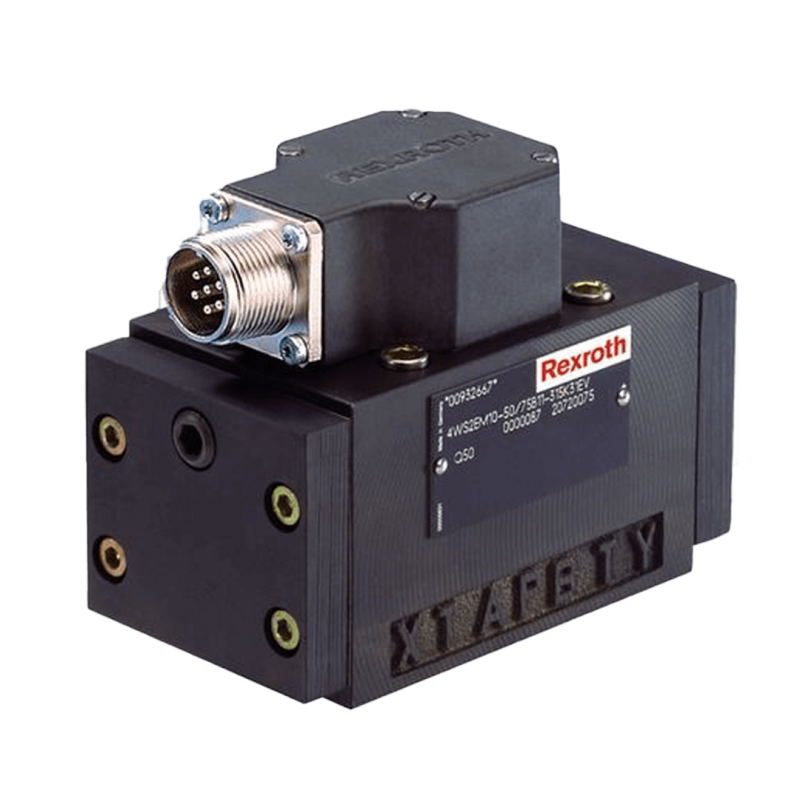

Bosch Rexroth Servo directional control valve of 4-way design Type 4WS2EM...VH1...-100

• Nominal size 10
• Unit series 5X
• Maximum working pressure 315 bar
• Maximum flow rate 180 l/min

Features:

• Servo directional control valve for proper use in potentially explosive atmospheres of Zone 0
• Valve for closed-loop position, force and speed control
• 2-Stage servo valve with mechanical feedback
• 1st stage in the form of flapper nozzle amplifier
• For subplate mounting, Mounting hole configuration to ISO 4401-05-05-0-05  with ports X and Y. Subplates, see page 12
• Dry servo motor, no contamination of solenoid gaps by pressure fluid
• Non-wearing spool return element
