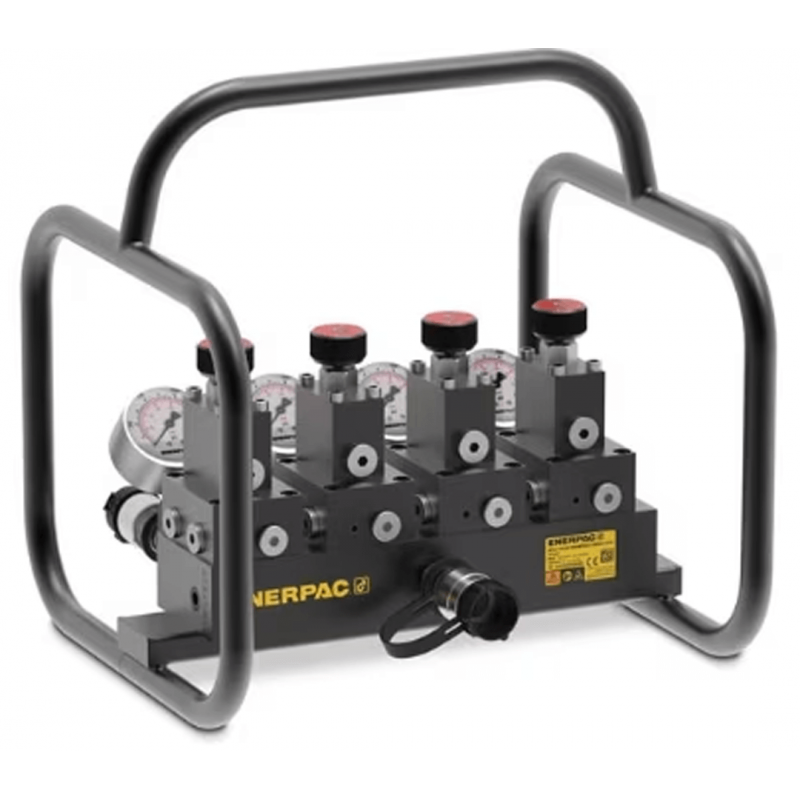

Enerpac SFM-Series, Split-Flow Manifolds
The SFM-Series offer an economical solution for basic multi-point simultaneous lifting applications and enables a single operator to control a maximum of 4 lifting points from one manifold.
- Inlet Connection: 1x power pump
- Outlet Connections: Max. 4 cylinders
- Minimum Pump Flow Required: 1,40 l/min
- Maximum Operating Pressure: 700 bar
Description

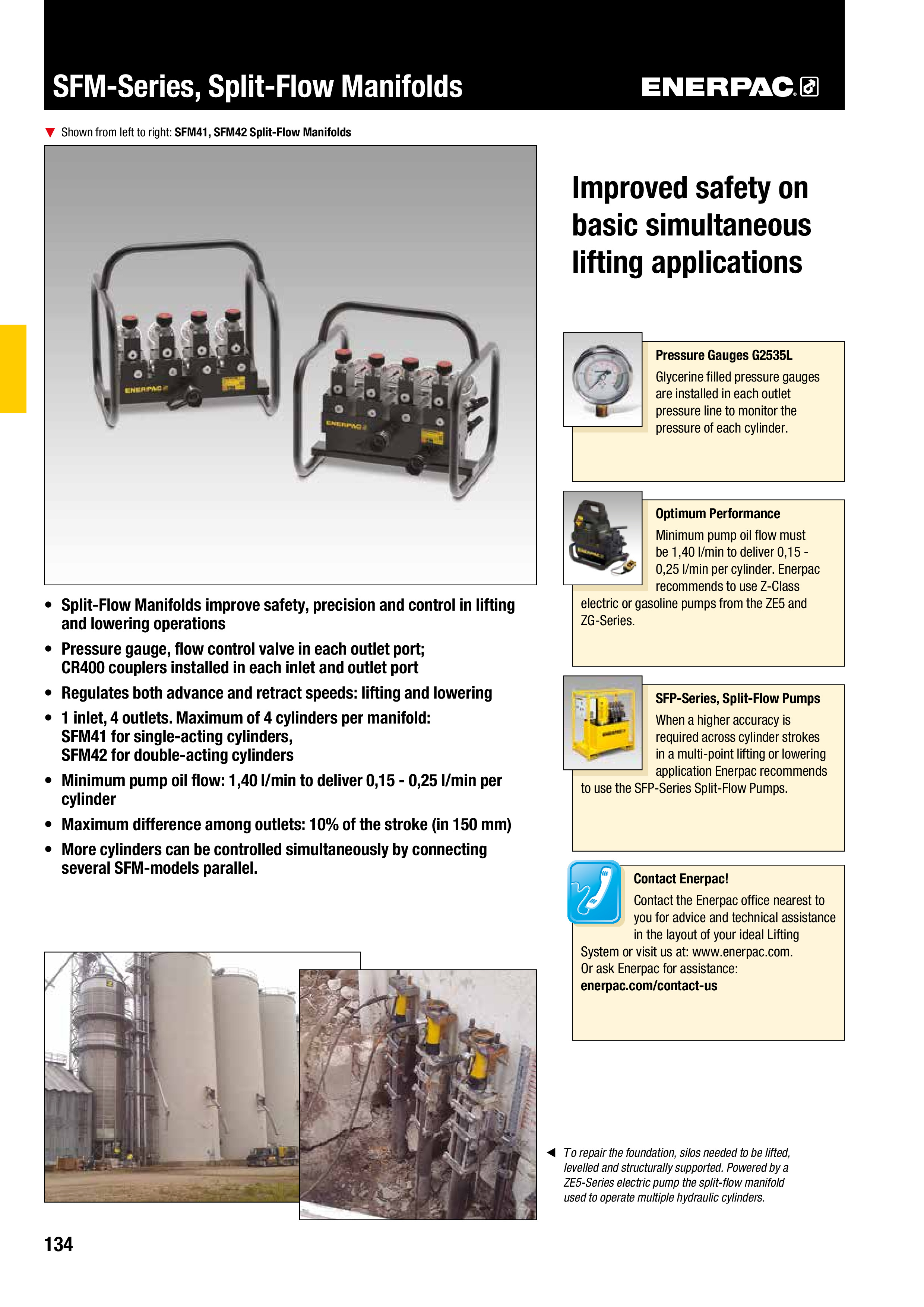

Downloads
Enerpac SFM-Series, Split-Flow Manifolds
- Inlet Connection: 1x power pump
- Outlet Connections: Max. 4 cylinders
- Minimum Pump Flow Required: 1,40 l/min
- Maximum Operating Pressure: 700 bar
Features:
- Split-Flow Manifolds improve safety, precision and control in lifting and lowering operations
- Pressure gauge, flow control valve in each outlet port; CR400 couplers installed in each inlet and outlet port
- Regulates both advance and retract speeds: lifting and lowering
- 1 inlet, 4 outlets. Maximum of 4 cylinders per manifold: SFM41 for single-acting cylinders, SFM42 for double-acting cylinders
- Minimum pump oil flow: 1,40 l/min to deliver 0,15 - 0,25 l/min per cylinder
- Maximum difference among outlets: 10% of the stroke (in 150 mm)
- More cylinders can be controlled simultaneously by connecting several SFM-models parallel.
