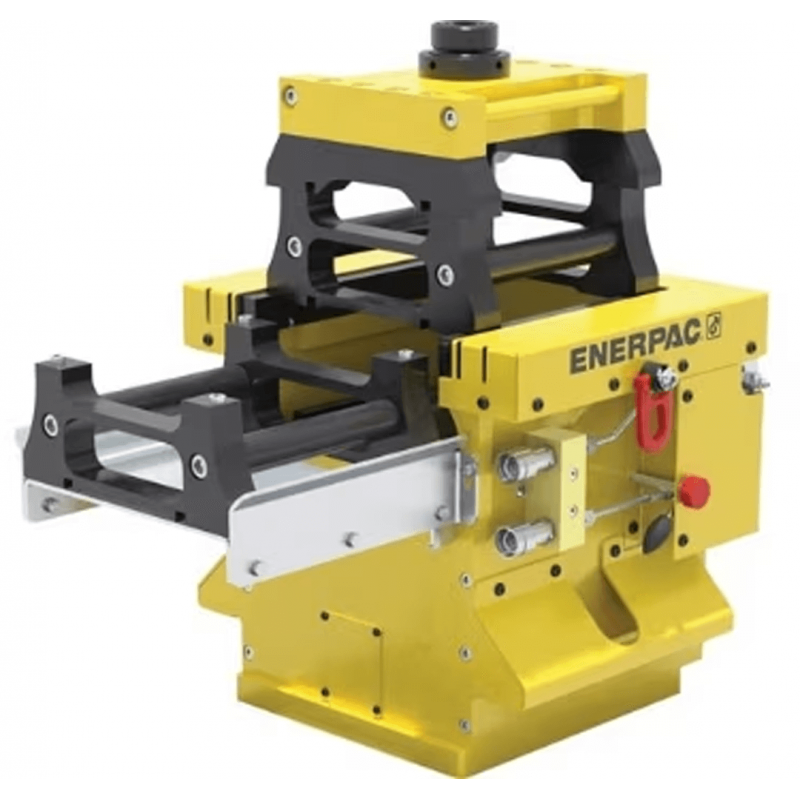

Enerpac SCJ-Series, Self-Locking Cube Jack
Easy-to-use, compact and portable jacking system that utilizes base lifting frames and self-aligning, lightweight steel cribbing blocks, instead of wooden cribbing materials.
- Capacity Per Cube Jack: 500 - 1000 kN
- Maximum Lifting Height: 2067 - 3006 mm
- Maximum Operating Pressure: 700 bar
Description
Downloads
Enerpac SCJ-Series, Self-Locking Cube Jack
- Capacity Per Cube Jack: 500 - 1000 kN
- Maximum Lifting Height: 2067 - 3006 mm
- Maximum Operating Pressure: 700 bar
Features:
- System is automatically mechanically locked after the lifting or lowering stroke
- Self-aligning steel cribbing blocks save time, improve side load, and eliminate the need for wooden cribbing materials
- Jobs are completed more efficiently due to simplified operation sequence with 50% less cycles than climbing jacks
- End block with adjustable swivel saddle allows fine adjustment during set-up: 50 mm screw extension
- Can be operated with Enerpac’s 700 bar hydraulic power units
- Lloyds witness tested to 125% of maximum working load.
