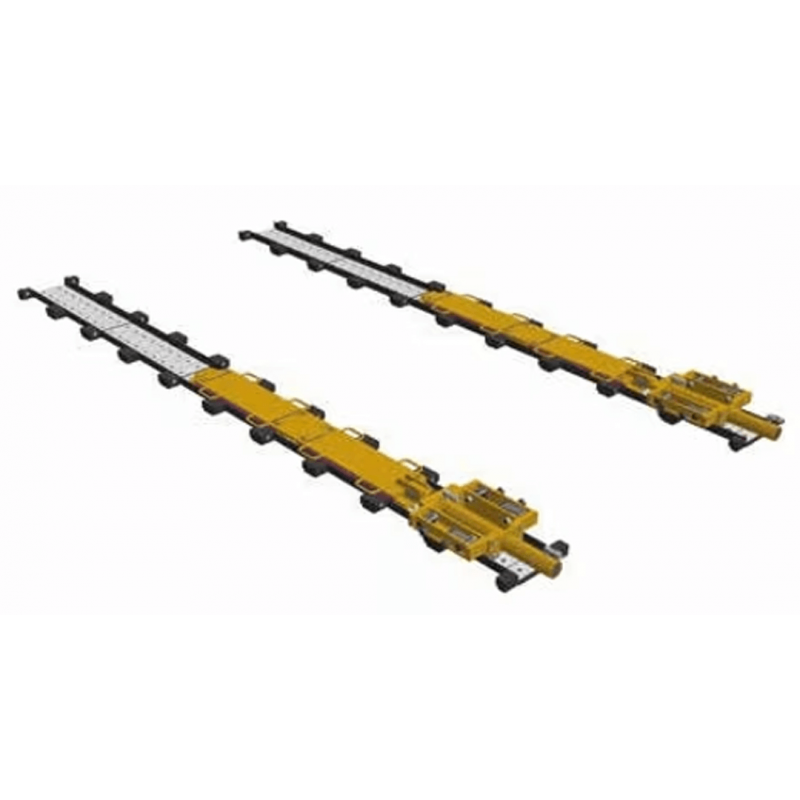

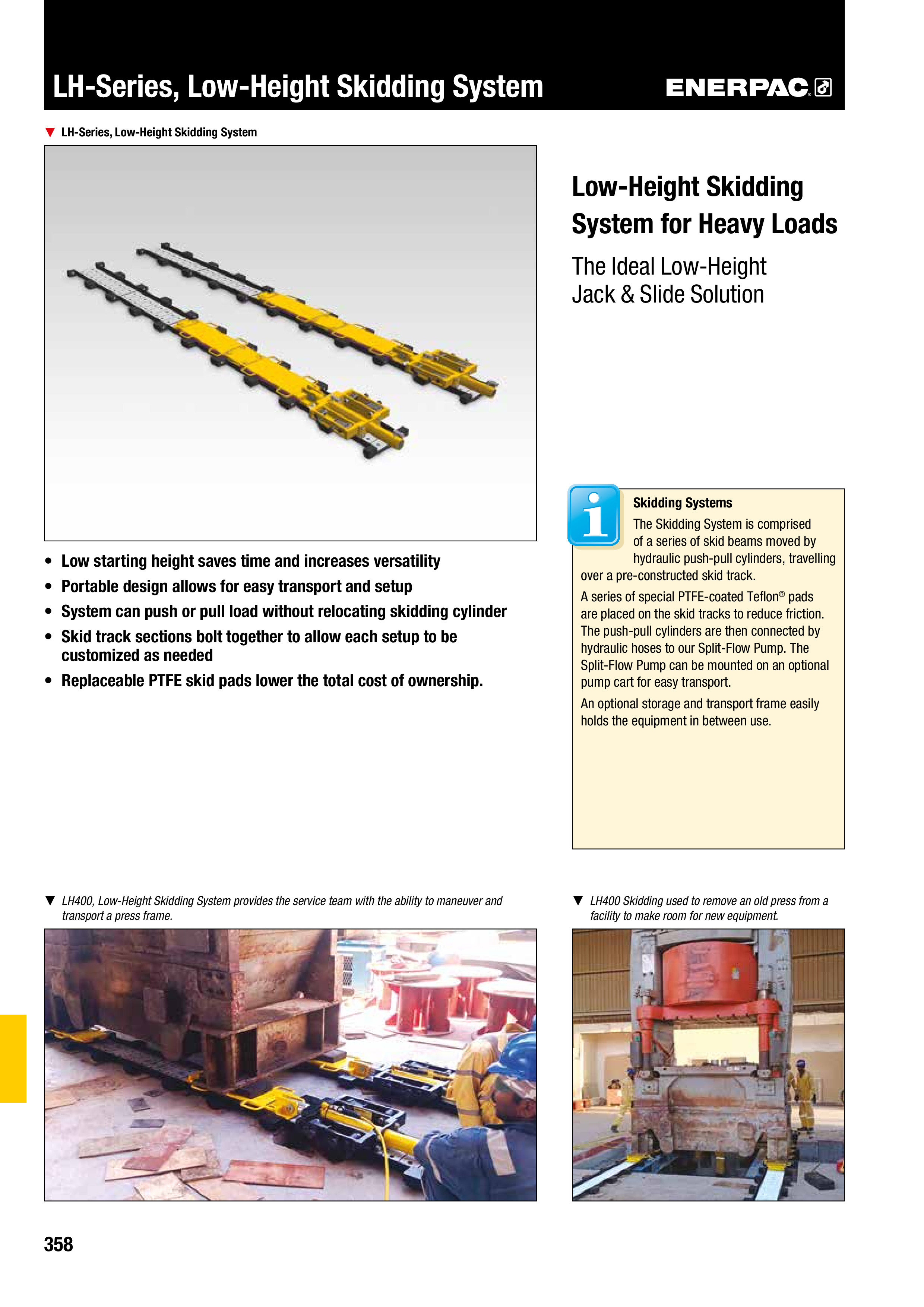

Enerpac LH-Series, Low-Height Skidding System
Skidding Systems The Skidding System is comprised of a series of skid beams moved by hydraulic push-pull cylinders, travelling over a pre-constructed skid track.
- Push-Pull Stroke: 600 mm
- Maximum Operating Pressure: 700 bar
- Skidding Capacity with two push-pull units: 3560 kN
Description
Downloads
Enerpac LH-Series, Low-Height Skidding System
- Push-Pull Stroke: 600 mm
- Maximum Operating Pressure: 700 bar
- Skidding Capacity with two push-pull units: 3560 kN
Features:
- Low starting height saves time and increases versatility
- Portable design allows for easy transport and setup
- System can push or pull load without relocating skidding cylinder
- Skid track sections bolt together to allow each setup to be customized as needed
- Replaceable PTFE skid pads lower the total cost of ownership.
